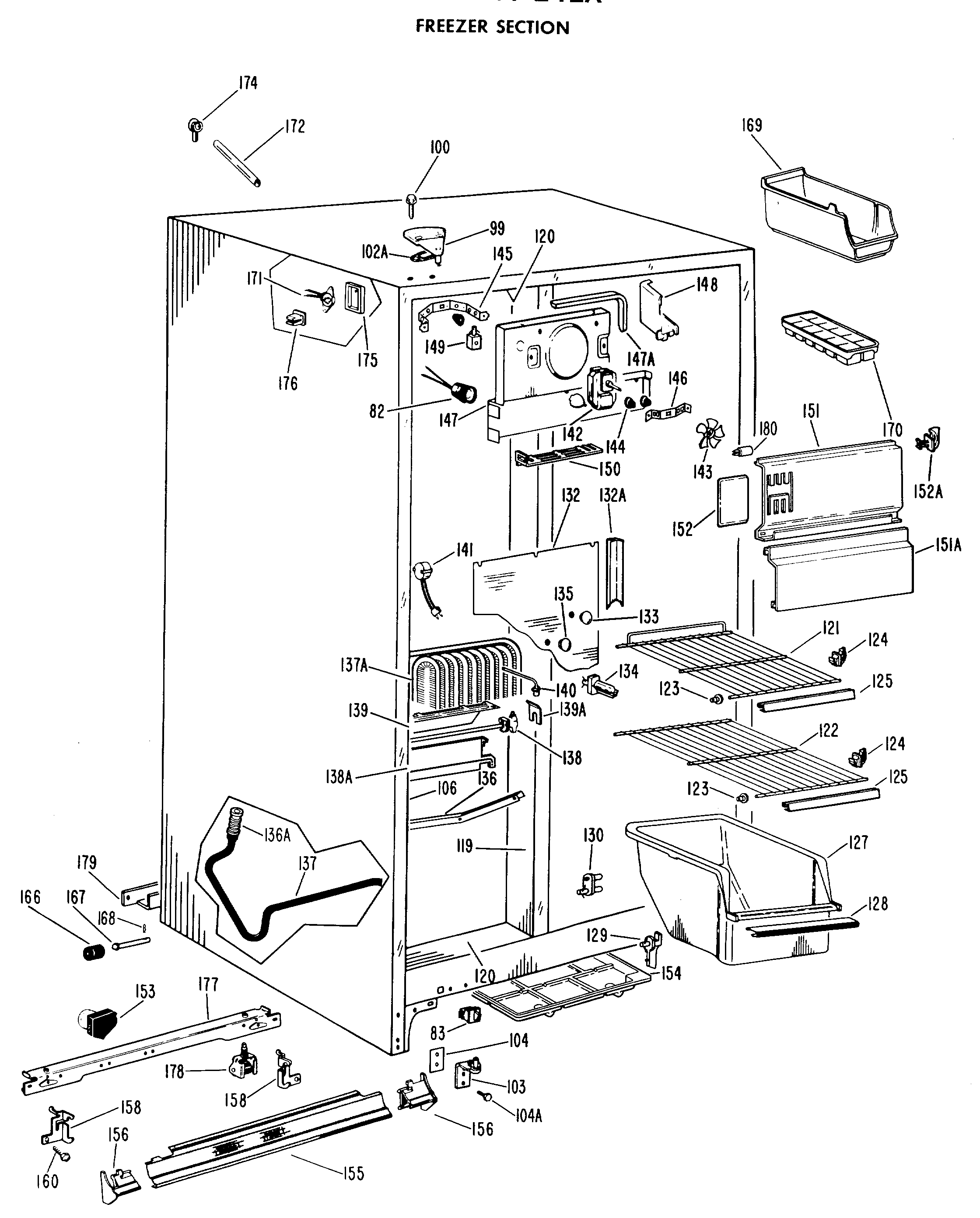

TFF24ZAC FREEZER SECTION

TFF24ZAC FREEZER SECTION

Written by

in

TFF24ZAC FREEZER SECTION

Products

PositionProduct
82SOCKET LAMP
82GEN WR02X4849
83WR23X37285 GE Light Switch
99HINGE TOP ASM
99NUTSTRIP TOP HINGE
100GEN WR01X1249
102GEN WR02X4194
103WR49X5124 GE Refrigerator Hinge and Cam Assembly
104SHIM HINGE BTM.
104NUT STRIP
104SCR 12-24 TT HXW 1 3/64S
104POP RIVET
106BREAKER STRIP-HINGE SIDE
106RETAINER BREAKER
119RETAINER BREAKER-BTM.
119BREAKER STRIP-FZ MULLION
120BREAKER STRIP-TOP & BTM.
120GEN WR02X4556
121GEN WR71X1515
122GEN WR71X1366
123GEN WR02X4676
124GEN WR02X4674
125GEN WR38X0957
125GEN WR02X4944
127GEN WR21X0119
129GEN WR02X7036
130GEN WR02X4548
132GEN WR17X1578
132SCR 8-32 T TR 1/2 SS XTW
132CLIP EVAP COVER
132GEN WZ06X0107
132GEN WR14X0274
132SCR 6-20 AB TR 3/8 SS
133PLUG HOLE
134GEN WR02X4421
135PLUG RECESSED
136GEN WR02X4967
136GEN WR17X1245
136GEN WR02X4545
136GEN WR01X5043
137GEN WR85X0103
137GEN WR02X4838
137REFRIGERANT
137GEN WR02X4983
137GEN WR02X4982
137SCREW
137DRAIN TUBE EXTENSION
138HEATER DEF ASM
138GEN WR02X4557
139SHIELD DEF HTR END
139GEN WR02X4970
140GEN WR02X4546
141WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
142GEN WR60X0108
143WR60X114 GE Refrigerator Evaporator Motor Fan Blade
144GEN WR02X2945
145GEN WZ05X0197
145SCR 8-18 AB HX 3/8 S
145BRACKET EVAP FAN
145BRACKET EVAP FAN
145LINER SCREW
147ORIFICE EVAP FAN
147GEN WR14X0272
148GEN WR01X1326
148GEN WR17X1414
149GEN WR02X2880
150RIVET POP
150GEN WR02X7042
151SHIELD LIGHT FZ
151GEN WR17X1570
152GEN WR02X4839
152GEN WR02X6254
153BRACKET DEF CONTROL
153SPADE TERM. W/4" LEAD WIRE
153SCREW FAN MTR/BRKT
153WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
154GEN WR32X0687
155GEN WR74X0149
156SUPPORT TWIST-COIL
156GEN WR02X4668
158GEN WR02X4098
158GEN WR02X4099
160GEN WR01X1194
166WR2X3594 GE Refrigerator Wheel
167GEN WR02X4742
168GEN WR02X3598
169GEN WR30X0198
170WR30X311 GE Refrigerator Ice Tray
171PLUG BTN (.875 DIA.HOLE)
171WZ4X241D GE Screw Package
171RECEPTACLE-ICEMAKER
172TUBE WATER FILL
174SHIM HINGE BTM.
174GEN WR02X3248
