TFHA24RRAAD FREEZER DOOR

TFHA24RRAAD FREEZER DOOR

Written by

in

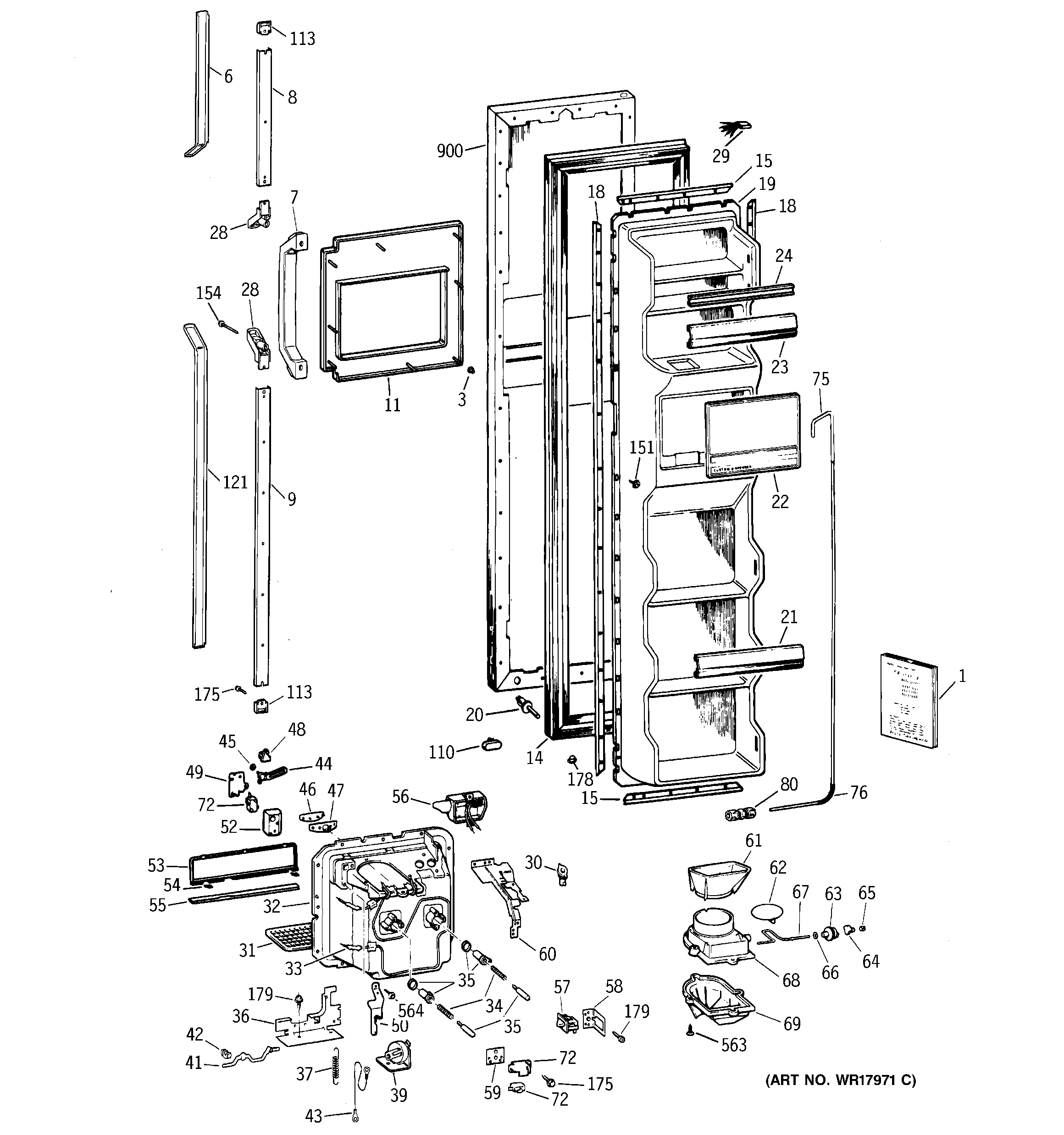

TFHA24RRAAD FREEZER DOOR

Products

PositionProduct
1GEN 49-6692
1GEN 31-5024
3GEN WR02X3757
6INSERT CHANNEL HANDLE AD
7GEN WR12X0847
8GEN WR12X0621
9GEN WR12X0616
10GEN WR01X1766
11GEN WR01X5469
11GEN WR38X1801
14SCREW FAN MTR/BRKT
14GEN WR24X5233
15GEN WR17X1167
18GEN WR17X1169
19GEN WR77X0525
20GEN WR23X0161
21GEN WR17X2984
22GEN WR17X2920
23GEN WR17X2985
24GEN WR71X1899
28GEN WR02X8576
29GEN WR49X0308
29HARNESS RECESS
30GROMMET WATER FILL RECES
31GEN WR02X3953
32GEN WR17X2986
33HEATER RECESS & DUCT ASM
34SPRING-RECESS DUCT
35GEN WR01X1824
35PLUNGER SCW & SLEEVE
36GEN WR02X8414
37GEN WR02X8403
39GEN WR09X0462
41GEN WR17X2820
42GEN WR02X4234
43WR2X8441 GE Refrigerator Lanyard Assembly
44GEN WR02X4460
45GEN WR02X4240
45SCREW
46PAD CRADLE AD
47GEN WR02X3948
48GEN WR02X7951
49GEN WR02X4242
50GEN WR17X1259
52GEN WR02X4459
53GEN WR17X2987
54GEN WR02X4231
55GEN WR38X0844
56GEN WR02X3959
56LAMP 7C7
56INSULATOR HOUSING
57SWITCH-CRADLE-WATER SIDE
58GEN WR02X8496
59GEN WR02X4244
60GEN WR02X7244
61GEN WR17X1261
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64GEN WZ05X0194
64ARM TIME DELAY DISPLAY
65WZ4X230D GE Screw Package 12
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68GASKET DUCT-R. SIDE
68DUCT RECESS
68GASKET DUCT-L. SIDE
69GEN WR17X2982
72SWITCH SELECT-CUBES DISP
72GEN WR02X7942
75GEN WR17X1408
76GEN WR02X4633
80GEN WR02X4265
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
110GEN WR02X4678
113GEN WR02X7871
121GEN WR12X0851
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153WR1X1505D GE Refrigerator Screw Package of 12
154GEN WR01X1765
175SCREW SW. CRADLE
175GEN WR02X8580
276GEN WR01X1510
461GEN WZ06X0136
556SCR 8-32 MA TR 1/4 SS
562GEN WX05X0558
564GEN WR01X1194
621GEN WR02X4495
676WD2X5166 GE Dishwasher Screw
689GEN WR01X1598
690WZ5X158D GE Screw Package of 12
691GEN WX02X0560
692SCREW
753GEN 340533
782WB17X5060 GE Oven Block Assembly
900GEN WR78X8442
1506GEN WB17X5059
