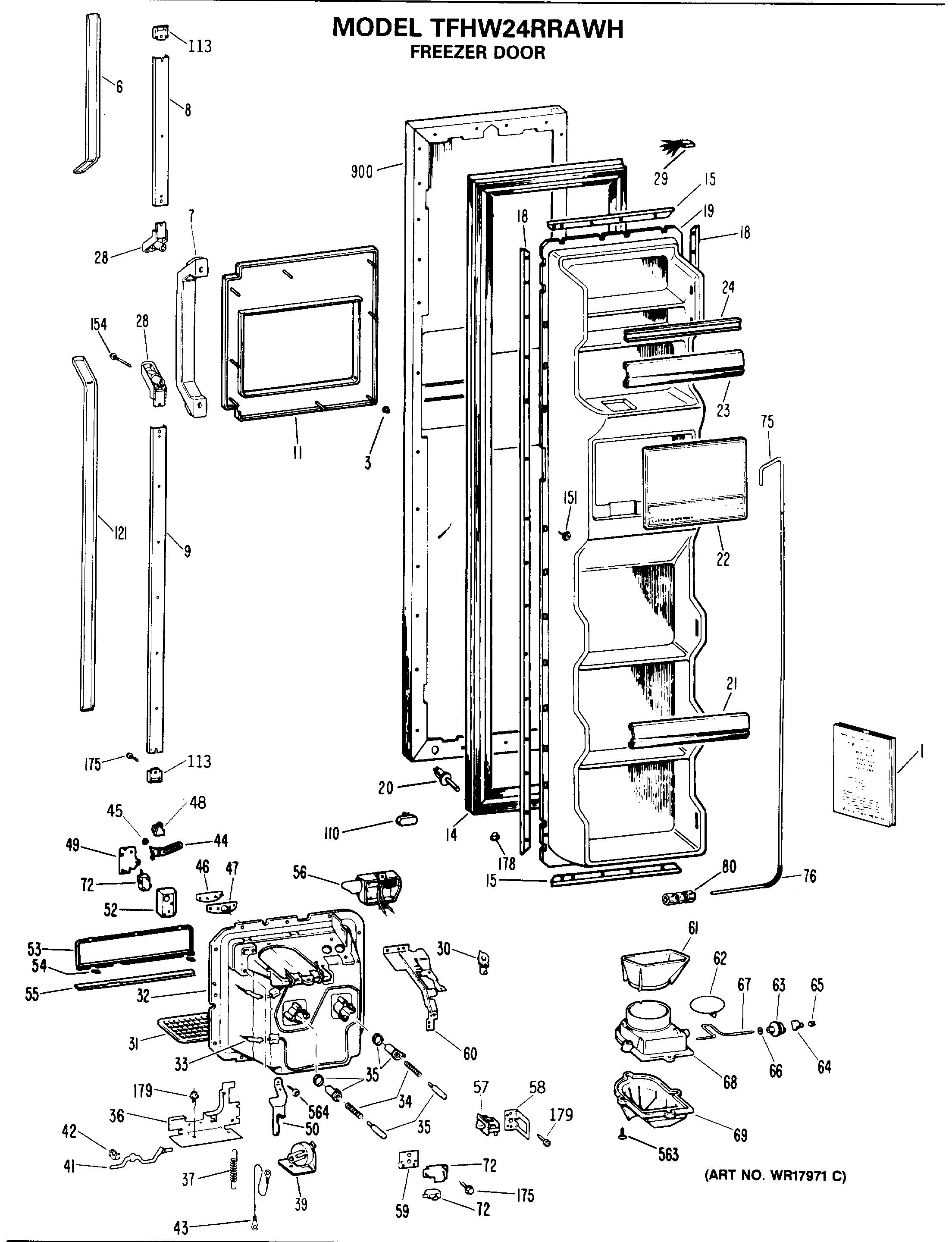

TFHW24RRAWH FREEZER DOOR

TFHW24RRAWH FREEZER DOOR

Written by

in

TFHW24RRAWH FREEZER DOOR

Products

Position	Product
1	GEN 31-5024
1	GEN 49-6692
3	GEN WR02X3757
6	GEN WR12X0848
7	GEN WR12X0852
8	GEN WR12X0621
9	GEN WR12X0616
10	GEN WR01X1766
11	GEN WR01X5469
11	GEN WR38X1764
14	GEN WR24X5233
14	SCREW FAN MTR/BRKT
15	GEN WR17X1167
18	GEN WR17X1169
19	GEN WR77X0525
20	GEN WR23X0161
21	GEN WR17X2984
22	GEN WR17X2920
23	GEN WR17X2985
24	GEN WR71X1899
28	GEN WR02X8576
29	GEN WR49X0308
29	GEN WR49X5102
29	HARNESS RECESS
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	GEN WR17X2592
33	HEATER RECESS & DUCT ASM
34	SPRING-RECESS DUCT
35	PLUNGER SCW & SLEEVE
35	GEN WR01X1824
36	GEN WR02X8414
37	GEN WR02X8403
39	GEN WR09X0462
41	GEN WR17X2820
42	GEN WR02X4234
43	WR2X8441 GE Refrigerator Lanyard Assembly
44	GEN WR02X4460
45	SCREW
45	GEN WR02X4240
46	PAD CRADLE
47	GEN WR02X3948
48	RELAY COVER
49	GEN WR02X4242
50	GEN WR17X1259
52	GEN WR02X4459
53	GEN WR17X2593
54	GEN WR02X4231
55	GEN WR38X0844
56	GEN WR02X3959
56	LAMP 7C7
56	INSULATOR HOUSING
57	SWITCH-CRADLE-WATER SIDE
58	GEN WR02X8496
59	GEN WR02X4244
60	GEN WR02X7244
61	GEN WR17X1261
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
64	GEN WZ05X0194
65	WZ4X230D GE Screw Package 12
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	DUCT RECESS
68	GASKET DUCT-L. SIDE
68	GASKET DUCT-R. SIDE
69	SHIELD FUNNEL ASSY DISPL
72	GEN WR02X7942
72	SWITCH SELECT-CUBES DISP
75	GEN WR17X1408
76	GEN WR02X4633
80	GEN WR02X4265
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
110	GEN WR02X4678
113	GEN WR02X7871
121	GEN WR12X0849
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153	WR1X1505D GE Refrigerator Screw Package of 12
154	GEN WR01X1765
175	GEN WR02X8580
175	SCREW SW. CRADLE
276	GEN WR01X1510
352	WR17X4312 GE Refrigerator Ice Maker Auger and Bucket Assembly
461	GEN WZ06X0136
556	SCR 8-32 MA TR 1/4 SS
562	GEN WX05X0558
562	GEN WB17X5054
564	GEN WR01X1194
584	GEN WZ02X0509
621	GEN WR02X4495
676	WD2X5166 GE Dishwasher Screw
689	GEN WR01X1598
690	WZ5X158D GE Screw Package of 12
691	GEN WX02X0560
692	SCREW
753	GEN 340533
764	GEN WR02X8222
782	WB17X5060 GE Oven Block Assembly
788	GEN WB17X5079
900	GEN WR78X8429
1458	GEN WB17X5061
1506	GEN W
