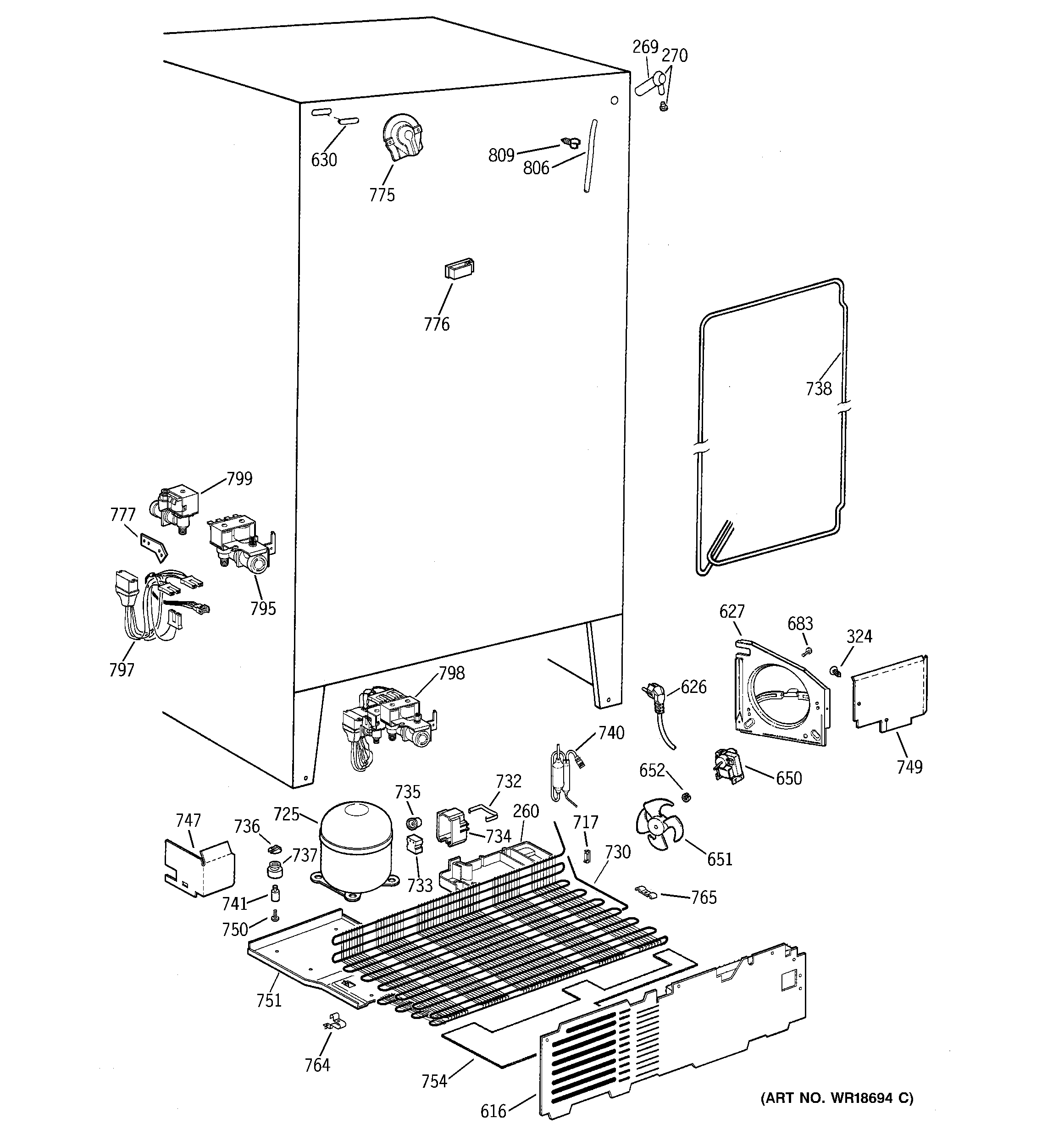

TFS22PPDABS UNIT PARTS

TFS22PPDABS UNIT PARTS

Written by

in

TFS22PPDABS UNIT PARTS

Products

PositionProduct
260GEN WR32X1427
269GEN WR02X7927
270WR2X4754 GE Refrigerator Fill Clamp
270WR2X8474 GE Fill Tube
616GEN WR82X10041
626WR23X10300 GE Refrigerator Power Cord Assembly
626WR1X5278 GE Refrigerator Cable Clamp
627GEN WR17X10449
630GEN WR02X8525
650GEN WR60X10024
651GEN WR60X10034
652RING COMPRESSION
683GEN WR01X10127
717GEN WR02X10335
725WR87X20798 GE Refrigerator High Side Assembly
730GEN WR84X0188
732CLAMP RELAY COVER
733WR07X10099 GE Refrigerator PTCR
734COVER RELAY
735GEN WR08X10005
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
738WR2X7064 GE Refrigerator Condenser Clip
738GEN WR84X0169
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
747GEN WR17X10427
749GEN WR17X4147
750WR1X1786 GE Refrigerator Screw
751GEN WR17X10337
754GEN WR82X10064
764WR2X9000 GE Refrigerator Condenser Clip
765GEN WR01X1985
775WR17X13124 GE Refrigerator Water Line Cover
776WR02X10522 GE Refrigerator Clamp Tube
777WR02X10370 GE Refrigerator Water Valve Bracket
795WR57X10023 GE Water Inlet Valve
797WR23X10108 GE Refrigerator Harness
798WR57X10026 GE Refrigerator Water Inlet Valve
799WR57X10024 GE Water Inlet Valve
806WR17X11349 GE Refrigerator Plastic Tube
809WR1X1936 GE Refrigerator Fastener
