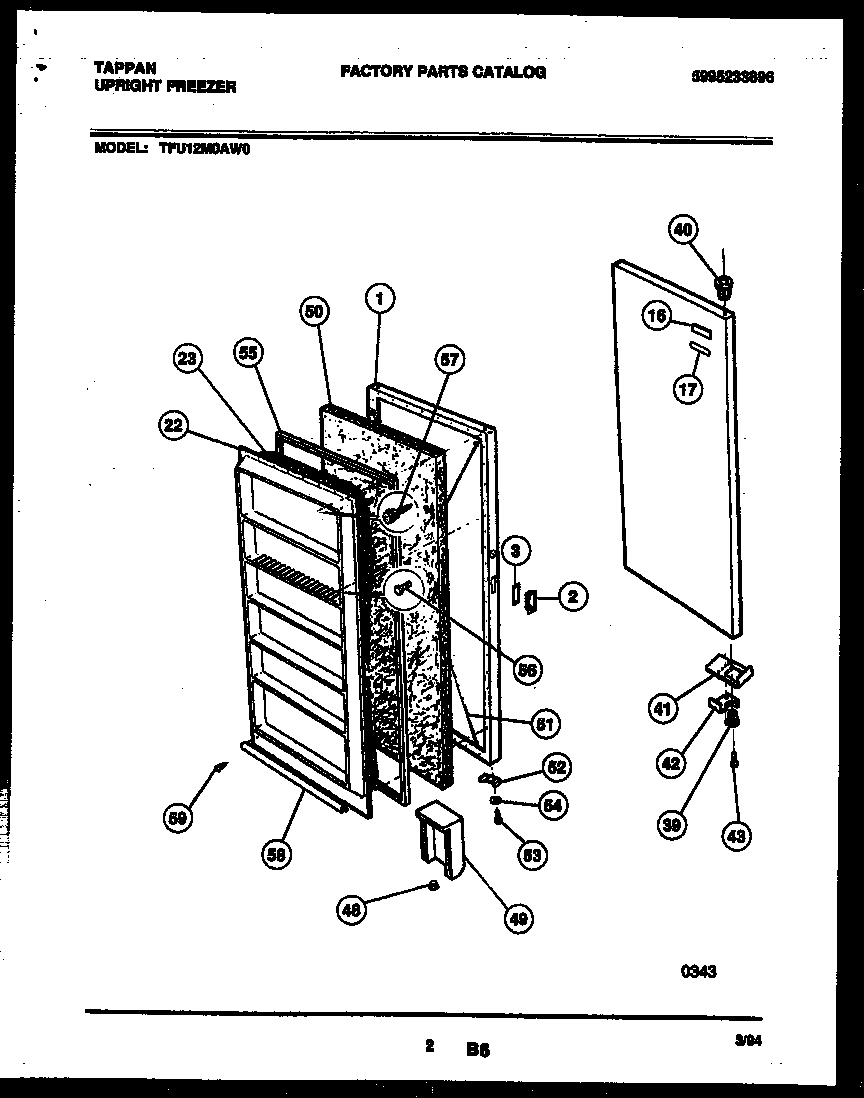

TFU12M0AW0 02 – DOOR PARTS

Products

Position	Product
1	WCI 216011303
2	WCI 08037955
3	GASKET, WHITE
4	WCI 5303296404
16	WCI 08037409
17A	WCI 5300460947
17	INSERT-BEZEL
22	WCI 216063600
23	INSULATION (CUT TO SIZE)
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
48	Valve,breather ,door base
49	WCI 5303212700
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE, DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	GASKET DOOR
56	216858001 Frigidaire Refrigerator Screw
57	WCI 216022800
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
