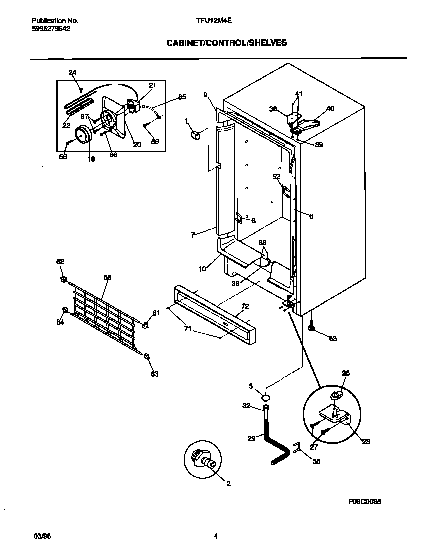

TFU12M4EW0 03 – CABINET/CONTROL/SHELVES

TFU12M4EW0 03 – CABINET/CONTROL/SHELVES

Written by

in

TFU12M4EW0 03 – CABINET/CONTROL/SHELVES

Products

PositionProduct
*155635303321319 Frigidaire Refrigerator White Touch Up Paint
*15562WCI 06594680
1WCI 216013600
2WCI 216269500
6WCI 216108400
7WCI 216108501
8CLIP, U, LOCK
9WCI 216073300
10WCI 216073200
18WCI 216008602
20WCI 5303288184
21WCI 216405000
22CLAMP, CAP TUBE, COLD CONTROL
24SCREW, CLAMP, TRUSS HD CR, CONTROL
26RAMP, DOOR
27154518001 Frigidaire Refrigerator Screw
28WCI 216247400
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
35216273000 Frigidaire Refrigerator Strap
36WCI 06594651
38WCI 5303925086
39WCI 5303294372
40COVER, HINGE
41WCI 5303212937
52RETAINER, WIRE, BREAKER
56WCI 09950853
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
65WCI 216447600
71131420300 Frigidaire Screw
72GRILLE/KICKPLATE
81WCI 06599973
82WCI 06599974
83WCI 06599975
84WCI 06599976
85WIRE-GROUND, TEMP CONTROL
86216036601 Frigidaire Refrigerator Screw
87SCREW
