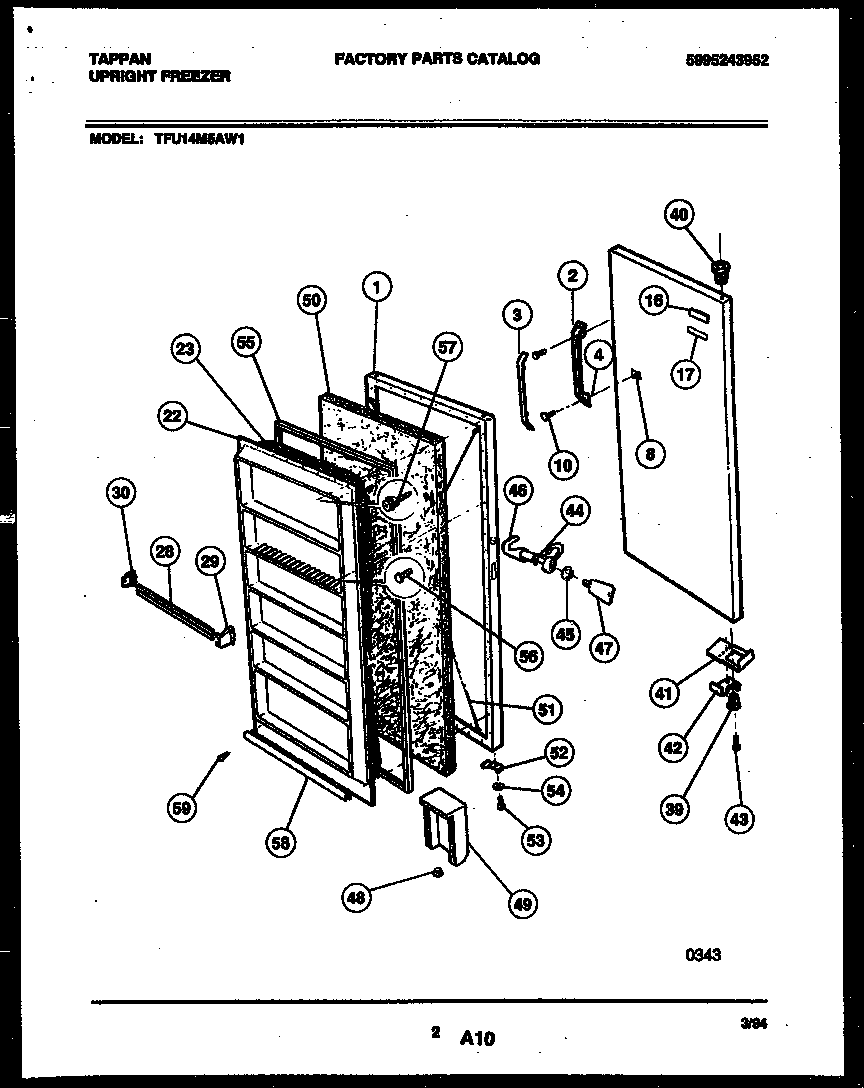

TFU14M5AW1 02 – DOOR PARTS

Products

Position	Product
1	PANEL-OUTER DOOR, WHITE
2	HANDLE
3	3017682 Frigidaire Insert Handle
4	WCI 5303296404
8	WCI 3202683
16	WCI 08037409
17	INSERT-BEZEL
17A	WCI 5300460947
22	WCI 216048711
23	INSULATION (CUT TO SIZE)
28	RACK-SHELF, WIDE, WHITE
29	WCI 5309948970
30	WCI 09948971
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 216013800
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5303212700
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE, DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206249
56	216858001 Frigidaire Refrigerator Screw
57	WCI 216022800
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
