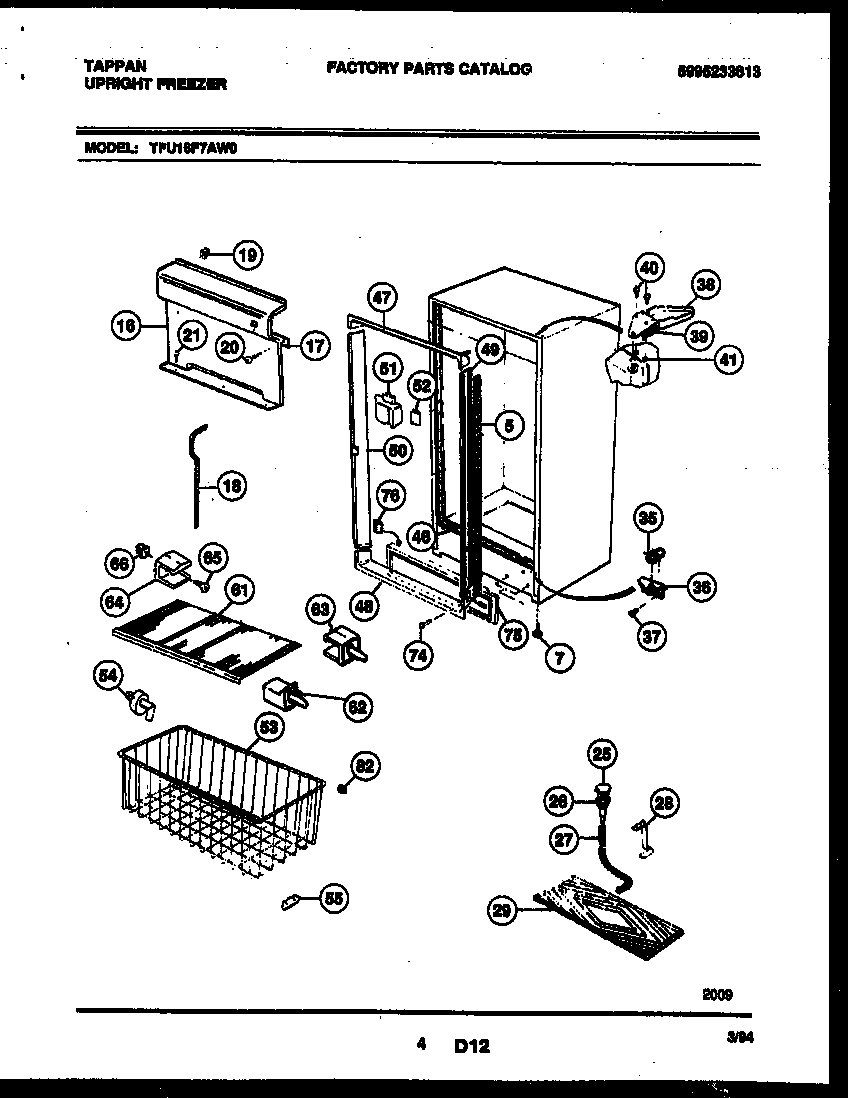

TFU16F7AW0 03 – CABINET PARTS

TFU16F7AW0 03 – CABINET PARTS

Written by

in

TFU16F7AW0 03 – CABINET PARTS

Products

PositionProduct
5INSULATION (CUT TO SIZE)
7WCI 216218100
16WCI 216084100
17WCI 06599547
18WCI 216204900
19301036 Frigidaire Refrigerator Insert Nut
20216858001 Frigidaire Refrigerator Screw
21131168200 Frigidaire Dryer Screw
25216503100 Frigidaire Refrigerator Screen-Drain
265304511843 Frigidaire Refrigerator Sleeve
275304512272 Frigidaire Hose Drain
28WCI 06594637
29WCI 5308016387
35RAMP, DOOR
36WCI 5303210383
38COVER, HINGE
39HINGE, TOP
40ASPACER-BREAKER (8)
40WCI 5303212937
41154518001 Frigidaire Refrigerator Screw
46WCI 06594680
47WCI 216085900
48WCI 216085800
49WCI 216108801
50WCI 216108901
51WCI 216013600
52CLIP, U, LOCK
535304497658 Frigidaire Refrigerator Basket
54WCI 09948791
55AWCI 5303288196
5508009560 Frigidaire 0 Basket Glide
61ASHELF-LOWER (1)
61WCI 08037963
62AWCI 5306594707
62WCI 5306594706
63WCI 5306594584
64WCI 5306594585
65Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66WCI 06594537
74FASTENER BASE PANEL
75WCI 3017667
76WCI 5300118003
825305878546 Frigidaire Refrigerator Bumper-Basket
