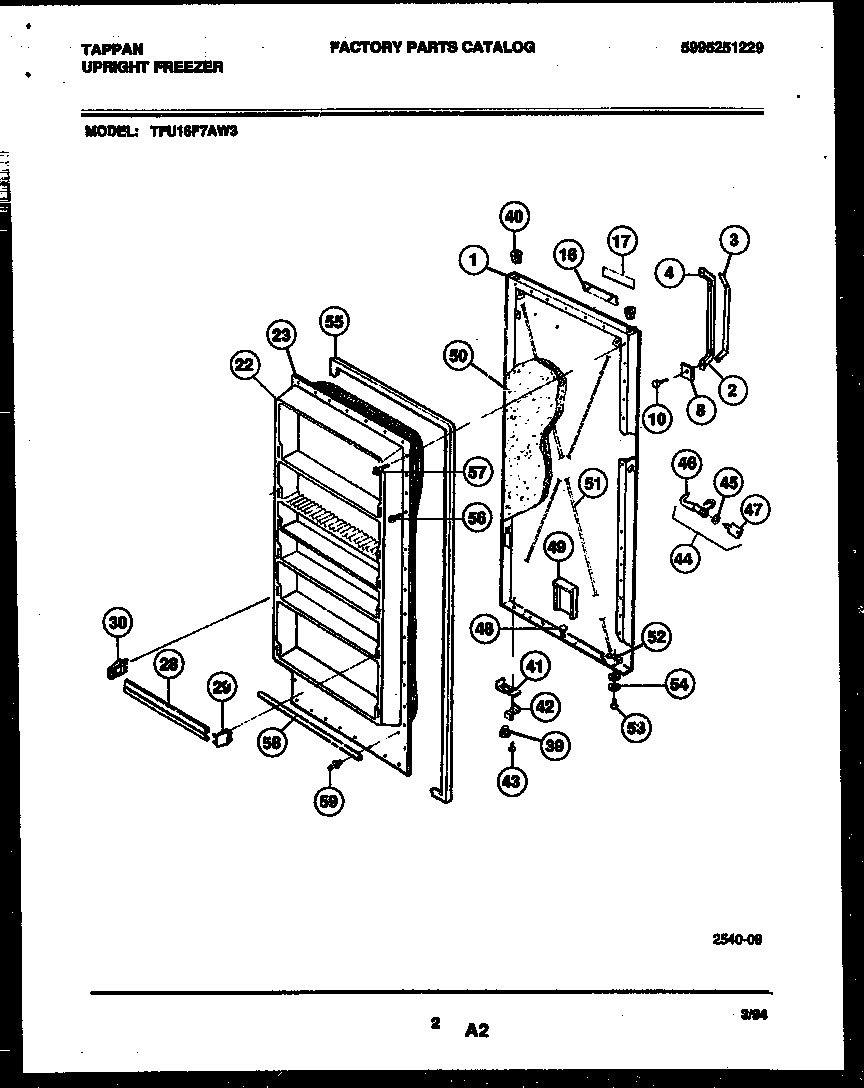

TFU16F7AW3 02 – DOOR PARTS

Products

Position	Product
1	WCI 216011704
2	HANDLE
3	3017682 Frigidaire Insert Handle
4	WCI 5303296404
8	WCI 3202683
10	216858001 Frigidaire Refrigerator Screw
16	WCI 08037409
17	INSERT-BEZEL
22	WCI 3017651
23	INSULATION (CUT TO SIZE)
28	TRIM-BASKET, WIDE, FRONT
29	WCI 216257800
30	WCI 216257900
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 216013800
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5303212700
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE-DOOR ADJUSTMENT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206254
56	WCI 216022800
57	WCI 08009384
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
