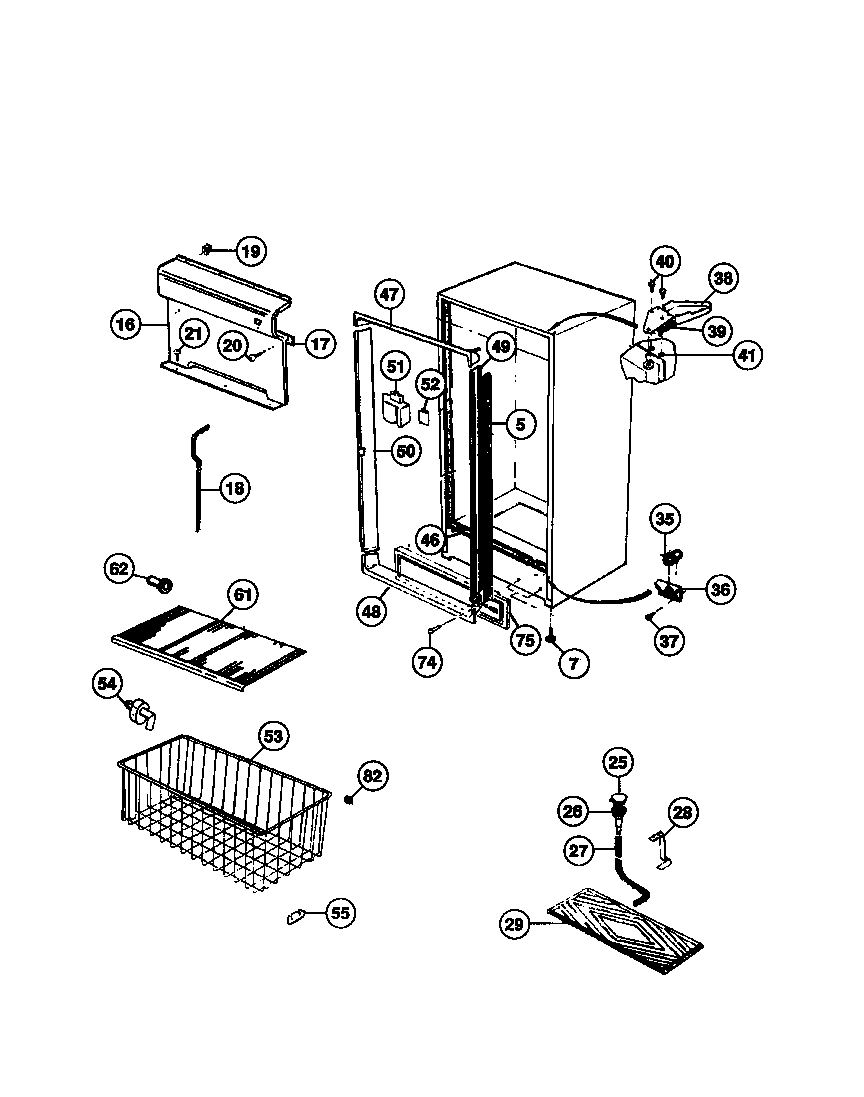

TFU16F7BW1 03 – CABINET

Products

Position	Product
*15000	SPACER-BREAKER (8)
*15001	WCI 5303288196
5	INSULATION (CUT TO SIZE)
7	WCI 205363701
16	WCI 216084100
17	WCI 06599547
18	WCI 216204900
19	301036 Frigidaire Refrigerator Insert Nut
20	216858001 Frigidaire Refrigerator Screw
21	WCI 216283900
25	216503100 Frigidaire Refrigerator Screen-Drain
26	5304511843 Frigidaire Refrigerator Sleeve
27	5304512272 Frigidaire Hose Drain
28	WCI 06594637
29	WCI 5308016387
35	RAMP, DOOR
36	WCI 216247400
38	COVER, HINGE
39	HINGE, TOP
40	WCI 5303212937
41	154518001 Frigidaire Refrigerator Screw
46	WCI 06594680
47	WCI 216085900
48	WCI 216085800
49	WCI 216108801
50	WCI 216108901
51	WCI 216013600
52	CLIP, U, LOCK
53	5304497658 Frigidaire Refrigerator Basket
54	WCI 09948791
55	08009560 Frigidaire 0 Basket Glide
61	WCI 216266800
61	WCI 216266700
62	216502400 Frigidaire Refrigerator Grommet Unit
74	131420300 Frigidaire Screw
75	WCI 216294413
82	5305878546 Frigidaire Refrigerator Bumper-Basket
