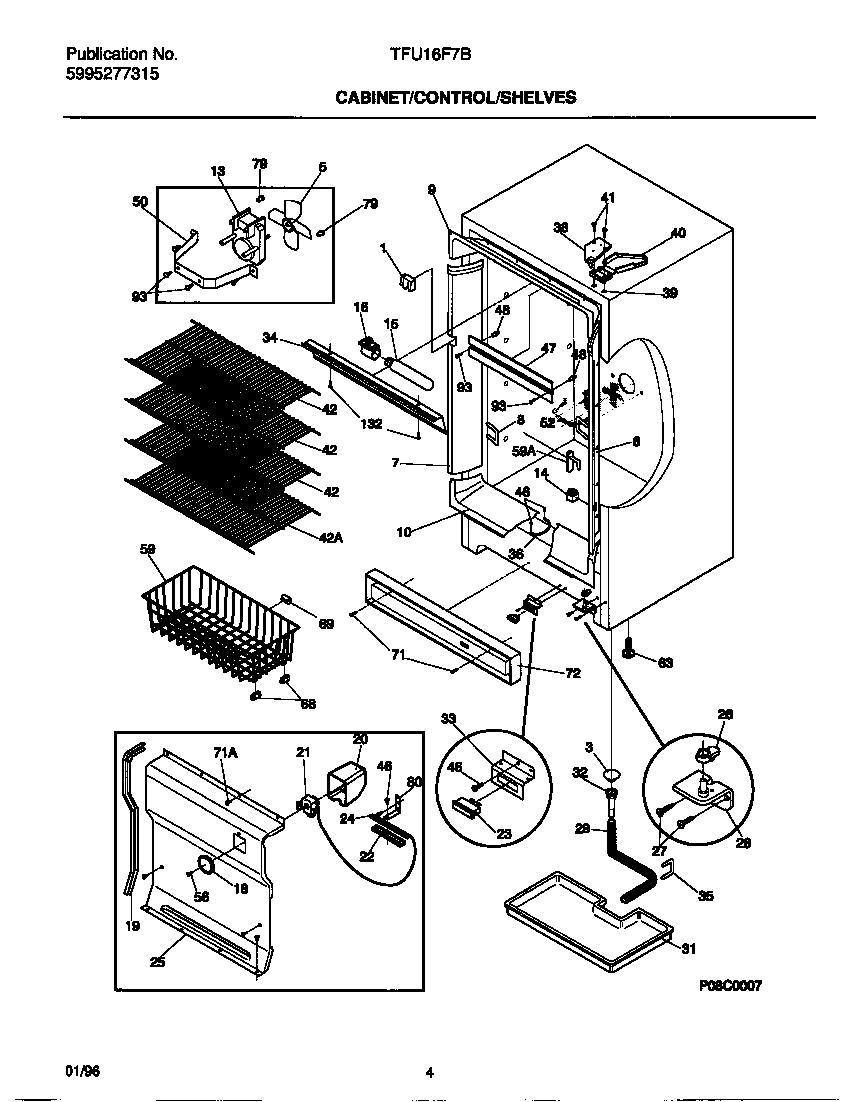

TFU16F7BW2 03 – CABINET/CONTROL/SHELVES

Products

Position	Product
*49202	WCI 06594680
*49203	WCI 5303207297
*49204	WCI 5303207388
*49205	5303321319 Frigidaire Refrigerator White Touch Up Paint
1	WCI 216013600
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 216108801
7	WCI 216108901
8	CLIP, U, LOCK
9	WCI 216085900
10	WCI 216085800
13	5304442620 Frigidaire Refrigerator Evaporator Fan Motor
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	5304517886 Frigidaire Refrigerator Light
16	SOCKET, LIGHT/LAMP
18	WCI 216008801
19	WCI 216204900
20	WCI 216230300
21	WCI 216303500
22	WCI 05878562
23	WCI 06594648
24	SCREW, CLAMP, TRUSS HD CR, CONTROL
25	WCI 216084100
26	RAMP, DOOR
27	154518001 Frigidaire Refrigerator Screw
28	WCI 216247400
29	5304512272 Frigidaire Hose Drain
31	WCI 5308016387
32	5304511843 Frigidaire Refrigerator Sleeve
33	WCI 216252001
34	WCI 216312201
35	WCI 06594637
36	WCI 06594651
38	WCI 5303925086
39	WCI 5303294372
40	COVER, HINGE
41	WCI 5303212937
42	WCI 216266700
42	WCI 216266800
46	WCI 08037851
47	WCI 5303288233
48	WCI 08000456
50	WCI 216394000
52	RETAINER, WIRE, BREAKER
56	WCI 09950853
59	WCI 09948791
59	5304497658 Frigidaire Refrigerator Basket
63	WCI 205363701
68	08009560 Frigidaire 0 Basket Glide
69	5305878546 Frigidaire Refrigerator Bumper-Basket
71	216036601 Frigidaire Refrigerator Screw
71	131168200 Frigidaire Dryer Screw
72	WCI 216294413
79	301036 Frigidaire Refrigerator Insert Nut
80	WCI 06594601
93	216858001 Frigidaire Refrigerator Screw
132	WCI 5303283898
