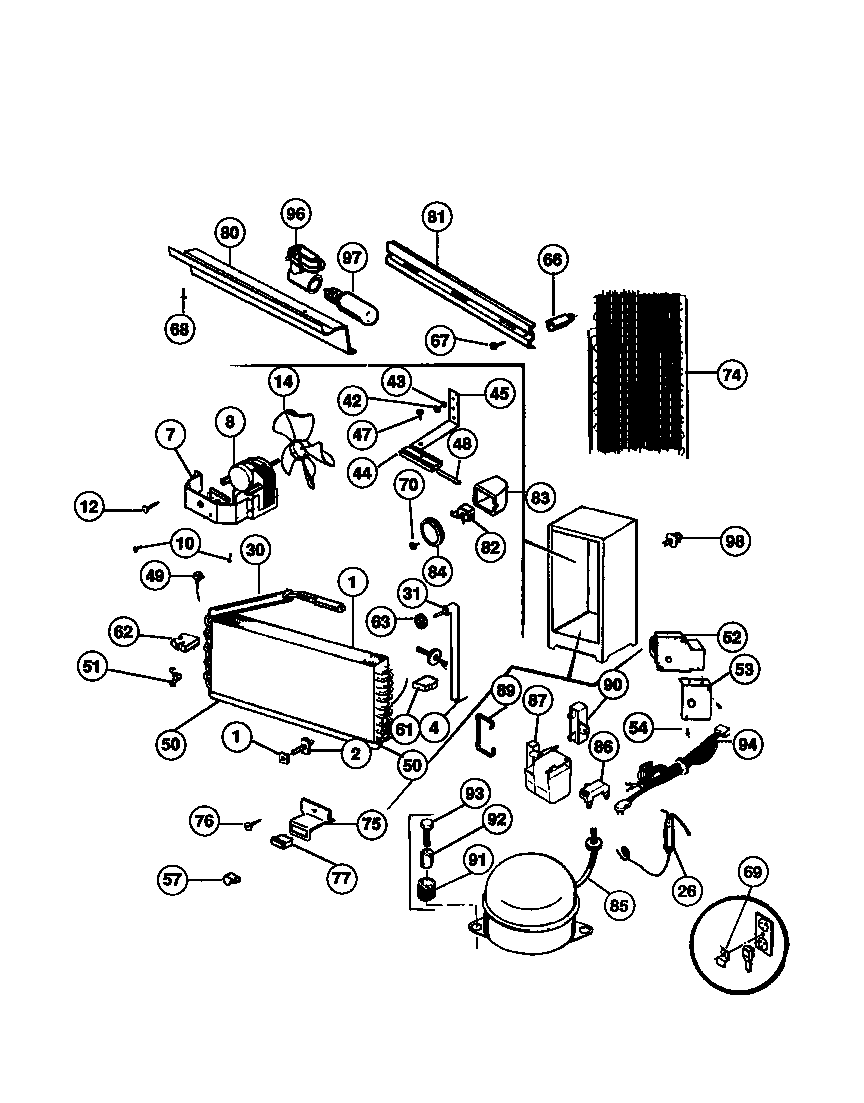

TFU20F7BW1 04 – SYSTEM

Products

PositionProduct
*75964WCI 06594651
*75962WCI 06599546
*75963WCI 06599553
1WCI 5303288322
2WCI 06599544
3WCI 08013198
4WCI 5303272332
7WCI 08013207
85304442620 Frigidaire Refrigerator Evaporator Fan Motor
14WCI 3205520
265303305677 Frigidaire Replacement Filter Dryer Filters
30WCI 06594625
31WCI 09948773
42216036601 Frigidaire Refrigerator Screw
43WCI 5300095480
44WCI 05878562
45WCI 06594601
47SCREW, CLAMP, TRUSS HD CR, CONTROL
48TUBE
49WCI 216254500
50216254600 Frigidaire Refrigerator Defrost Heater
515308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
525304518034 Frigidaire Refrigerator Defrost Timer
53WCI 08016580
54SCREW
575303212614 Frigidaire Refrigerator Clip
61WCI 06599531
62WCI 3017674
63WCI 06594629
66WCI 08000456
67216858001 Frigidaire Refrigerator Screw
68WCI 5303283898
69RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
70WCI 09950853
745300083897 Frigidaire Refrigerator Condenser P1 O/S2
75WCI 216252001
76WCI 08037851
77WCI 06594648
80WCI 216241604
81WCI 5303288233
82WCI 216303500
83WCI 216230300
84WCI 216008801
85WCI 216110300
86WCI 216110400
87WCI 216008900
89WCI 215012000
905304464438 Frigidaire Compressor Run Capacitor
91216498900 Frigidaire Refrigerator Grommet
92SLEEVE-COMPRESSOR
93SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
94WCI 216268500
96SOCKET, LIGHT/LAMP
975304517886 Frigidaire Refrigerator Light
985309918806 Frigidaire Refrigerator Light Switch Door
