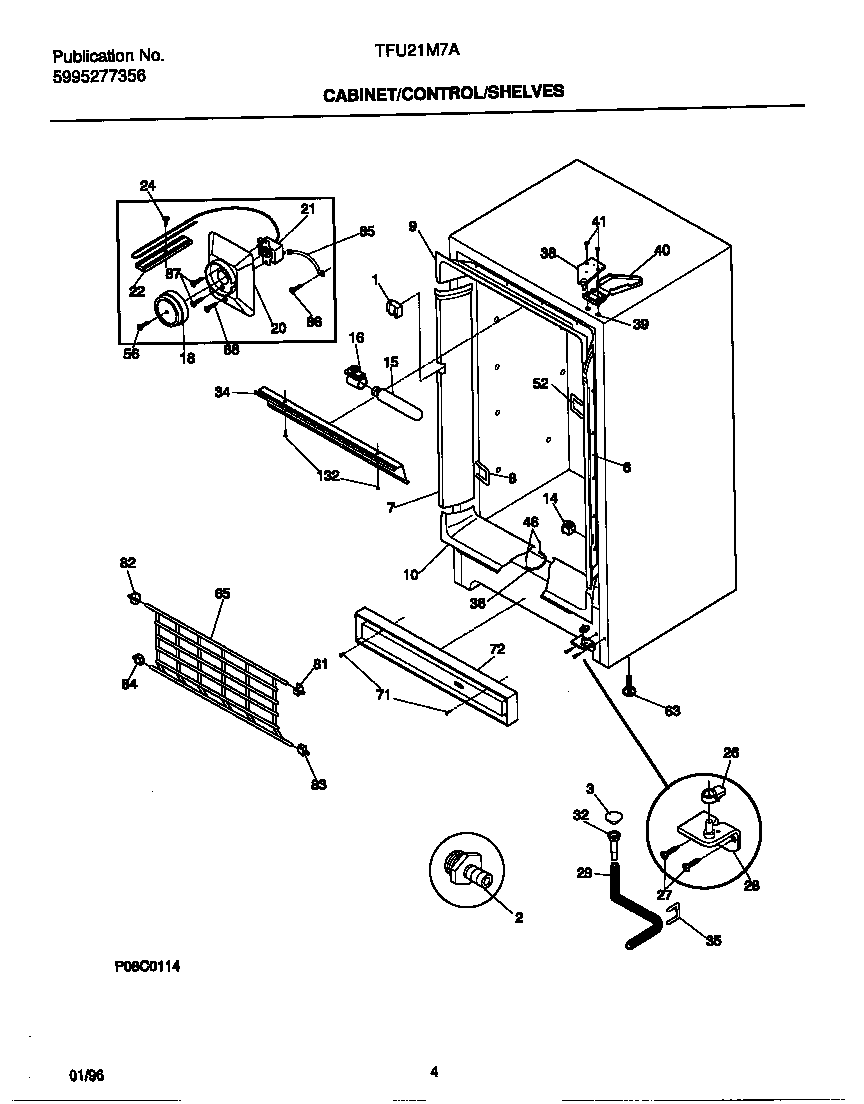

TFU21M7AW4 03 – CABINET/CONTROL/SHELVES

TFU21M7AW4 03 – CABINET/CONTROL/SHELVES

Written by

in

TFU21M7AW4 03 – CABINET/CONTROL/SHELVES

Products

PositionProduct
*66683WCI 09948773
*66684WCI 5303207297
*66682WCI 06594680
*666855303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 216013600
2WCI 216269500
6WCI 216107501
7WCI 216107601
8CLIP, U, LOCK
9WCI 216085900
10WCI 216085800
145309918806 Frigidaire Refrigerator Light Switch Door
155304517886 Frigidaire Refrigerator Light
16SOCKET, LIGHT/LAMP
18WCI 216008602
20WCI 5303288184
21WCI 216260400
22CLAMP, CAP TUBE, COLD CONTROL
24SCREW, CLAMP, TRUSS HD CR, CONTROL
26RAMP, DOOR
27154518001 Frigidaire Refrigerator Screw
28WCI 216247400
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 216241601
35216273000 Frigidaire Refrigerator Strap
36WCI 06594651
38WCI 5303925086
39WCI 5303294372
40COVER, HINGE
41WCI 5303212937
46WCI 08037851
52RETAINER, WIRE, BREAKER
56WCI 09950853
63WCI 205363701
65WCI 216250300
71131420300 Frigidaire Screw
72PANEL BASE
81WCI 06599973
82WCI 06599974
83WCI 06599975
84WCI 06599976
85WIRE-GROUND, TEMP CONTROL
86216036601 Frigidaire Refrigerator Screw
87SCREW
132WCI 5303283898
