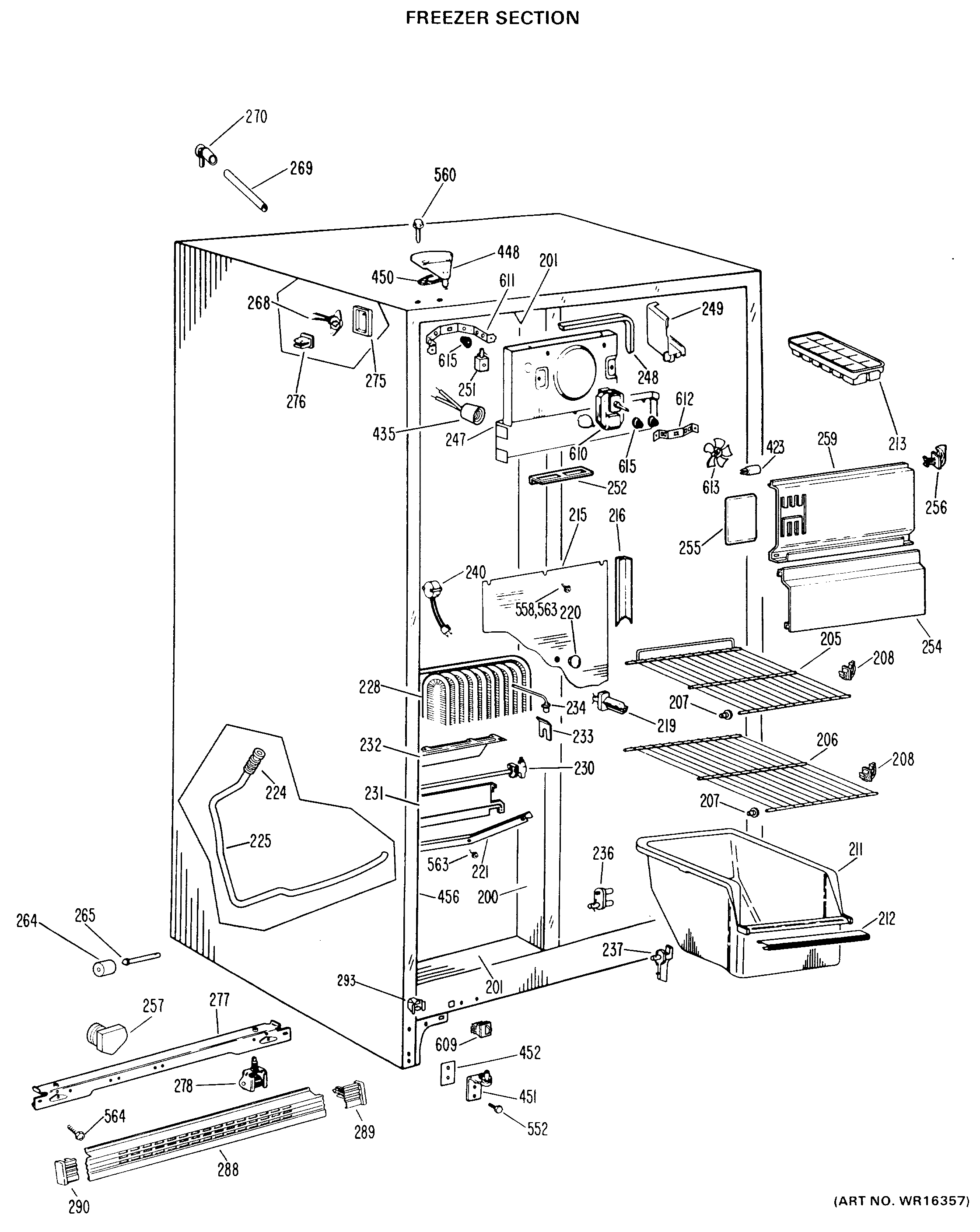

TFX19LHD FREEZER SECTION

TFX19LHD FREEZER SECTION

Written by

in

TFX19LHD FREEZER SECTION

Products

Position	Product
200	BREAKER STRIP-FZ MULLION
201	BREAKER STRIP-TOP & BTM.
205	GEN WR71X1655
206	SHELF FZ-BTM.
207	GEN WR02X4676
208	GEN WR02X4674
211	GEN WR21X5074
213	WR30X311 GE Refrigerator Ice Tray
214	GEN WR01X1332
214	GEN WR17X2121
214	GEN WR02X7257
215	CLIP EVAP COVER
216	GEN WR14X0274
219	GEN WR02X4421
220	PLUG RECESSED
221	TROUGH DRAIN
224	GEN WR02X4967
225	GEN WR02X4838
225	GEN WR17X2114
225	GEN WR01X5042
228	GEN WR02X4983
228	GEN WR02X4982
228	GEN WR85X0200
230	SHIELD DEF HTR END
230	BRACKET DEF HTR
230	GEN WR51X0231
232	GEN WR02X4971
234	GEN WR02X4546
236	GEN WR02X4548
237	GEN WR02X7036
240	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
247	GEN WR17X1413
248	GEN WR14X0272
249	GEN WR17X1414
251	GEN WR02X2880
252	GEN WR02X7042
254	GEN WR17X1567
255	GEN WR02X6254
256	GEN WR02X4839
257	WR9X502 GE Refrigerator Defrost Timer
257	BRACKET DEF CONTROL
259	GEN WR17X1927
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3598
265	GEN WR02X4742
268	GEN WR23X0312
269	GEN WR02X6087
270	WR2X8474 GE Fill Tube
270	GEN WR02X3248
275	GEN WR02X4339
277	RAIL MACH MTG FRT
278	WHEEL ASM FRT
288	GEN WR02X7079
288	GEN WR74X0183
289	GEN WR02X7154
290	GEN WR02X7155
293	GEN WR02X7080
423	GEN WR02X6350
423	GEN WR02X6347
435	GEN WR02X7494
435	RANGE ONLY 40W 120V APPL BULB
435	WR2X9391 GE Socket and Terminal
448	HINGE TOP ASM
450	GEN WR02X4194
451	WR49X5124 GE Refrigerator Hinge and Cam Assembly
452	GEN WR02X7190
452	GEN WR02X7011
452	SHIM HINGE BTM.
456	RETAINER BREAKER
456	BREAKER STRIP-HINGE SIDE
456	RETAINER BREAKER
456	RETAINER BREAKER
552	SCR 12-24 TT HXW 1 3/64S
558	GEN WZ06X0107
560	GEN WR01X1249
563	WZ4X241D GE Screw Package
563	GEN WR01X1326
564	GEN WR01X1194
609	WR23X37285 GE Light Switch
610	GEN WR60X0168
611	BRACKET EVAP FAN
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
