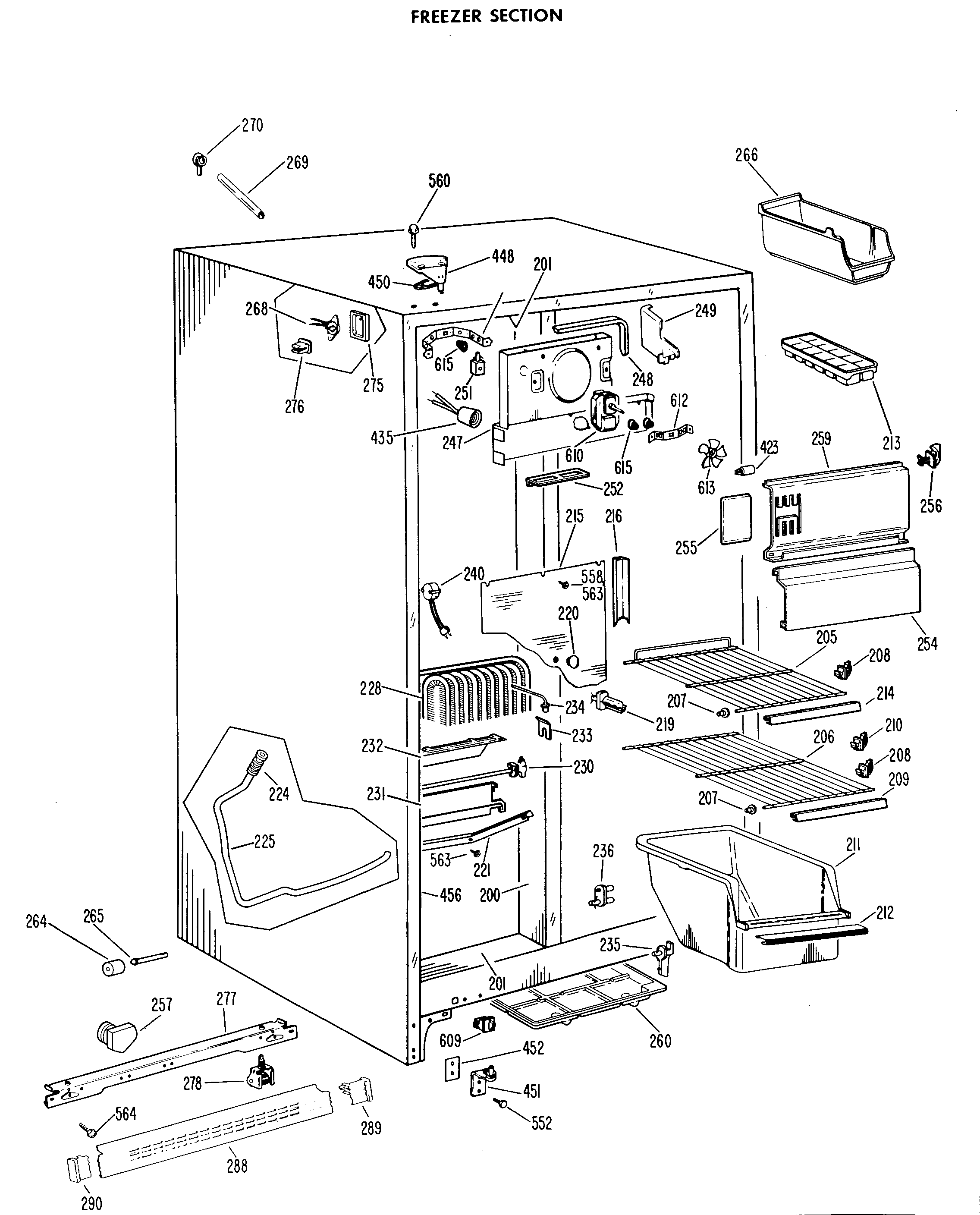

TFX20DFC FREEZER SECTION

Products

Position	Product
200	BREAKER STRIP-FZ MULLION
201	BREAKER STRIP-TOP & BTM.
205	GEN WR71X1656
206	SHELF FRZ. MOVABLE
207	GEN WR02X4676
208	GEN WR02X4674
209	GEN WR38X1021
210	GEN WR02X7215
211	BASKET FRZ
212	GEN WR17X1979
213	WR30X311 GE Refrigerator Ice Tray
214	GEN WR38X1025
215	GEN WR17X1566
216	GEN WR14X0274
219	GEN WR02X4421
220	PLUG RECESSED
221	TROUGH DRAIN
224	GEN WR02X4967
225	GEN WR02X7088
228	LOW SIDE ASM
230	GEN WR51X0231
231	GEN WR02X4944
231	BRACKET DEF HTR
232	GEN WR02X4971
233	SHIELD DEF HTR END
234	GEN WR02X4546
235	GEN WR02X7036
236	GEN WR02X4548
240	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
247	GEN WR17X1413
248	GEN WR14X0272
249	GEN WR17X1414
251	GEN WR02X2880
252	GEN WR02X7042
254	GEN WR17X1567
255	GEN WR02X6254
256	GEN WR02X4839
257	WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
257	BRACKET DEF CONTROL
259	GEN WR17X1927
260	PAN WATER DISPOSAL ASM
260	GEN WR02X7074
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3598
265	GEN WR02X4742
266	GEN WR30X0193
268	RECEPTACLE-ICEMAKER
269	TUBE WATER FILL
269	GEN WR02X4816
270	GROMMET WATER FILL
270	GEN WR02X7255
270	GEN WR02X3248
275	GEN WR02X4339
277	RAIL MACH MTG FRT
278	WHEEL ASM FRT
288	GEN WR02X7079
288	GEN WR74X0183
289	GEN WR02X7154
290	GEN WR02X7155
423	GEN WR02X6347
423	GEN WR02X6350
435	SOCKET LAMP
448	HINGE TOP ASM
450	GEN WR02X4194
451	WR49X5124 GE Refrigerator Hinge and Cam Assembly
452	SHIM HINGE BTM.
452	GEN WR02X7011
456	RETAINER BREAKER
456	BREAKER STRIP-HINGE SIDE
456	RETAINER BREAKER
456	RETAINER BREAKER
552	SCR 12-24 TT HXW 1 3/64S
558	GEN WZ06X0107
560	GEN WR01X1249
563	WZ4X241D GE Screw Package
563	GEN WR01X1326
564	GEN WR01X1194
609	WR23X37285 GE Light Switch
610	GEN WR60X0131
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
