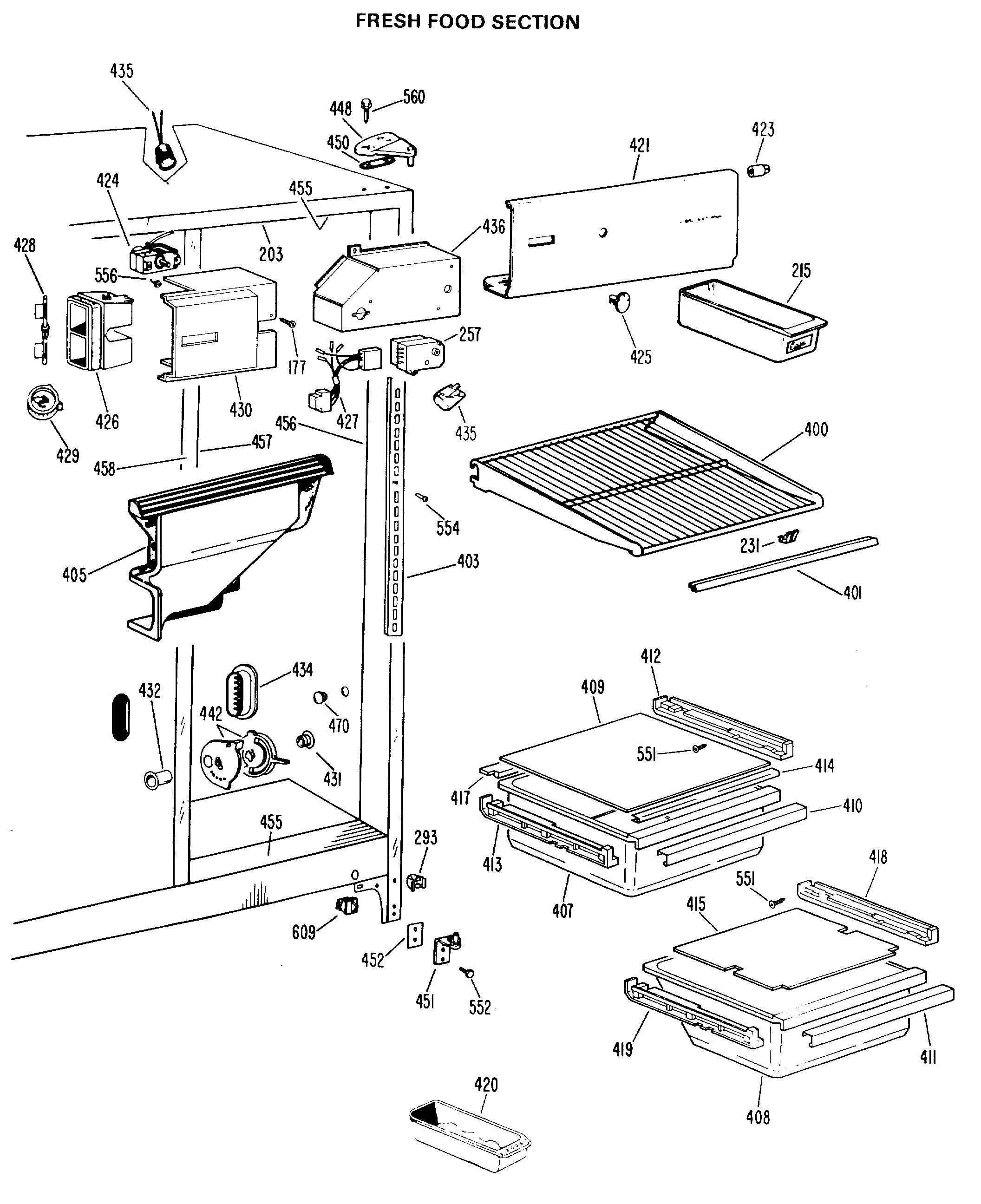

TFX20PKB FRESH FOOD SECTION

TFX20PKB FRESH FOOD SECTION

Written by

in

TFX20PKB FRESH FOOD SECTION

Products

PositionProduct
177SCREW
203RETNR BRKR-TOP FF & FZ
230BRACKET DEF HTR
231GEN WR02X4944
257WR9X502 GE Refrigerator Defrost Timer
293GEN WR02X7080
400SHELF CANT WIRE ASM
401GEN WR38X1026
403GEN WR72X0089
405GEN WR17X1382
407GEN WR32X0740
408GEN WR32X0741
409GEN WR32X0654
411GEN WR17X1984
412SLIDE PAN
413SLIDE PAN
414GEN WR14X5111
415COVER PAN
418SLIDE PAN-R. SIDE
419SLIDE PAN-L. SIDE
420GEN WR32X0653
421UNKNOWN
423GEN WR02X6350
423GEN WR02X6347
424GEN WR09X0359
425GEN WR02X7157
426GEN WR02X4834
426GEN WR02X3880
426GASKET FOAM
427GEN WR23X0316
428GEN WR02X4835
429GEN WR02X4836
430CLIP-CONTROL HOUSING
430GEN WR17X2209
431GEN WR02X7216
432GEN WR02X3886
434GEN WR02X4542
435WR2X9391 GE Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
436GEN WR02X7736
448GEN WR13X0579
450GEN WR02X4194
451WR13X10020 GE Refrigerator Door Hinge Assembly with Cam
452NUTSTRIP HINGE
452GEN WR02X7011
455BREAKER STRIP-TOP & BTM.
456RETAINER BREAKER
456BREAKER STRIP-HINGE SIDE
456RETAINER BREAKER
457BREAKER STRIP-FF MULLION
458GEN WR02X4739
458GEN WR02X7033
458GEN WR02X7031
458GEN WR40X1576
470WR2X3139 GE Refrigerator Plug Button
551GEN WZ04X0244
552SCR 12-24 TT HXW 1 3/64S
554GEN WR01X1483
556SCR 8-32 MA TR 1/4 SS
560GEN WR01X1249
609WR23X37285 GE Light Switch
