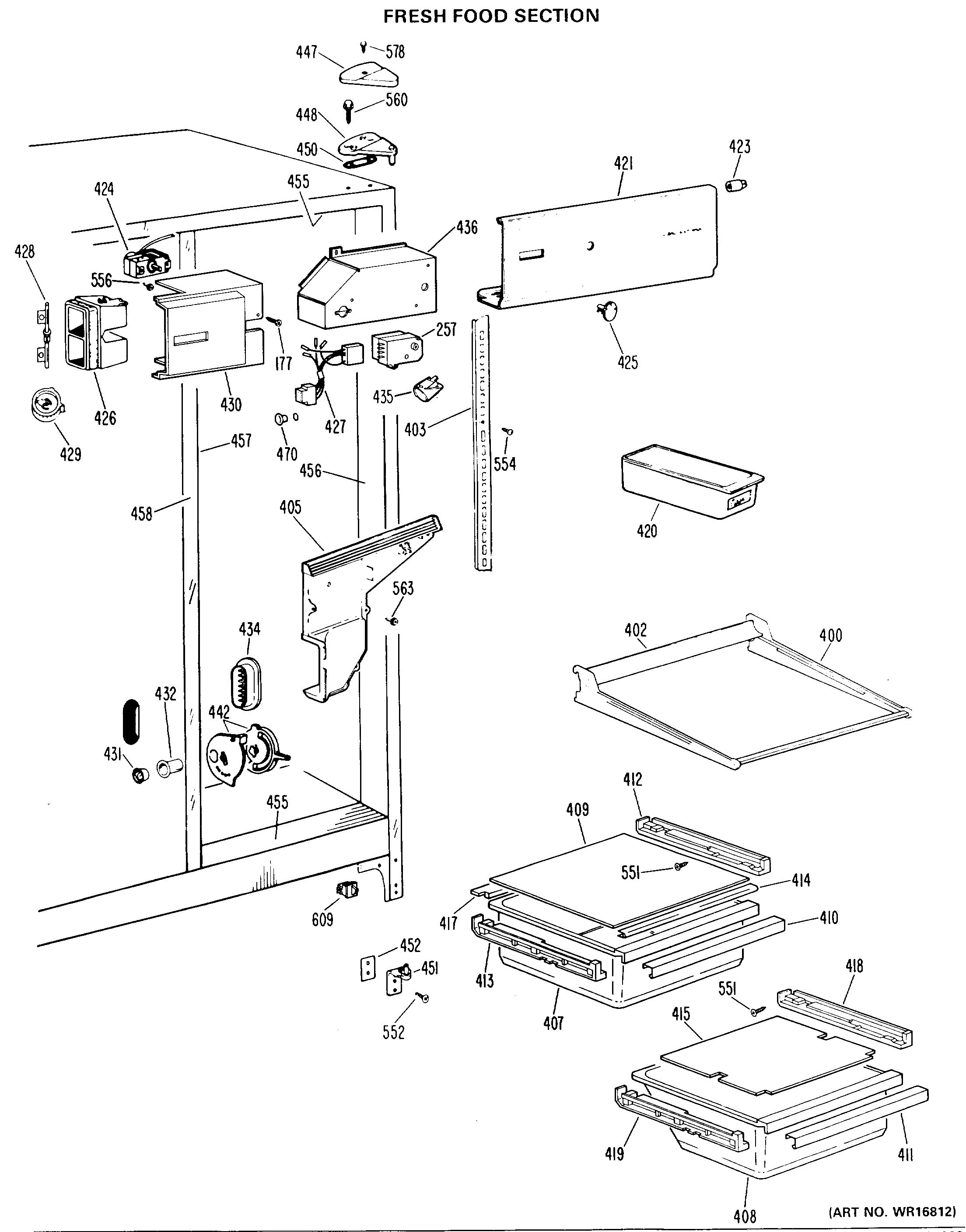

TFX20RKB FRESH FOOD SECTION

TFX20RKB FRESH FOOD SECTION

Written by

in

TFX20RKB FRESH FOOD SECTION

Products

PositionProduct
177SCREW
257SCR 6-32 D TR 3/8 SS
257WR9X502 GE Refrigerator Defrost Timer
400GEN WR71X1672
402GEN WR38X0968
403GEN WR72X0089
405GEN WR17X1382
407GEN WR32X0899
408GEN WR32X0900
409GEN WR32X0654
410GEN WR17X1559
411HANDLE PAN MEAT
412SLIDE PAN
413SLIDE PAN
414GEN WR14X5111
415COVER PAN
417GEN WR14X5108
418SLIDE PAN-R. SIDE
419SLIDE PAN-L. SIDE
420GEN WR32X0856
421UNKNOWN
423GEN WR02X6347
424GEN WR09X0359
425GEN WR02X7157
426GEN WR02X3880
426GASKET FOAM
426GEN WR02X4834
427GEN WR23X0316
428GEN WR02X4835
429GEN WR02X4836
430GEN WR17X2209
430CLIP-CONTROL HOUSING
431CAP MULLION DUCT
432GEN WR02X3886
434GEN WR02X4542
435WR2X9391 GE Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
436GEN WR02X7736
442GEN WR02X7035
447GEN WR02X7570
447GEN WR02X7569
448GEN WR13X0577
450GEN WR02X4194
451WR13X10020 GE Refrigerator Door Hinge Assembly with Cam
452GEN WR02X7011
452NUTSTRIP HINGE
455BREAKER STRIP-TOP & BTM.
456RETAINER BREAKER
456BREAKER STRIP-HINGE SIDE
456RETAINER BREAKER
457BREAKER STRIP-FF MULLION
458GEN WR02X4739
458GEN WR02X7031
458GEN WR40X1576
458GEN WR02X7033
470WR2X3139 GE Refrigerator Plug Button
551GEN WZ04X0244
552SCR 12-24 TT HXW 1 3/64S
554GEN WR01X1483
556SCR 8-32 MA TR 1/4 SS
560GEN WR01X1249
563WZ4X241D GE Screw Package
578WZ2X464D GE Screw
609WR23X37285 GE Light Switch
