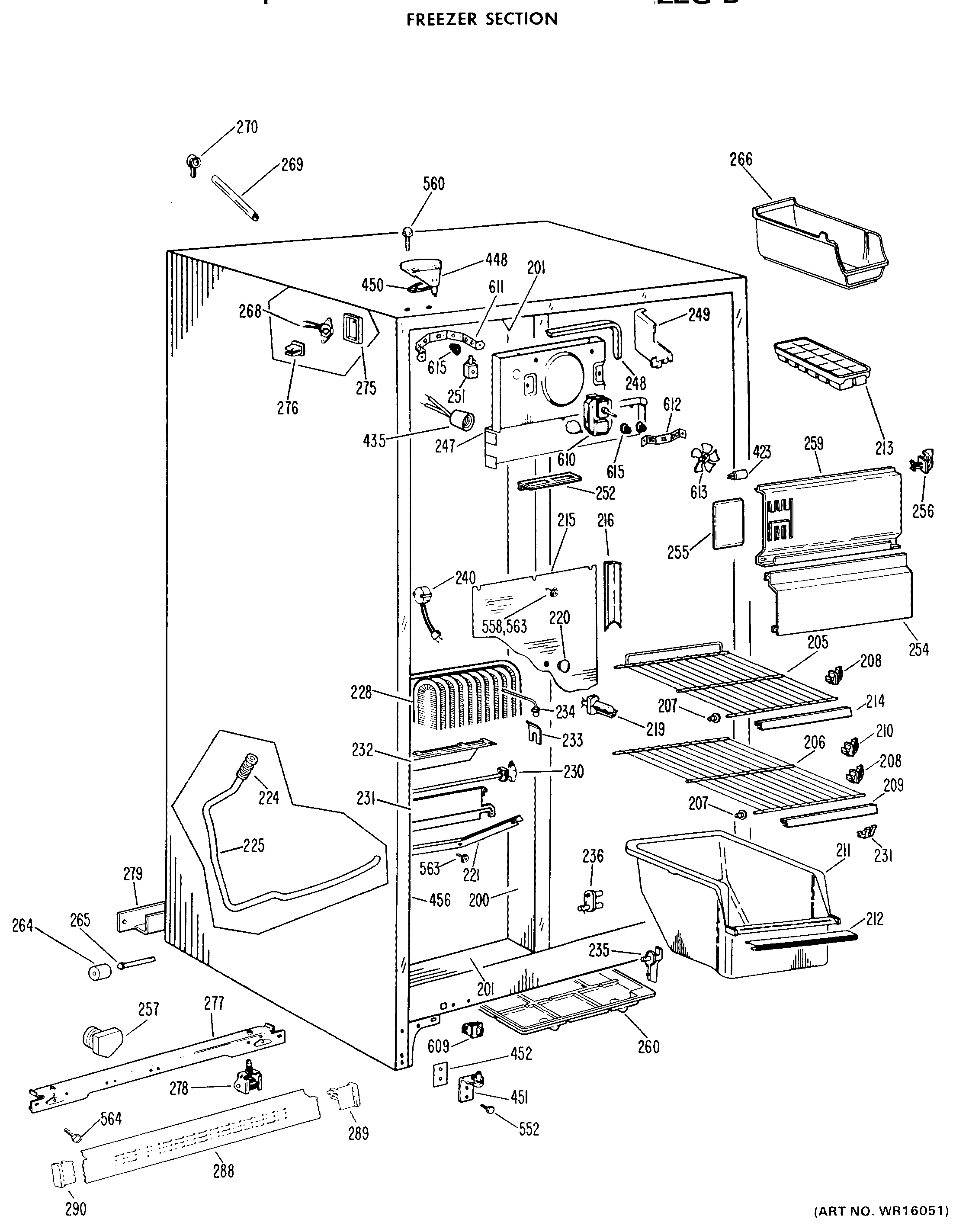

TFX22DGB FREEZER SECTION

TFX22DGB FREEZER SECTION

Written by

in

TFX22DGB FREEZER SECTION

Products

Position	Product
200	BREAKER STRIP-FZ MULLION
201	BREAKER STRIP-TOP & BTM.
205	GEN WR71X1656
206	SHELF FRZ. MOVABLE
207	GEN WR02X4676
208	GEN WR02X4674
209	GEN WR38X1021
209	GEN WR38X1025
210	GEN WR02X7215
211	BASKET FRZ
212	GEN WR17X1979
213	WR30X311 GE Refrigerator Ice Tray
214	GEN WR01X1332
215	GEN WR17X2007
216	GEN WR14X0274
219	GEN WR02X4421
220	PLUG RECESSED
221	TROUGH DRAIN
224	GEN WR02X4967
225	GEN WR02X7088
228	LOW SIDE ASM
230	BRACKET DEF HTR
230	SHIELD DEF HTR END
230	GEN WR51X0231
231	GEN WR02X4944
232	GEN WR02X4971
234	GEN WR02X4546
236	GEN WR02X4548
240	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
247	GEN WR17X1413
248	GEN WR14X0272
249	GEN WR17X1414
251	GEN WR02X2880
252	GEN WR02X7042
254	GEN WR17X1567
255	GEN WR02X6254
256	GEN WR02X4839
257	WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
257	BRACKET DEF CONTROL
259	GEN WR17X1927
260	PAN WATER DISPOSAL ASM
260	GEN WR02X7074
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3598
266	GEN WR30X0198
268	RECEPTACLE-ICEMAKER
270	GEN WR02X7255
270	GEN WR02X3248
275	GEN WR02X4339
276	GEN WR01X1510
277	GEN WR17X1492
278	WHEEL ASM FRT
288	GEN WR74X0189
288	GEN WR02X7079
289	GEN WR02X7154
290	GEN WR02X7155
423	GEN WR02X6350
423	GEN WR02X6347
435	SOCKET LAMP
448	HINGE TOP ASM
450	GEN WR02X4194
451	WR49X5124 GE Refrigerator Hinge and Cam Assembly
456	RETAINER BREAKER
456	BREAKER STRIP-HINGE SIDE
552	SCR 12-24 TT HXW 1 3/64S
558	GEN WZ06X0107
560	GEN WR01X1249
564	GEN WR01X1194
609	WR23X37285 GE Light Switch
610	GEN WR60X0131
611	BRACKET EVAP FAN
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
32767	GEN WR02X4816
