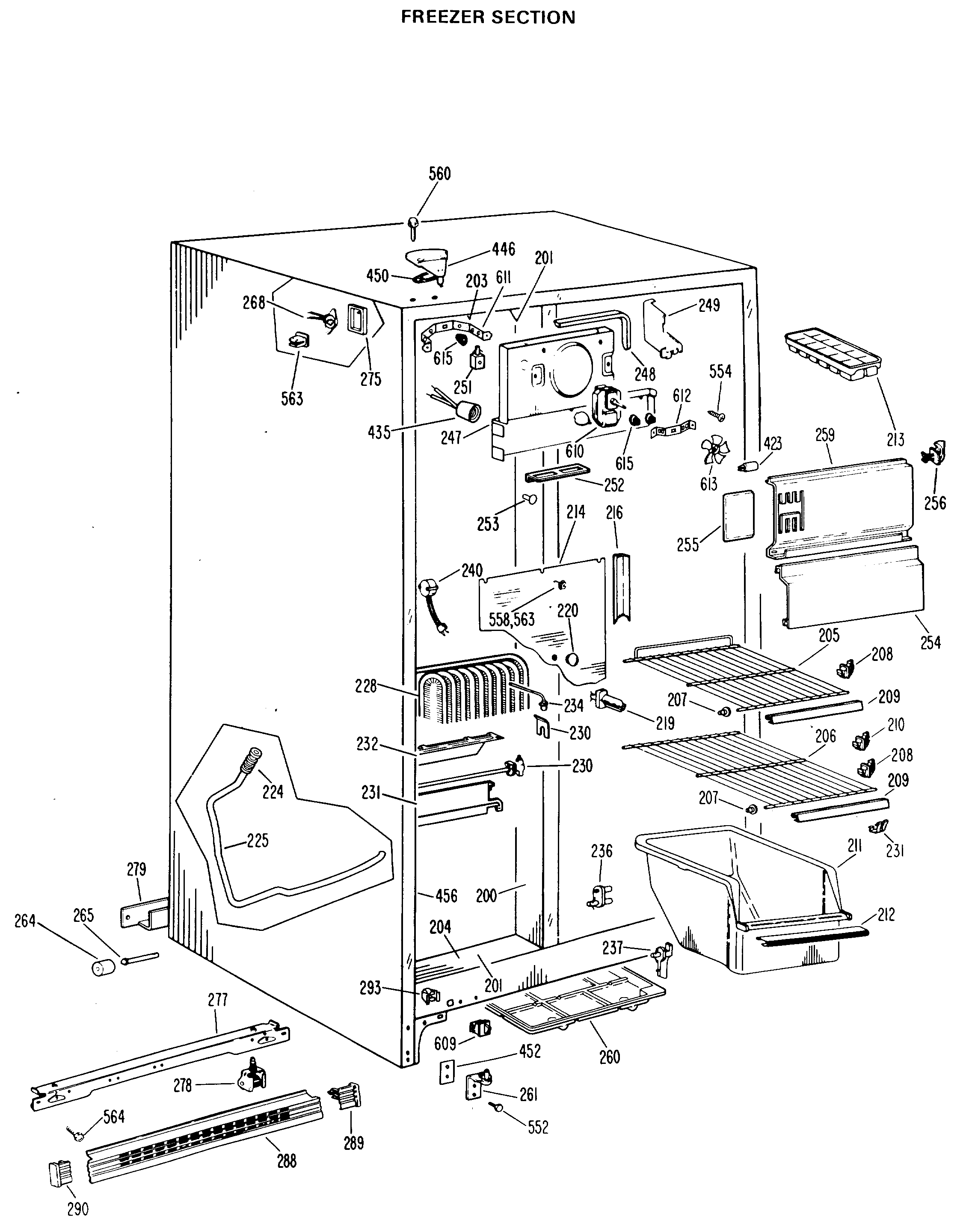

TFX22DKD FREEZER SECTION

TFX22DKD FREEZER SECTION

Written by

in

TFX22DKD FREEZER SECTION

Products

PositionProduct
200BREAKER STRIP-FZ MULLION
201BREAKER STRIP-TOP & BTM.
203RETNR BRKR-TOP FF & FZ
204RETAINER BREAKER-BTM.
205GEN WR71X1656
206SHELF FRZ. MOVABLE
207GEN WR02X4676
208GEN WR02X4674
209GEN WR38X1025
210GEN WR02X7215
211GEN WR21X0161
212GEN WR17X1979
213WR30X311 GE Refrigerator Ice Tray
214GEN WR17X2339
214GEN WR02X7257
216GEN WR14X0274
219GEN WR02X4421
220GEN WR02X7926
224GEN WR02X4967
225GEN WR02X4838
225GEN WR02X7845
228GEN WR02X4982
228GEN WR02X4983
228GEN WR85X0200
230GEN WR51X0231
230SHIELD DEF HTR END
230BRACKET DEF HTR
231GEN WR02X4944
232GEN WR02X4971
234GEN WR02X4546
236GEN WR02X4548
237GEN WR02X7036
240WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
247GEN WR17X1413
248GEN WR14X0272
249GEN WR17X1414
251GEN WR02X2880
252GEN WR02X7042
254GEN WR17X1567
255GEN WR02X6254
256GEN WR02X4839
259GEN WR17X1927
260GEN WR32X0963
261WR13X10020 GE Refrigerator Door Hinge Assembly with Cam
264WR2X3594 GE Refrigerator Wheel
265GEN WR02X3598
265GEN WR02X4742
268GEN WR23X0312
275GEN WR02X4339
277GEN WR17X2119
278WHEEL ASM FRT
279GEN WR17X2343
288GEN WR02X7079
288GEN WR74X0189
289GEN WR02X7154
290GEN WR02X7155
293GEN WR02X7080
423GEN WR02X6350
423GEN WR02X6347
435WR2X9391 GE Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
446GEN WR13X0580
450GEN WR02X4194
452NUTSTRIP HINGE
456RETAINER BREAKER
456BREAKER STRIP-HINGE SIDE
552SCR 12-24 TT HXW 1 3/64S
554GEN WR01X1483
558GEN WZ06X0107
560GEN WR01X1249
563WZ4X241D GE Screw Package
564GEN WR01X1194
609WR23X37285 GE Light Switch
610GEN WR60X0178
611BRACKET EVAP FAN
612BRACKET EVAP FAN
613WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615GEN WR02X2945
