Aparts

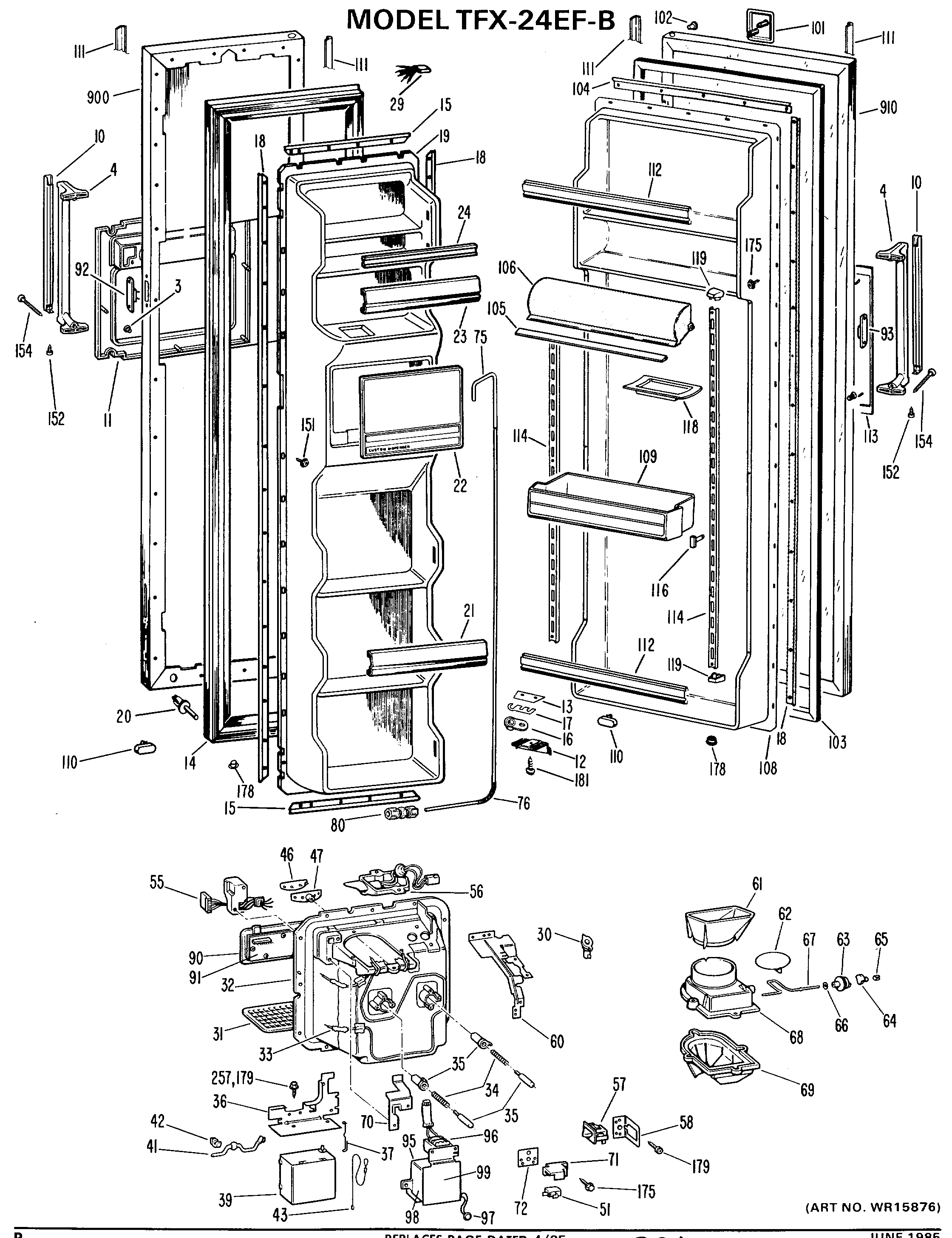

TFX24EFB 0

TFX24EFB 0

Written by

in

TFX24EFB 0

Products

PositionProduct
3GEN WR02X3757
4GEN WR12X0428
4GEN WR02X4573
4GEN WR02X4572
7GEN WR01X1246
10GEN WR12X0524
11GEN WR38X1036
11GEN WR01X5469
12GEN WR02X7213
13GEN WR02X4540
13GEN WR01X0993
13GEN WR02X4599
14GEN WR24X0297
15GEN WR17X1167
16WR2X4901 GE Door Hinge Cam Riser
18GEN WR17X1169
19GEN WR77X0450
20GEN WR23X0161
21GEN WR71X1450
22GEN WR17X2024
23GEN WR71X1449
24GEN WR71X1448
29HARNESS- O DOOR RECESS
30GROMMET WATER FILL RECES
31GEN WR02X3953
32GEN WR17X2023
32GEN WR14X0245
33GEN WR51X0304
34SPRING-RECESS DUCT
35GEN WR02X6325
36GEN WR02X4235
37GEN WR02X4248
39GEN WR09X0268
41GEN WR17X1048
42GEN WR02X4234
43GEN WR02X4069
43LANYARD
46GEN WR02X3950
47GEN WR02X3948
55HARNESS & HOUSING-RECESS
56LAMP 7C7
56INSULATOR HOUSING
56HOUSING & SOCKET AS DISP
57SWITCH-CRADLE-WATER SIDE
58PLATE WATER SW RECESS
60GEN WR02X7244
61GEN WR17X1261
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68DUCT RECESS
68GASKET DUCT-L. SIDE
68GASKET DUCT-R. SIDE
69GEN WR17X5881
70SUPPORT SELECTOR SWITCH
71SUPPORT SW.
72SWITCH SELECT-CUBES DISP
72PLATE MTG-DISP SWITCH
75GEN WR17X1408
76GEN WR02X4633
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
80GEN WR02X4265
87WZ4X241D GE Screw Package
90GEN WR55X0010
91GEN WR02X7313
92GEN WR23X0304
93GEN WR01X1689
93GEN WR02X7236
95BOARD ASM POWER SUPPLY
96TRANSFORMER ASM
97GEN WR52X0023
98HOUSING POWER MODULE
99COVER
101GEN WR03X0408
102GEN WR02X4990
103GEN WR24X0295
104GEN WR17X1168
105GEN WR38X0905
106GEN WR22X0256
108GEN WR77X0392
109GEN WR71X1503
110GEN WR02X4678
111GEN WR38X1037
112GEN WR71X1452
113GEN WR38X1038
114GEN WR17X1391
116GEN WR02X4993
118GEN WR19X5003
119GEN WR02X4992
120GEN WR02X4661
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
152GEN WZ04X0355
153WR1X1505D GE Refrigerator Screw Package of 12
154SCR SPECIAL 10-16
175SCREW SW. CRADLE
178GEN WR02X6058
179SCREW
180GEN WZ05
