TFX24EGC FREEZER DOOR

TFX24EGC FREEZER DOOR

Written by

in

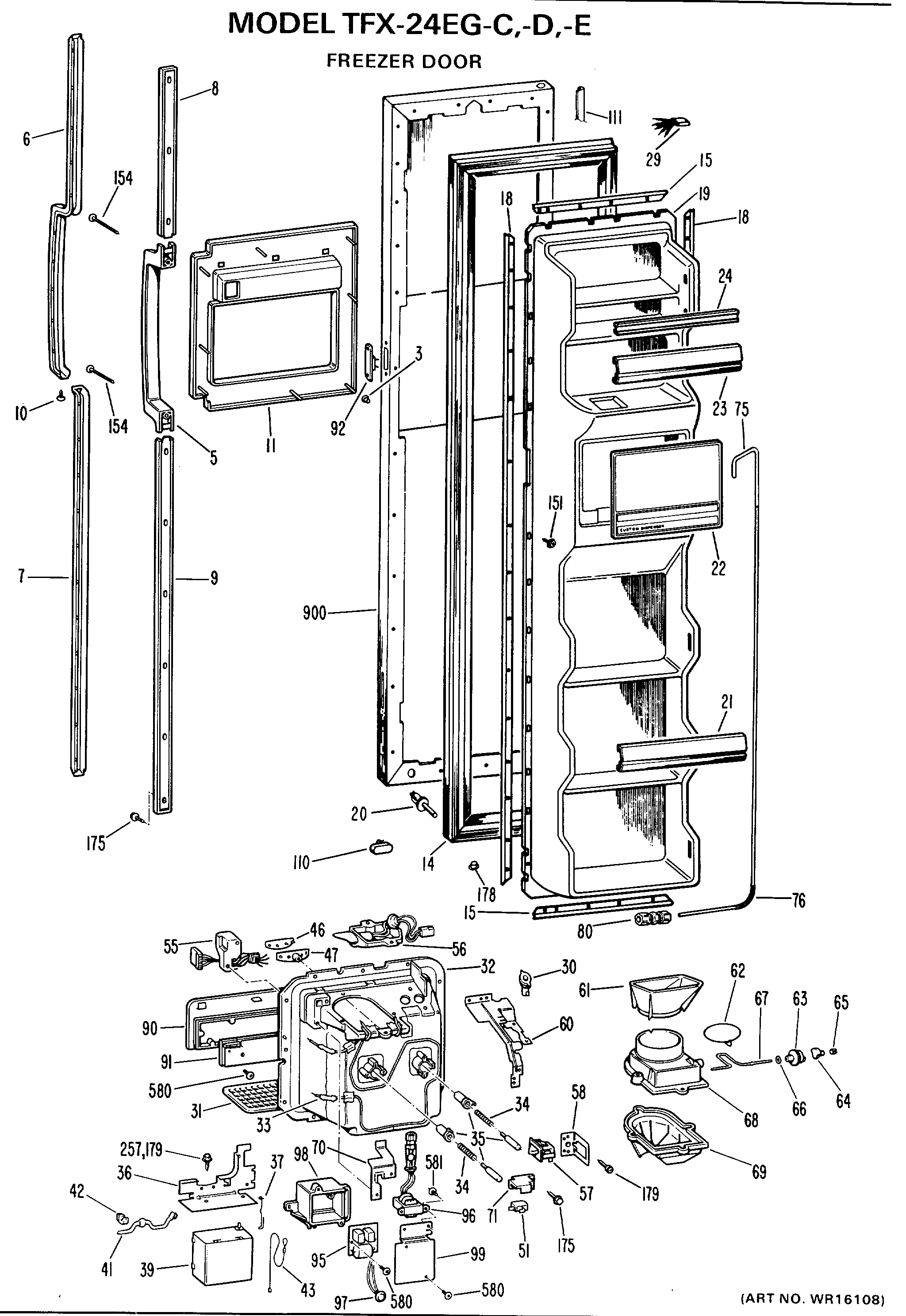

TFX24EGC FREEZER DOOR

Products

Position	Product
3	GEN WR02X3757
5	GEN WR12X0544
6	GEN WR02X7299
6	GEN WR12X0549
7	GEN WR12X0543
7	GEN WR01X1246
8	GEN WR12X0545
9	GEN WR12X0546
10	GEN WR01X1700
11	GEN WR01X5469
11	GEN WR38X1052
13	GEN WR01X0993
14	GEN WR24X0297
15	GEN WR17X1167
18	GEN WR17X1169
19	GEN WR77X0450
20	GEN WR23X0161
21	GEN WR71X1450
22	GEN WR17X2048
22	GEN WR01X1688
23	GEN WR71X1449
24	GEN WR71X1448
29	HARNESS- O DOOR RECESS
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	GEN WR14X0245
32	RECESS DISPENSER(BLACK)
32	GEN WR14X0340
33	GEN WR51X0304
34	SPRING-RECESS DUCT
35	GEN WR02X6325
36	GEN WR02X4235
37	GEN WR02X4248
39	GEN WR09X0268
41	GEN WR17X1048
42	GEN WR02X4234
43	LANYARD
43	GEN WR02X4069
46	GEN WR02X3950
47	GEN WR02X3948
55	HARNESS & HOUSING-RECESS
56	LAMP 7C7
56	HOUSING & SOCKET AS DISP
56	INSULATOR HOUSING
57	SWITCH-CRADLE-WATER SIDE
58	PLATE WATER SW RECESS
60	GEN WR02X7244
61	GEN WR17X1261
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	DUCT RECESS
68	GASKET DUCT-R. SIDE
68	GASKET DUCT-L. SIDE
69	GEN WR17X5881
70	SUPPORT SELECTOR SWITCH
71	SUPPORT SW.
72	PLATE MTG-DISP SWITCH
72	SWITCH SELECT-CUBES DISP
75	GEN WR17X1408
76	GEN WR02X4633
80	GEN WR02X4265
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
87	WZ4X241D GE Screw Package
90	GEN WR55X0015
91	GEN WR02X7314
91	GEN WR55X0014
91	GEN WR02X7313
92	SENSOR DOOR FF & FZ
95	BOARD ASM POWER SUPPLY
96	TRANSFORMER ASM
97	GEN WR52X0023
98	HOUSING POWER MODULE
99	COVER
110	GEN WR02X4678
111	GEN WR38X1037
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153	WR1X1505D GE Refrigerator Screw Package of 12
154	GEN WR01X1701
175	SCREW SW. CRADLE
178	GEN WR02X6058
179	SCREW
180	GEN WZ05X0166
202	RETAINER BREAKER-BTM.
204	RETAINER BREAKER
221	GEN WR02X4545
239	GEN WR23X0303
240	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
253	RIVET POP
257	BRACKET DEF CONTROL
257	SCR 6-32 D TR 3/8 SS
257	WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
276	GEN WR01X1510
361	COVER MOTOR & SOLENOID
372	WR02X11295 GE Refrigerator Auger Motor Boot
386	SCREW TRIM MTG
386	GEN WZ06X0077
395	SHIM HINGE BTM.
