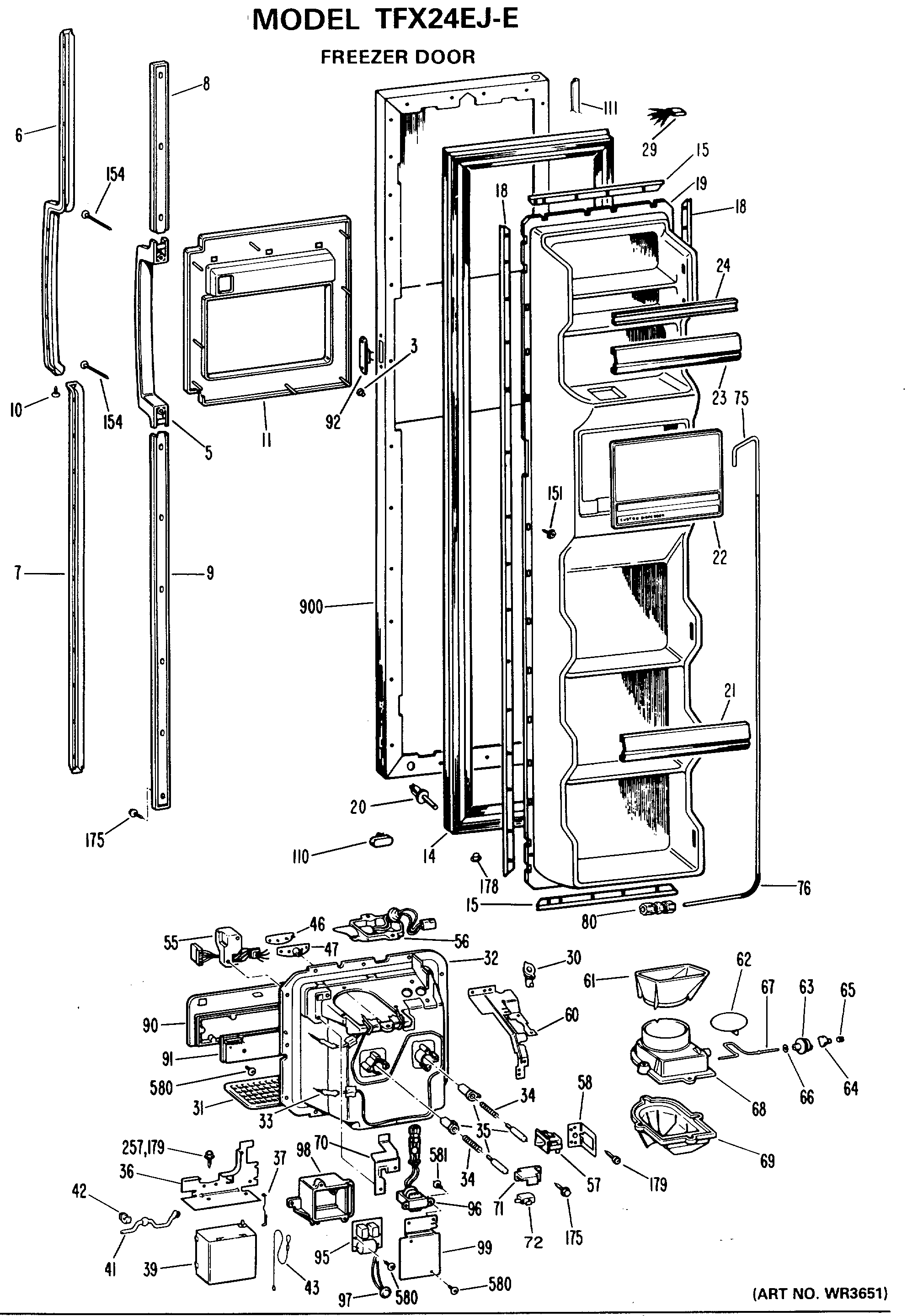

TFX24EJE FREEZER DOOR

TFX24EJE FREEZER DOOR

Written by

in

TFX24EJE FREEZER DOOR

Products

PositionProduct
5GEN WR12X0544
6GEN WR02X7299
6GEN WR12X0549
7GEN WR12X0543
7GEN WR01X1721
9GEN WR12X0546
10GEN WR01X1700
11GEN WR38X1075
11GEN WR01X5469
14GEN WR24X0426
15GEN WR17X1167
18GEN WR17X1169
19GEN WR77X0450
20GEN WR23X0161
21GEN WR71X1450
22GEN WR17X2112
23GEN WR71X1449
24GEN WR71X1448
29HARNESS- O DOOR RECESS
30GROMMET WATER FILL RECES
31GEN WR02X3953
32RECESS DISPENSER(BLACK)
32GEN WR14X0245
33HEATER RECESS & DUCT ASM
34SPRING-RECESS DUCT
35GEN WR02X6325
36GEN WR02X4235
37GEN WR02X4248
39GEN WR09X0268
41GEN WR17X1048
42GEN WR02X4234
43GEN WR02X4069
43LANYARD
46GEN WR02X3950
47GEN WR02X3948
55HARNESS & HOUSING-RECESS
56HOUSING & SOCKET AS DISP
56INSULATOR HOUSING
57SWITCH-CRADLE-WATER SIDE
58PLATE WATER SW RECESS
60GEN WR02X7244
61GEN WR17X1261
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68DUCT RECESS
68GASKET DUCT-R. SIDE
68GASKET DUCT-L. SIDE
69GEN WR17X5881
70SUPPORT SELECTOR SWITCH
72SUPPORT SW.
72PLATE MTG-DISP SWITCH
72SWITCH SELECT-CUBES DISP
75GEN WR17X1408
76GEN WR02X4633
80GEN WR02X4265
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
90GEN WR55X0019
91GEN WR02X7313
91GEN WR02X7314
91BOARD ASM LOGIC
92SENSOR DOOR FF & FZ
95BOARD ASM POWER SUPPLY
96TRANSFORMER ASM
97THERMISTOR & CONN ASM
98HOUSING POWER MODULE
99COVER
110GEN WR02X4678
111GEN WR38X1037
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
154GEN WR01X1701
175SCREW SW. CRADLE
178GEN WR02X6058
179SCREW
257SCR 6-32 D TR 3/8 SS
257GEN WR02X7568
257WR9X502 GE Refrigerator Defrost Timer
580GEN WZ02X0561
581WZ4X44D GE Screw Package
900GEN WR78X7716
