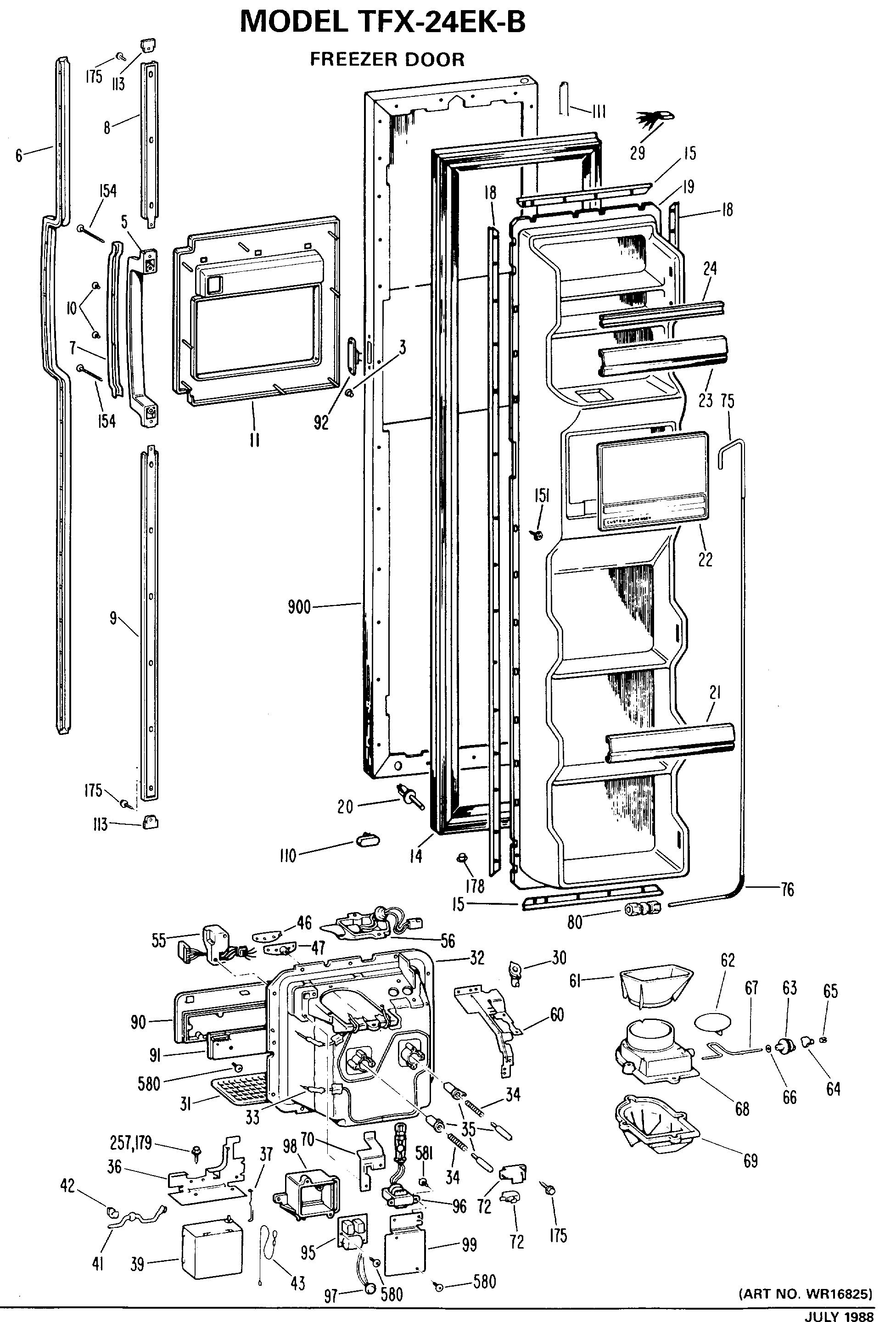

TFX24EKB FREEZER DOOR

TFX24EKB FREEZER DOOR

Written by

in

TFX24EKB FREEZER DOOR

Products

Position	Product
1	GEN 31-5024
2	GEN WR12X0622
3	GEN WR02X3757
5	GEN WR12X0618
7	GEN WR12X0620
8	GEN WR12X0621
9	GEN WR12X0616
10	GEN WR01X1766
11	GEN WR01X5469
11	GEN WR38X1075
14	GEN WR24X0426
15	GEN WR17X1167
18	GEN WR17X1169
19	GEN WR77X0450
20	GEN WR23X0161
21	GEN WR71X1450
22	GEN WR17X2112
23	GEN WR71X1449
24	GEN WR71X1448
29	HARNESS- O DOOR RECESS
29	GEN WR49X0308
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	GEN WR14X0245
32	RECESS DISPENSER(BLACK)
33	HEATER RECESS & DUCT ASM
34	SPRING-RECESS DUCT
35	GEN WR02X6325
36	GEN WR02X4235
37	GEN WR02X4248
39	GEN WR09X0268
41	GEN WR17X1048
42	GEN WR02X4234
43	GEN WR02X4069
43	LANYARD
46	GEN WR02X3950
47	GEN WR02X3948
55	HARNESS & HOUSING-RECESS
56	HOUSING & SOCKET AS DISP
56	LAMP 7C7
56	INSULATOR HOUSING
60	GEN WR02X7244
61	GEN WR17X1261
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	GASKET DUCT-L. SIDE
68	GASKET DUCT-R. SIDE
68	DUCT RECESS
69	GEN WR17X5881
70	SUPPORT SELECTOR SWITCH
72	PLATE MTG-DISP SWITCH
72	SWITCH SELECT-CUBES DISP
72	SUPPORT SW.
75	GEN WR17X1408
76	GEN WR02X4633
80	GEN WR02X4265
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
90	GEN WR55X0019
91	GEN WR02X7313
91	BOARD ASM LOGIC
91	GEN WR02X7314
92	SENSOR DOOR FF & FZ
95	BOARD ASM POWER SUPPLY
96	TRANSFORMER ASM
97	THERMISTOR & CONN ASM
98	HOUSING POWER MODULE
99	COVER
110	GEN WR02X4678
111	GEN WR38X1037
113	GEN WR02X7871
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153	WR1X1505D GE Refrigerator Screw Package of 12
154	GEN WR01X1765
175	SCREW SW. CRADLE
178	GEN WR02X6058
179	SCREW
202	RETAINER BREAKER-BTM.
257	SCR 6-32 D TR 3/8 SS
257	WR9X502 GE Refrigerator Defrost Timer
402	GEN WR38X1305
580	GEN WZ02X0561
581	WZ4X44D GE Screw Package
751	GEN WR17X2088
900	GEN WR78X7716
901	GEN WR78X7717
902	GEN WR78X7718
32767	GEN 49-6405
32767	GEN 49-6536
