TFX24EMA FREEZER DOOR

TFX24EMA FREEZER DOOR

Written by

in

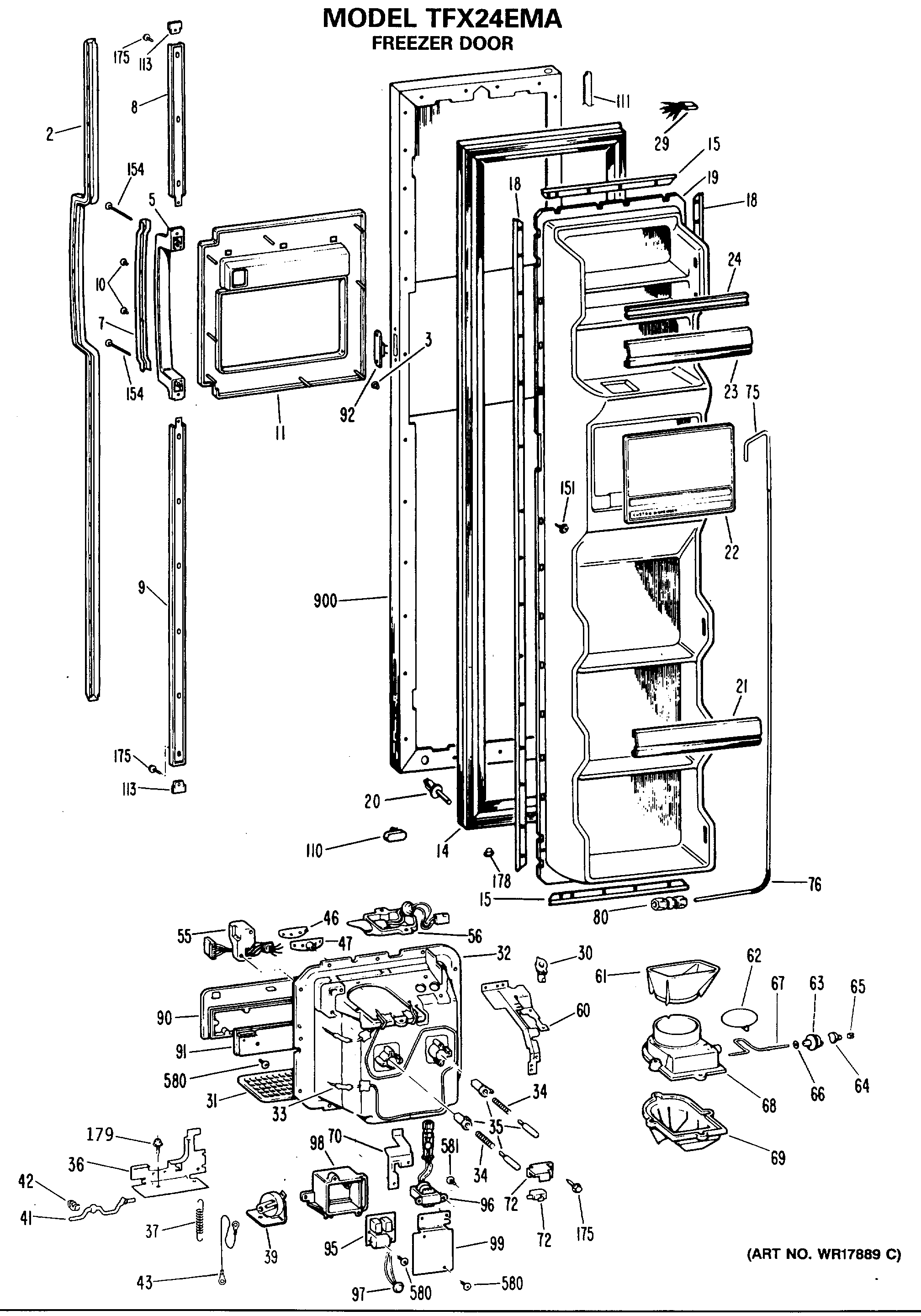

TFX24EMA FREEZER DOOR

Products

Position	Product
1	GEN 49-6619
1	GEN 31-5024
2	GEN WR12X0622
3	GEN WR02X3757
5	GEN WR12X0618
7	GEN WR12X0620
8	GEN WR12X0621
9	GEN WR12X0616
10	GEN WR01X1766
11	GEN WR01X5469
11	GEN WR38X1314
14	GEN WR24X5233
15	GEN WR17X1167
18	GEN WR17X1169
19	GEN WR77X0525
20	GEN WR23X0161
21	GEN WR17X2508
22	GEN WR17X2504
23	GEN WR17X2509
24	GEN WR17X2510
29	HARNESS- O DOOR RECESS
29	GEN WR49X0308
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	RECESS DISPENSER(BLACK)
32	GEN WR14X0403
33	HEATER RECESS & DUCT ASM
34	SPRING-RECESS DUCT
35	GEN WR02X6325
36	GEN WR02X8414
37	GEN WR02X8403
39	GEN WR09X0506
41	GEN WR17X2820
42	GEN WR02X4234
43	WR2X8441 GE Refrigerator Lanyard Assembly
46	GEN WR02X8471
47	GEN WR02X3948
55	HARNESS & HOUSING-RECESS
56	INSULATOR HOUSING
56	LAMP 7C7
56	GEN WR02X7910
60	GEN WR02X7244
61	GEN WR17X1261
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	DUCT RECESS
68	GASKET DUCT-L. SIDE
68	GASKET DUCT-R. SIDE
69	GEN WR17X5881
72	SWITCH SELECT-CUBES DISP
72	GEN WR02X7942
75	GEN WR17X1408
76	GEN WR02X4633
80	GEN WR02X4265
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
90	GEN WR55X0024
91	GEN WR02X7313
91	BOARD ASM LOGIC
91	GEN WR02X7314
92	SENSOR DOOR FF & FZ
95	BOARD ASM POWER SUPPLY
96	TRANSFORMER ASM
97	THERMISTOR & CONN ASM
98	HOUSING POWER MODULE
99	COVER
110	GEN WR02X4678
111	GEN WR38X1425
113	GEN WR02X7871
118	GEN WR19X5003
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153	WR1X1505D GE Refrigerator Screw Package of 12
154	GEN WR01X1765
175	SCREW SW. CRADLE
179	SCREW
211	GEN WR21X0170
258	GEN WR17X1424
260	GEN WR32X1125
325	WR17X2061 GE Refrigerator Crush Dispenser
326	GEN WR01X1366
326	WR1X1367D GE Refrigerator Return Package 12
326	GEN WR01X1585
328	DEFLECTOR ICE DISP
328	WR2X4143 GE Refrigerator Pivot
328	GEN WR02X4561
329	WIRE ACTUATOR DISP
330	GEN WR02X4145
331	GEN WR02X4251
332	WR17X1361 GE Refrigerator Blades Moving Display
333	WR17X1362 GE Refrigerator Middle Blade
334	WR17X1363 GE Refrigerator Blades Moving Display
335	GEN WR02X4139
336	GEN WR17X1009
337	WR2X4138 GE Refrigerator Spacer
338	WR2X4140 GE Refrigerator Blade Rest
339	GEN WR02X4141
340	WR17X2058 GE Refrigerator Dispenser Blade
345	PLATE FRONT DISP
580	GEN WZ02X0561
581	GEN WZ04X039
