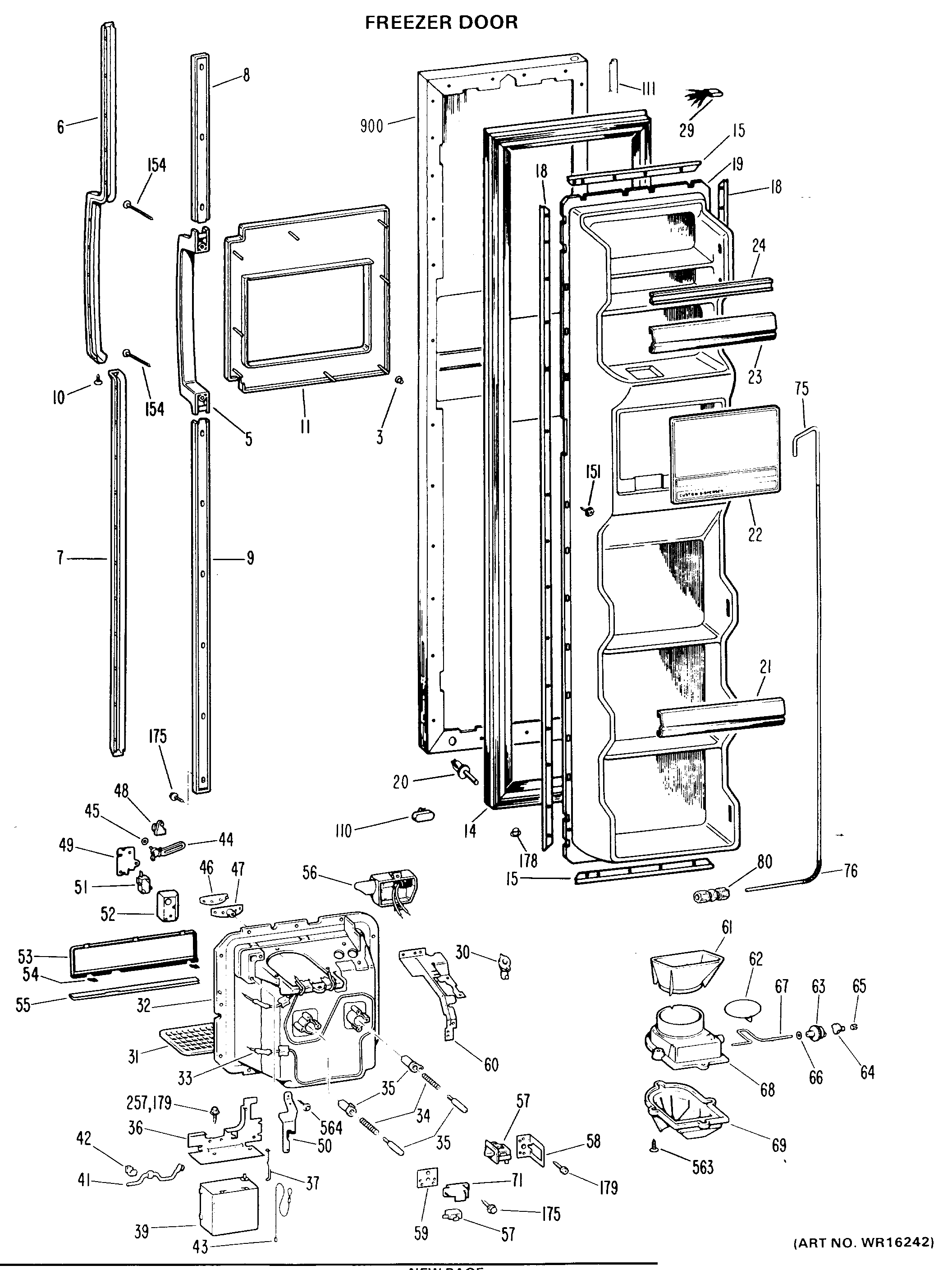

TFX24RHB FREEZER DOOR

TFX24RHB FREEZER DOOR

Written by

in

TFX24RHB FREEZER DOOR

Products

Position	Product
3	GEN WR02X3757
5	GEN WR12X0544
6	GEN WR02X7299
6	GEN WR12X0549
7	GEN WR12X0543
7	GEN WR01X1721
8	GEN WR12X0545
9	GEN WR12X0546
10	GEN WR01X1700
11	GEN WR01X5469
11	GEN WR38X1076
14	GEN WR24X0426
15	GEN WR17X1167
18	GEN WR17X1169
19	GEN WR77X0450
20	GEN WR23X0161
21	GEN WR71X1450
22	GEN WR17X1458
23	GEN WR71X1449
24	GEN WR71X1448
29	GEN WR49X5102
29	HARNESS RECESS
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	RECESS DISPENSER (BLK)
32	GEN WR14X0245
33	GEN WR51X0260
34	SPRING-RECESS DUCT
35	GEN WR02X6325
36	GEN WR02X4235
37	GEN WR02X4248
39	GEN WR09X0268
41	GEN WR17X1048
42	GEN WR02X4234
43	GEN WR02X4069
43	LANYARD
44	GEN WR02X4460
45	GEN WR02X4240
46	GEN WR02X3950
47	GEN WR02X3948
48	GEN WR02X7355
49	GEN WR02X4242
50	GEN WR17X1259
52	GEN WR02X4459
53	GEN WR17X2067
54	GEN WR02X4231
55	GEN WR38X0844
56	GEN WR02X3959
56	INSULATOR HOUSING
56	LAMP 7C7
57	SWITCH-CRADLE-WATER SIDE
58	PLATE WATER SW RECESS
59	GEN WR02X4244
60	GEN WR02X7244
61	GEN WR17X1261
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	GASKET DUCT-L. SIDE
68	DUCT RECESS
68	GASKET DUCT-R. SIDE
69	GEN WR17X5881
71	SUPPORT SW.
72	SWITCH SELECT-CUBES DISP
72	PLATE MTG-DISP SWITCH
75	GEN WR17X1408
76	GEN WR02X4633
80	GEN WR02X4265
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
87	WZ4X241D GE Screw Package
110	GEN WR02X4678
111	GEN WR38X1037
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153	WR1X1505D GE Refrigerator Screw Package of 12
154	GEN WR01X1701
175	SCREW SW. CRADLE
177	SCREW
178	GEN WR02X6058
179	SCREW
180	GEN WZ05X0166
239	GEN WR23X0314
247	GEN WR17X2134
257	BRACKET DEF CONTROL
257	WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
257	SCR 6-32 D TR 3/8 SS
276	GEN WR01X1510
386	GEN WZ06X0077
386	SCREW TRIM MTG
402	GEN WR38X1305
424	GEN WR09X0359
435	WR2X9391 GE Socket and Terminal
435	RANGE ONLY 40W 120V APPL BULB
442	GEN WR02X3884
442	KNOB CONTROL
452	GEN WR02X7190
461	GEN WZ06X0136
562	GEN WX05X0558
563	GEN WZ04
563	GEN WR01X1326
