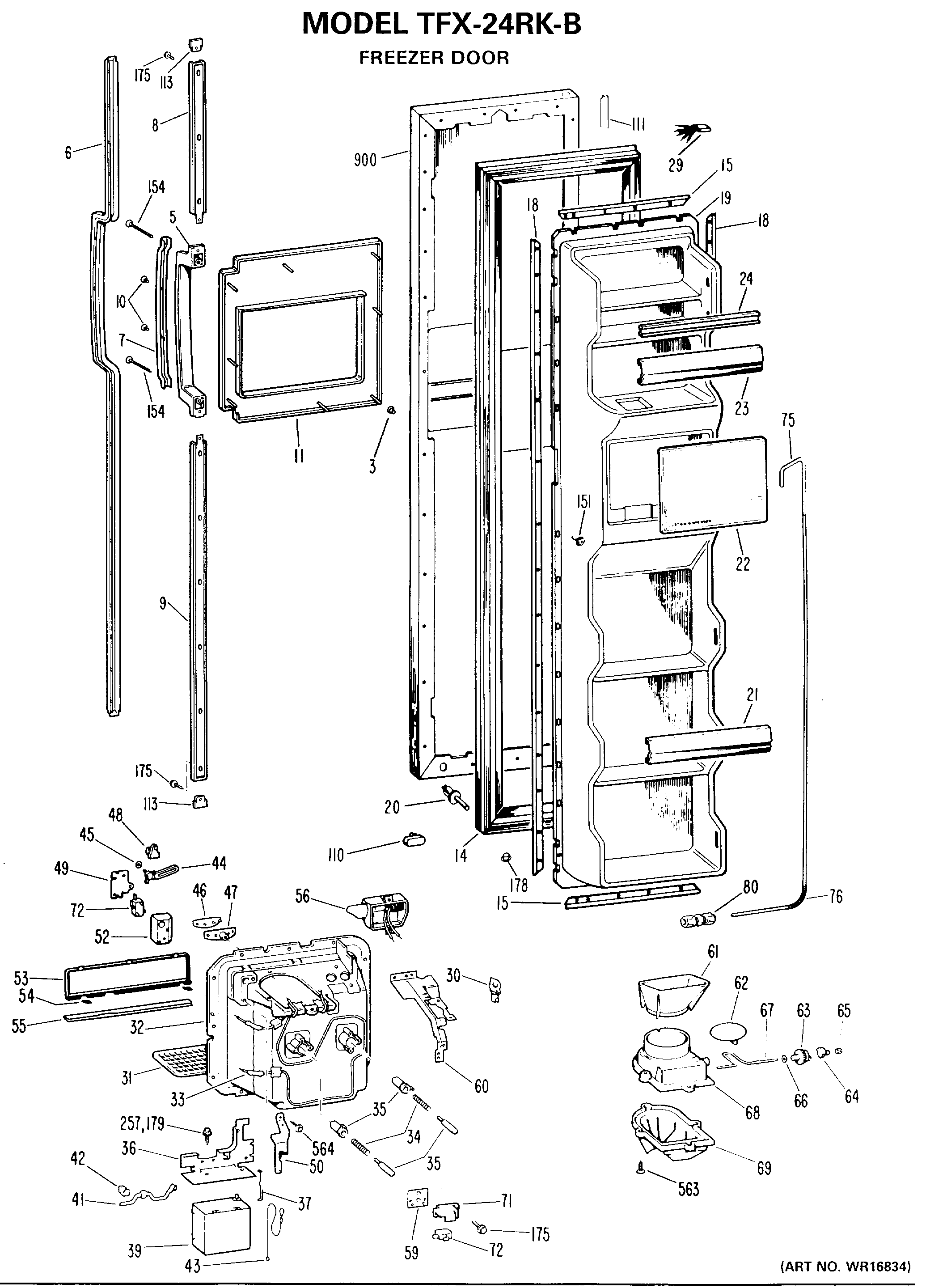

TFX24RKB FREEZER DOOR

TFX24RKB FREEZER DOOR

Written by

in

TFX24RKB FREEZER DOOR

Products

PositionProduct
1GEN 31-5024
2GEN WR12X0622
3GEN WR02X3757
5GEN WR12X0618
7GEN WR12X0620
8GEN WR12X0621
9GEN WR12X0616
10GEN WR01X1766
11GEN WR01X5469
11GEN WR38X1081
12GEN WR02X7213
14GEN WR24X0426
15GEN WR17X1167
18GEN WR17X1169
19GEN WR77X0450
20GEN WR23X0161
21GEN WR71X1450
22GEN WR17X1458
23GEN WR71X1449
24GEN WR71X1448
29GEN WR49X5102
29GEN WR49X0308
29HARNESS RECESS
30GROMMET WATER FILL RECES
31GEN WR02X3953
32GEN WR14X0245
32RECESS DISPENSER (BLK)
33HEATER RECESS & DUCT ASM
34SPRING-RECESS DUCT
35GEN WR02X6325
36GEN WR02X4235
37GEN WR02X4248
39GEN WR09X0268
41GEN WR17X1048
42GEN WR02X4234
43LANYARD
43GEN WR02X4069
44GEN WR02X4460
45GEN WR02X4240
46GEN WR02X3950
47GEN WR02X3948
48GEN WR02X7636
49GEN WR02X4242
50GEN WR17X1259
52GEN WR02X4459
53GEN WR17X2067
54GEN WR02X4231
55GEN WR38X0844
56GEN WR02X3959
56INSULATOR HOUSING
56LAMP 7C7
59GEN WR02X4244
60GEN WR02X7244
61GEN WR17X1261
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68GASKET DUCT-L. SIDE
68GASKET DUCT-R. SIDE
68DUCT RECESS
69GEN WR17X5881
72SUPPORT SW.
72PLATE MTG-DISP SWITCH
72SWITCH SELECT-CUBES DISP
75GEN WR17X1408
76GEN WR02X4633
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
80GEN WR02X4265
110GEN WR02X4678
111GEN WR38X1037
113GEN WR02X7871
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153WR1X1505D GE Refrigerator Screw Package of 12
154GEN WR01X1765
175SCREW SW. CRADLE
178GEN WR02X6058
179SCREW
202RETAINER BREAKER-BTM.
214GEN WR02X7257
257WR9X502 GE Refrigerator Defrost Timer
257SCR 6-32 D TR 3/8 SS
362GEN WR02X4587
402GEN WR38X1305
472GEN WR38X0954
563WZ4X241D GE Screw Package
564GEN WR01X1194
759GEN WR02X7394
900GEN WR78X7748
900GEN WR78X7746
901GEN WR78X7747
910GEN WR78X7902
912GEN WR78X7903
32767GEN 49-6405
32767GEN 49-6538
