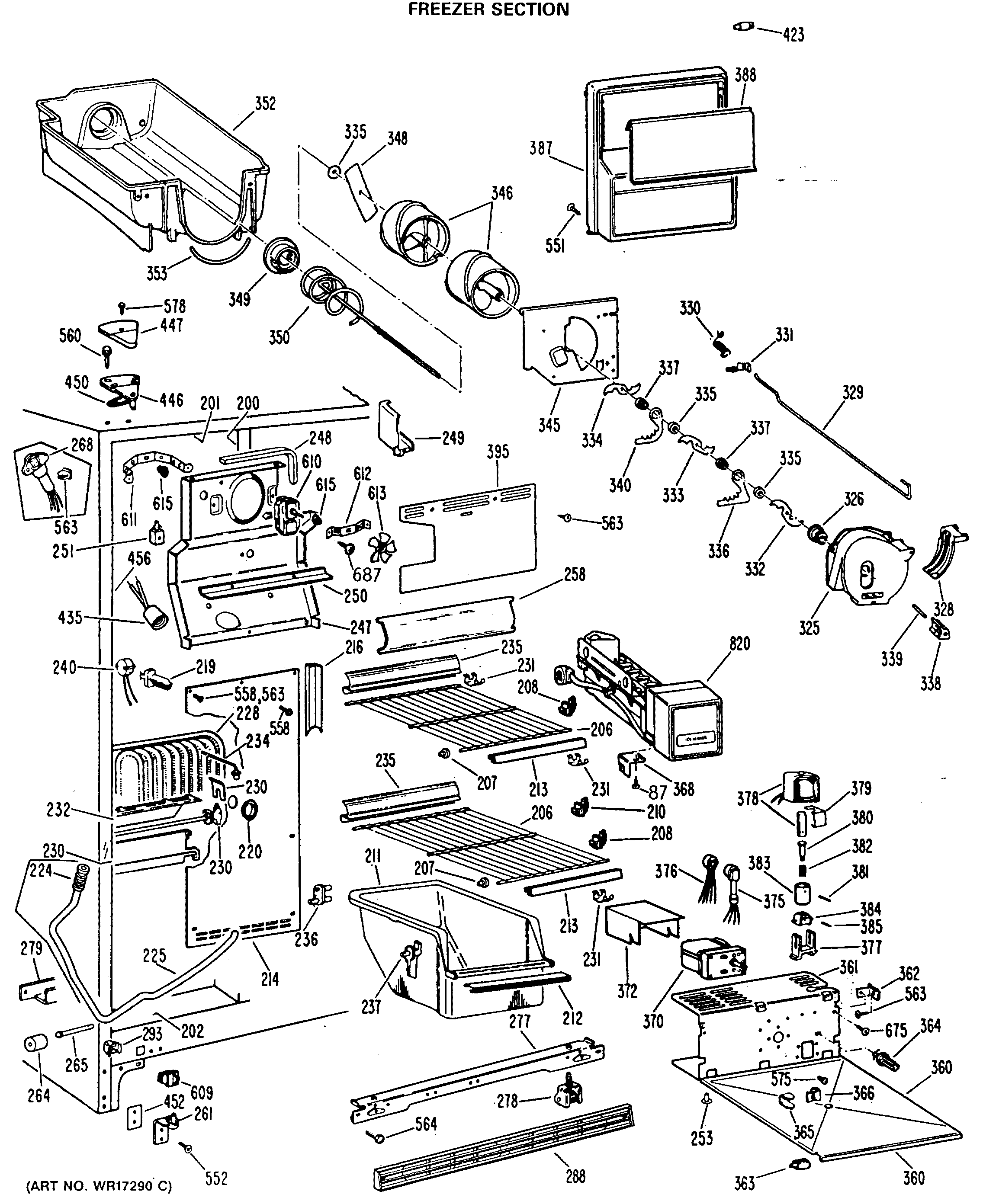

TFX24VLL FREEZER SECTION

TFX24VLL FREEZER SECTION

Written by

in

TFX24VLL FREEZER SECTION

Products

Position	Product
87	WZ4X241D GE Screw Package
200	GEN WR40X1641
201	GEN WR40X1638
202	GEN WR40X1637
206	WR71X1936 GE Freezer Wire Shelf
207	GEN WR02X4676
208	GEN WR02X4674
210	GEN WR02X7215
211	GEN WR21X0170
212	GEN WR17X2513
213	GEN WR38X1316
214	GEN WR14X0274
214	GEN WR17X2130
214	GEN WR02X7257
219	GEN WR02X4421
220	GEN WR02X7926
224	GEN WR02X4967
225	GEN WR02X4838
225	GEN WR02X8293
228	GEN WR85X0201
228	GEN WR02X4983
228	GEN WR02X4982
230	GEN WR02X4557
230	SHIELD DEF HTR END
230	GEN WR51X0258
231	GEN WR02X4944
231	GEN WR02X3440
232	GEN WR02X4970
234	GEN WR02X4546
235	GEN WR38X1436
236	GEN WR02X4548
237	GEN WR02X7036
240	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
247	GEN WR17X2134
247	GEN WR02X4845
248	GEN WR14X0272
249	GEN WR17X1414
250	GEN WR02X7945
251	GEN WR02X2880
258	GEN WR17X1424
261	WR13X10020 GE Refrigerator Door Hinge Assembly with Cam
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X4742
265	GEN WR02X3598
268	GEN WR23X0312
277	GEN WR17X2113
278	WHEEL ASM FRT
279	UNKNOWN
288	GEN WR74X0199
293	GEN WR02X7080
325	WR17X2061 GE Refrigerator Crush Dispenser
326	GEN WR01X1366
326	GEN WR01X1585
326	WR1X1367D GE Refrigerator Return Package 12
328	GEN WR02X4561
328	WR2X4143 GE Refrigerator Pivot
328	DEFLECTOR ICE DISP
329	WIRE ACTUATOR DISP
330	GEN WR02X4145
331	GEN WR02X4251
332	WR17X1361 GE Refrigerator Blades Moving Display
333	WR17X1362 GE Refrigerator Middle Blade
334	WR17X1363 GE Refrigerator Blades Moving Display
335	GEN WR02X4139
336	GEN WR17X1009
337	WR2X4138 GE Refrigerator Spacer
338	WR2X4140 GE Refrigerator Blade Rest
339	GEN WR02X4141
340	WR17X2058 GE Refrigerator Dispenser Blade
345	PLATE FRONT DISP
346	HELIX FRONT-DISP
346	HELIX REAR-DISP
348	GEN WR02X7351
349	WR2X4550 GE Refrigerator Drive Cup
350	GEN WR17X2054
352	WR30X256 GE Refrigerator Ice Dispenser
353	WR2X7905 GE Refrigerator Bucket Seal
360	GEN WR71X1874
360	GEN WR02X4566
361	COVER MOTOR & SOLENOID
362	GEN WR02X7936
363	GEN WR02X4465
364	GEN WR02X7310
365	GEN WR02X4854
366	GEN WR01X1547
368	GEN WR02X7311
370	MOTOR AUGER DISP
370	WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
372	WR02X11295 GE Refrigerator Auger Motor Boot
375	GEN WR23X0194
376	GEN WR23X0189
377	WR2X7309 GE Refrigerator Solenoid Cushion
381	WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
382	WR62X26536 GE Refrigerator Armature Kit
387	GEN WR17X2690
388	GEN WR17X2064
388	GEN WR38
