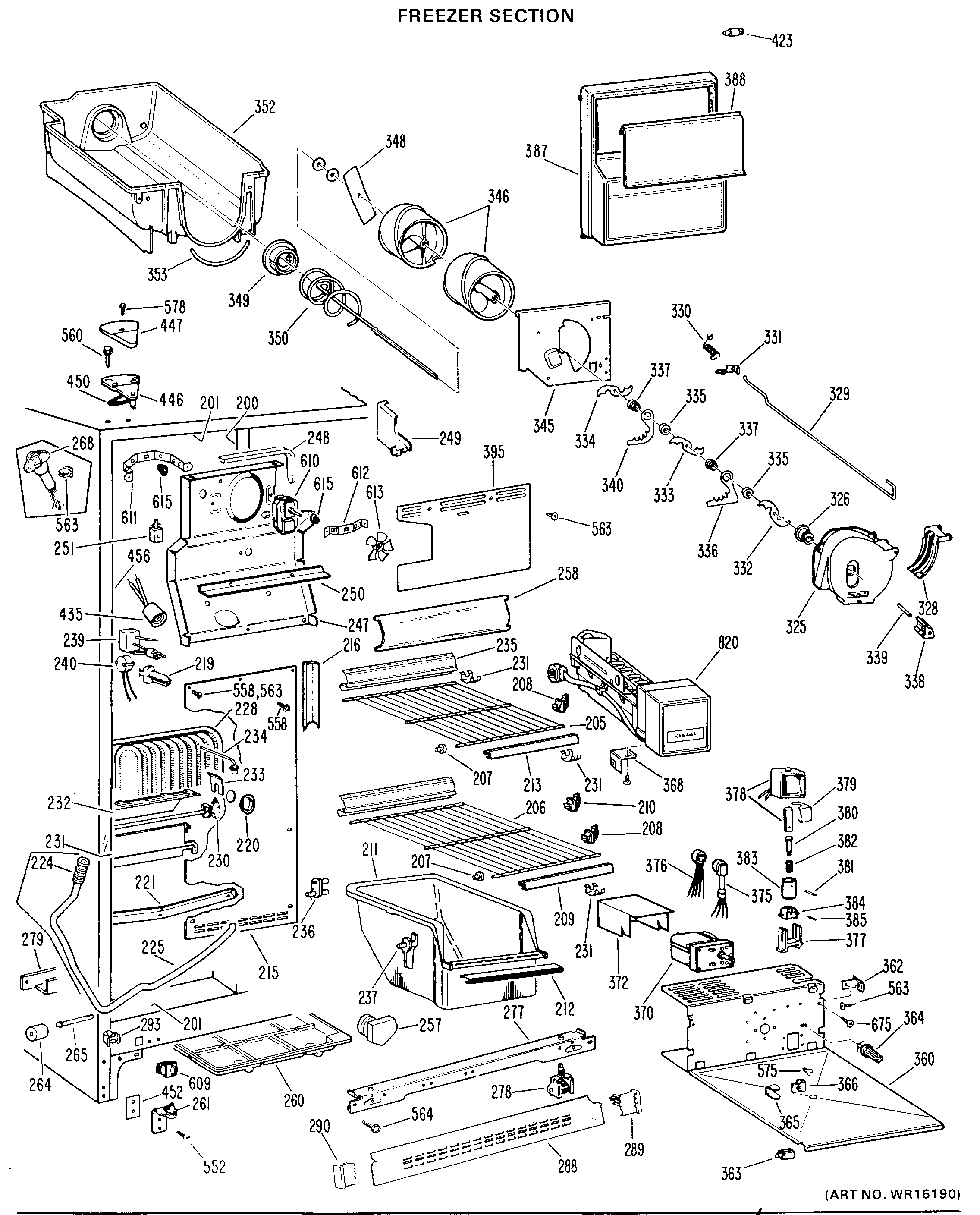

TFX27EHD FREEZER SECTION

TFX27EHD FREEZER SECTION

Written by

in

TFX27EHD FREEZER SECTION

Products

PositionProduct
200GEN WR40X1612
201GEN WR40X1613
205GEN WR71X1649
206GEN WR71X1648
207GEN WR02X4676
208GEN WR02X4674
209GEN WR38X1022
210GEN WR02X7215
211GEN WR21X0119
212GEN WR17X1980
213GEN WR38X1023
214GEN WR17X2097
214GEN WR01X1332
214GEN WR14X0274
215CLIP EVAP COVER
219GEN WR02X4421
220PLUG RECESSED
221GEN WR17X1245
224GEN WR02X4967
225GEN WR02X4838
225GEN WR01X5042
225GEN WR17X2114
228GEN WR02X4983
228GEN WR02X4982
228GEN WR85X0201
230GEN WR02X4557
230GEN WR51X0258
230SHIELD DEF HTR END
231GEN WR02X3440
231GEN WR02X4944
232GEN WR02X4970
234GEN WR02X4546
236GEN WR02X4548
237GEN WR02X7036
239GEN WR23X0313
240WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
247GEN WR02X4845
248GEN WR14X0272
249GEN WR17X1414
251GEN WR02X2880
257SCR 6-32 D TR 3/8 SS
257BRACKET DEF CONTROL
257WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
258GEN WR17X1424
261GEN WR13X0574
264WR2X3594 GE Refrigerator Wheel
265GEN WR02X3598
265GEN WR02X4742
268GEN WR23X0307
277GEN WR17X2113
278WHEEL ASM FRT
279GEN WR17X2098
288GEN WR74X0188
288GEN WR02X7079
289GEN WR02X7474
290GEN WR02X7475
293GEN WR02X7080
325WR17X2061 GE Refrigerator Crush Dispenser
326GEN WR01X1585
326WR1X1367D GE Refrigerator Return Package 12
326GEN WR01X1366
328GEN WR02X4561
328WR2X4143 GE Refrigerator Pivot
328DEFLECTOR ICE DISP
329WIRE ACTUATOR DISP
330GEN WR02X4145
331GEN WR02X4251
332WR17X1361 GE Refrigerator Blades Moving Display
333WR17X1362 GE Refrigerator Middle Blade
334WR17X1363 GE Refrigerator Blades Moving Display
335GEN WR02X4139
336GEN WR17X1009
337WR2X4138 GE Refrigerator Spacer
338WR2X4140 GE Refrigerator Blade Rest
339GEN WR02X4141
340WR17X2058 GE Refrigerator Dispenser Blade
345PLATE FRONT DISP
346HELIX FRONT-DISP
346HELIX REAR-DISP
348GEN WR02X7351
349WR2X4550 GE Refrigerator Drive Cup
350GEN WR17X2054
352WR30X256 GE Refrigerator Ice Dispenser
353WR2X7905 GE Refrigerator Bucket Seal
360GEN WR02X4566
360SHELF BUCKET BTM DISPLAY
362GEN WR02X4587
363GEN WR02X4465
364GEN WR02X7310
365GEN WR02X4854
366GEN WR01X1547
368GEN WR02X7311
370MOTOR AUGER DISP
372WR02X11295 GE Refrigerator Auger Motor Boot
375GEN WR23X0194
377WR2X7309 GE Refrigerator Solenoid Cushion
381WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
382WR62X26536 GE Refrigerator Armature Kit
384SLIDE R/S MEAT PAN
