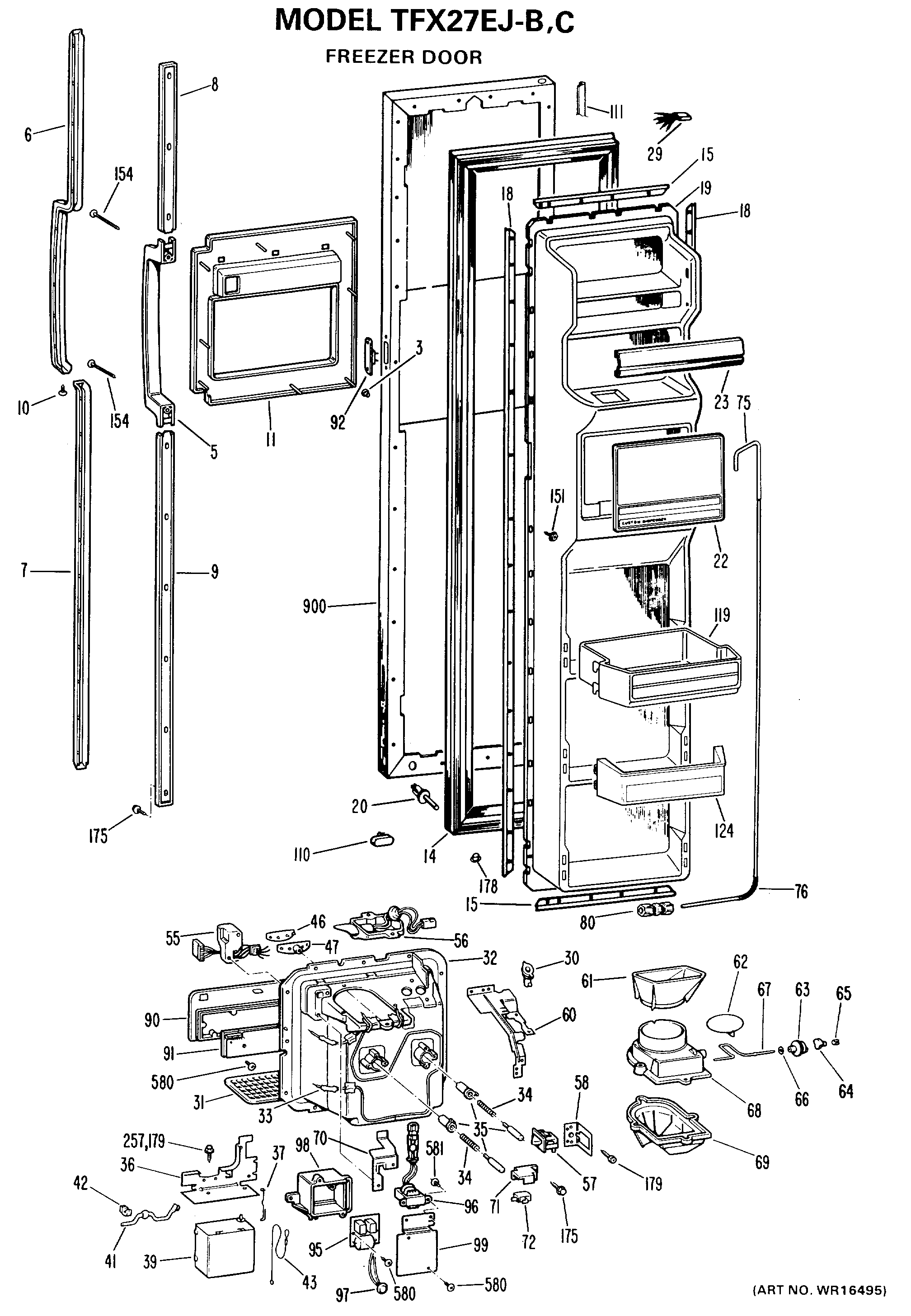

TFX27EJB FREEZER DOOR

TFX27EJB FREEZER DOOR

Written by

in

TFX27EJB FREEZER DOOR

Products

Position	Product
3	GEN WR02X3757
5	GEN WR12X0544
6	GEN WR02X7299
6	GEN WR12X0550
7	GEN WR01X1721
7	GEN WR12X0543
8	GEN WR12X0551
9	GEN WR12X0546
10	GEN WR01X1700
11	GEN WR01X5469
11	GEN WR38X1075
14	GEN WR24X0420
15	GEN WR17X1167
18	GEN WR17X2092
19	GEN WR77X0465
20	GEN WR23X0161
22	GEN WR17X2112
23	GEN WR71X1737
29	GEN WR49X0308
29	HARNESS- O DOOR RECESS
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	GEN WR14X0245
32	RECESS DISPENSER(BLACK)
33	HEATER RECESS & DUCT ASM
34	SPRING-RECESS DUCT
35	GEN WR02X6325
36	GEN WR02X4235
37	GEN WR02X4248
39	GEN WR09X0268
41	GEN WR17X1048
42	GEN WR02X4234
43	GEN WR02X4069
43	LANYARD
46	GEN WR02X3950
47	GEN WR02X3948
55	HARNESS & HOUSING-RECESS
56	LAMP 7C7
56	INSULATOR HOUSING
56	HOUSING & SOCKET AS DISP
57	SWITCH-CRADLE-WATER SIDE
58	PLATE WATER SW RECESS
60	GEN WR02X7244
61	GEN WR17X2093
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	DUCT RECESS
68	GASKET DUCT-R. SIDE
68	GASKET DUCT-L. SIDE
69	GEN WR17X5881
70	SUPPORT SELECTOR SWITCH
72	PLATE MTG-DISP SWITCH
72	SUPPORT SW.
72	SWITCH SELECT-CUBES DISP
75	GEN WR17X1408
76	GEN WR02X4633
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
80	GEN WR02X4265
87	WZ4X241D GE Screw Package
90	GEN WR55X0019
91	GEN WR02X7314
91	GEN WR02X7313
91	BOARD ASM LOGIC
92	SENSOR DOOR FF & FZ
95	BOARD ASM POWER SUPPLY
96	TRANSFORMER ASM
97	THERMISTOR & CONN ASM
98	HOUSING POWER MODULE
99	COVER
110	GEN WR02X4678
111	GEN WR38X1072
119	GEN WR71X1754
124	GEN WR71X1755
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153	WR1X1505D GE Refrigerator Screw Package of 12
154	GEN WR01X1701
175	SCREW SW. CRADLE
177	SCREW
178	GEN WR02X6058
179	SCREW
202	RETAINER BREAKER-BTM.
204	RETAINER BREAKER
221	GEN WR02X4545
253	RIVET POP
257	WR9X502 GE Refrigerator Defrost Timer
257	SCR 6-32 D TR 3/8 SS
257	GEN WR02X7568
276	GEN WR01X1510
361	COVER MOTOR & SOLENOID
386	SCREW TRIM MTG
386	GEN WZ06X0077
402	GEN WR38X1305
415	GEN WR32X0676
435	RANGE ONLY 40W 120V APPL BULB
435	WR2X9391 GE Socket and Terminal
442	KNOB CONTROL
442	GEN WR02X3884
458	SHIM HINGE BTM.
