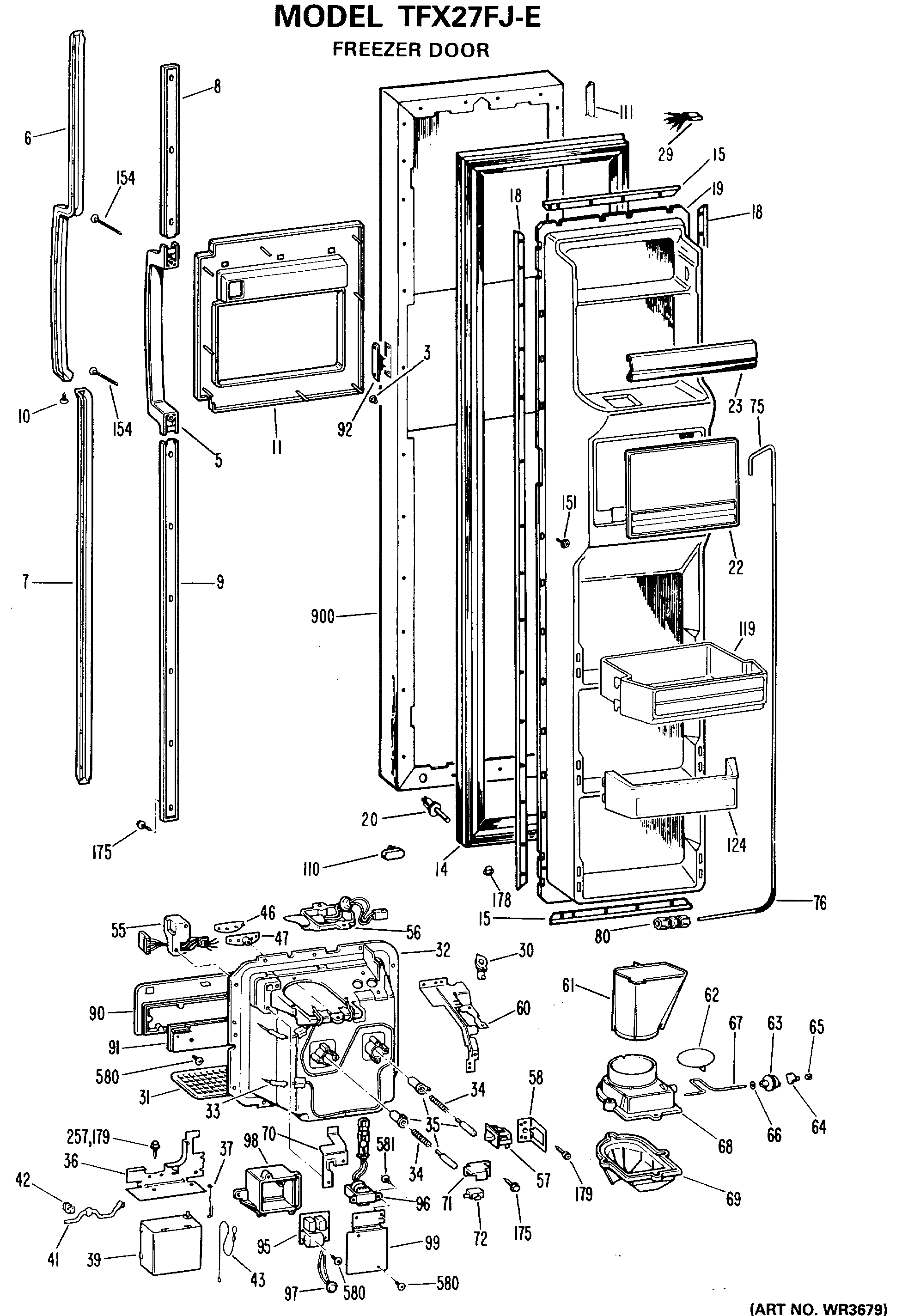

TFX27FJE FREEZER DOOR

TFX27FJE FREEZER DOOR

Written by

in

TFX27FJE FREEZER DOOR

Products

PositionProduct
3GEN WR02X3757
5GEN WR12X0544
6GEN WR12X0550
6GEN WR02X7299
7GEN WR12X0543
7GEN WR01X1721
8GEN WR12X0551
9GEN WR12X0546
10GEN WR01X1700
11GEN WR38X1075
11GEN WR01X5469
14GEN WR24X0420
15GEN WR17X1167
18GEN WR17X2092
19GEN WR77X0465
20GEN WR23X0161
22GEN WR17X2112
23GEN WR71X1737
28CLIP SPEED
29GEN WR49X0308
29HARNESS- O DOOR RECESS
30GROMMET WATER FILL RECES
31GEN WR02X3953
32RECESS DISPENSER(BLACK)
32GEN WR14X0245
33HEATER RECESS & DUCT ASM
34SPRING-RECESS DUCT
35GEN WR02X6325
36GEN WR02X4235
37GEN WR02X4248
39GEN WR09X0268
41GEN WR17X1048
42GEN WR02X4234
43GEN WR02X4069
43LANYARD
46GEN WR02X3950
47GEN WR02X3948
55HARNESS & HOUSING-RECESS
56INSULATOR HOUSING
56LAMP 7C7
56HOUSING & SOCKET AS DISP
57SWITCH-CRADLE-WATER SIDE
58PLATE WATER SW RECESS
60GEN WR02X7244
61GEN WR17X2093
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68DUCT RECESS
68GASKET DUCT-R. SIDE
68GASKET DUCT-L. SIDE
69GEN WR17X5881
70SUPPORT SELECTOR SWITCH
72SWITCH SELECT-CUBES DISP
72SUPPORT SW.
72PLATE MTG-DISP SWITCH
75GEN WR17X1408
76GEN WR02X4633
80GEN WR02X4265
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
90GEN WR55X0019
91GEN WR02X7314
91BOARD ASM LOGIC
91GEN WR02X7313
92SENSOR DOOR FF & FZ
95BOARD ASM POWER SUPPLY
96TRANSFORMER ASM
97THERMISTOR & CONN ASM
98HOUSING POWER MODULE
99COVER
110GEN WR02X4678
111GEN WR38X1072
119GEN WR71X1754
124GEN WR17X2095
124GEN WR71X1755
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153WR1X1505D GE Refrigerator Screw Package of 12
154GEN WR01X1701
175SCREW SW. CRADLE
177SCREW
178GEN WR02X6058
179SCREW
204RETAINER BREAKER
214GEN WR01X1332
214GEN WR17X2097
214GEN WR02X7257
214GEN WR14X0274
224GEN WR02X4967
228GEN WR02X4983
228GEN WR02X4982
228GEN WR85X0201
257GEN WR02X7568
257WR9X502 GE Refrigerator Defrost Timer
257SCR 6-32 D TR 3/8 SS
270WR2X4754 GE Refrigerator Fill Clamp
276GEN WR01X1510
338WR2X4140 GE Refrigerator Blade Rest
361COVER MOTOR & SOLENOID
386GEN WZ04
