TFX27FLR FREEZER DOOR

TFX27FLR FREEZER DOOR

Written by

in

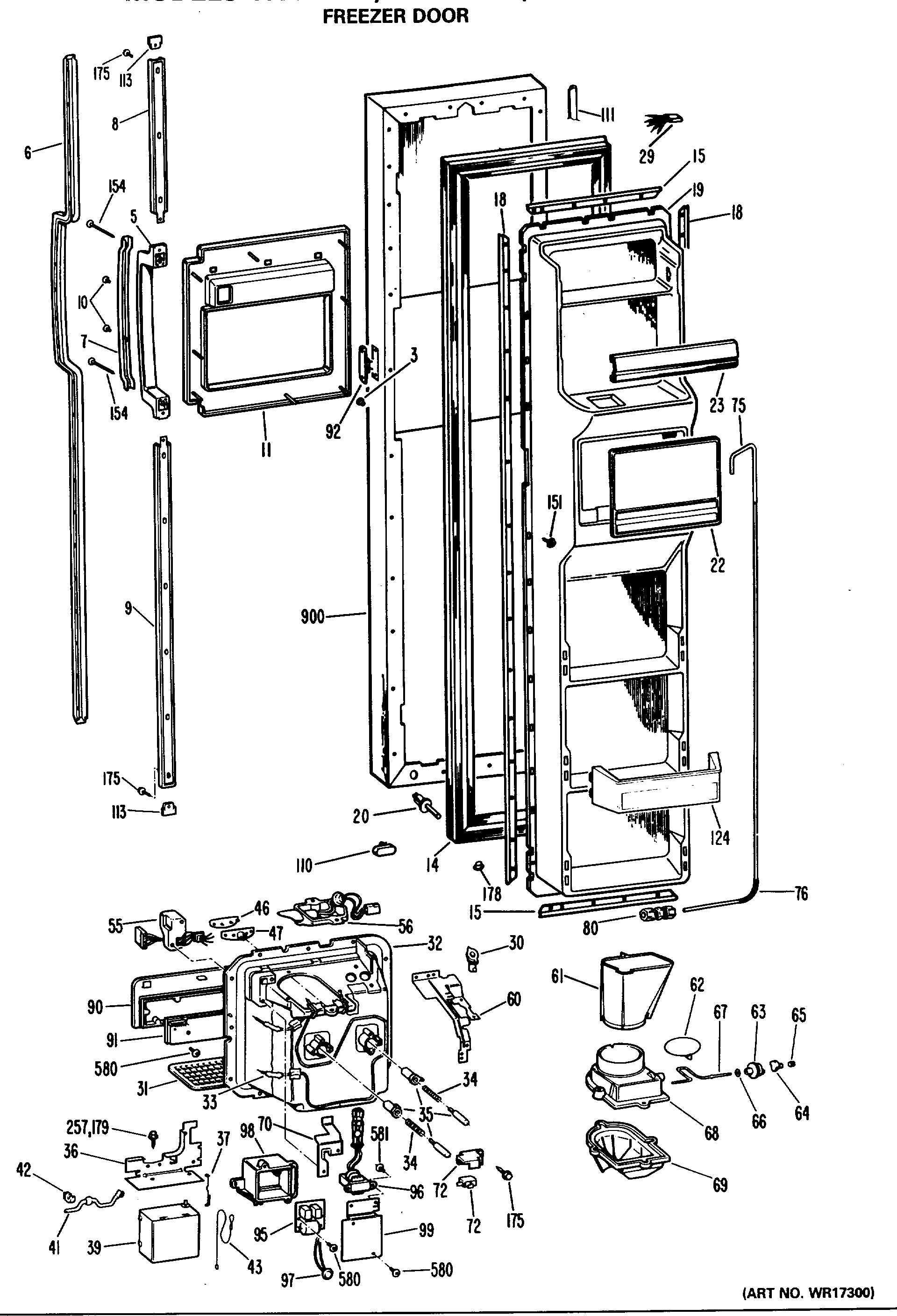

TFX27FLR FREEZER DOOR

Products

PositionProduct
1GEN 31-5024
3GEN WR02X3757
5GEN WR12X0618
6GEN WR12X0619
7GEN WR12X0620
8GEN WR12X0617
9GEN WR12X0616
10GEN WR01X1766
11GEN WR38X1314
11GEN WR01X5469
14GEN WR24X0466
15GEN WR17X1167
18GEN WR17X2092
19GEN WR77X0544
20GEN WR23X0161
22GEN WR17X2504
23GEN WR71X1916
29HARNESS- O DOOR RECESS
29GEN WR49X0308
30GROMMET WATER FILL RECES
31GEN WR02X3953
32GEN WR14X0245
32RECESS DISPENSER(BLACK)
33HEATER RECESS & DUCT ASM
34SPRING-RECESS DUCT
35GEN WR02X6325
36GEN WR02X7840
37GEN WR02X4248
39GEN WR09X0268
41GEN WR17X2820
42GEN WR02X4234
43GEN WR02X4069
43LANYARD
47GEN WR02X3948
55HARNESS & HOUSING-RECESS
56GEN WR02X7910
56INSULATOR HOUSING
56LAMP 7C7
60GEN WR02X7244
61GEN WR17X2093
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68DUCT RECESS
68GASKET DUCT-L. SIDE
68GASKET DUCT-R. SIDE
69GEN WR17X5881
70SUPPORT SELECTOR SWITCH
72GEN WR02X7942
72SWITCH SELECT-CUBES DISP
75GEN WR17X1408
76GEN WR02X4633
80GEN WR02X4265
87WZ4X241D GE Screw Package
90GEN WR55X0024
91BOARD ASM LOGIC
91GEN WR02X7313
91GEN WR02X7314
92SENSOR DOOR FF & FZ
95BOARD ASM POWER SUPPLY
96TRANSFORMER ASM
97THERMISTOR & CONN ASM
98HOUSING POWER MODULE
99COVER
110GEN WR02X4678
111GEN WR38X1437
113GEN WR02X7871
113GEN WR38X1517
124GEN WR17X2698
124GEN WR71X2094
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153WR1X1505D GE Refrigerator Screw Package of 12
154GEN WR01X1765
175SCREW SW. CRADLE
178GEN WR02X6058
179SCREW
257SCR 6-32 D TR 3/8 SS
257DEFROST TIMER
280GEN WR02X8417
580GEN WZ02X0561
581WZ4X44D GE Screw Package
687GEN WZ05X0194
764GEN WR02X8222
801COIL ASM-WATER(BLUE)
900GEN WR78X7819
901GEN WR78X7820
