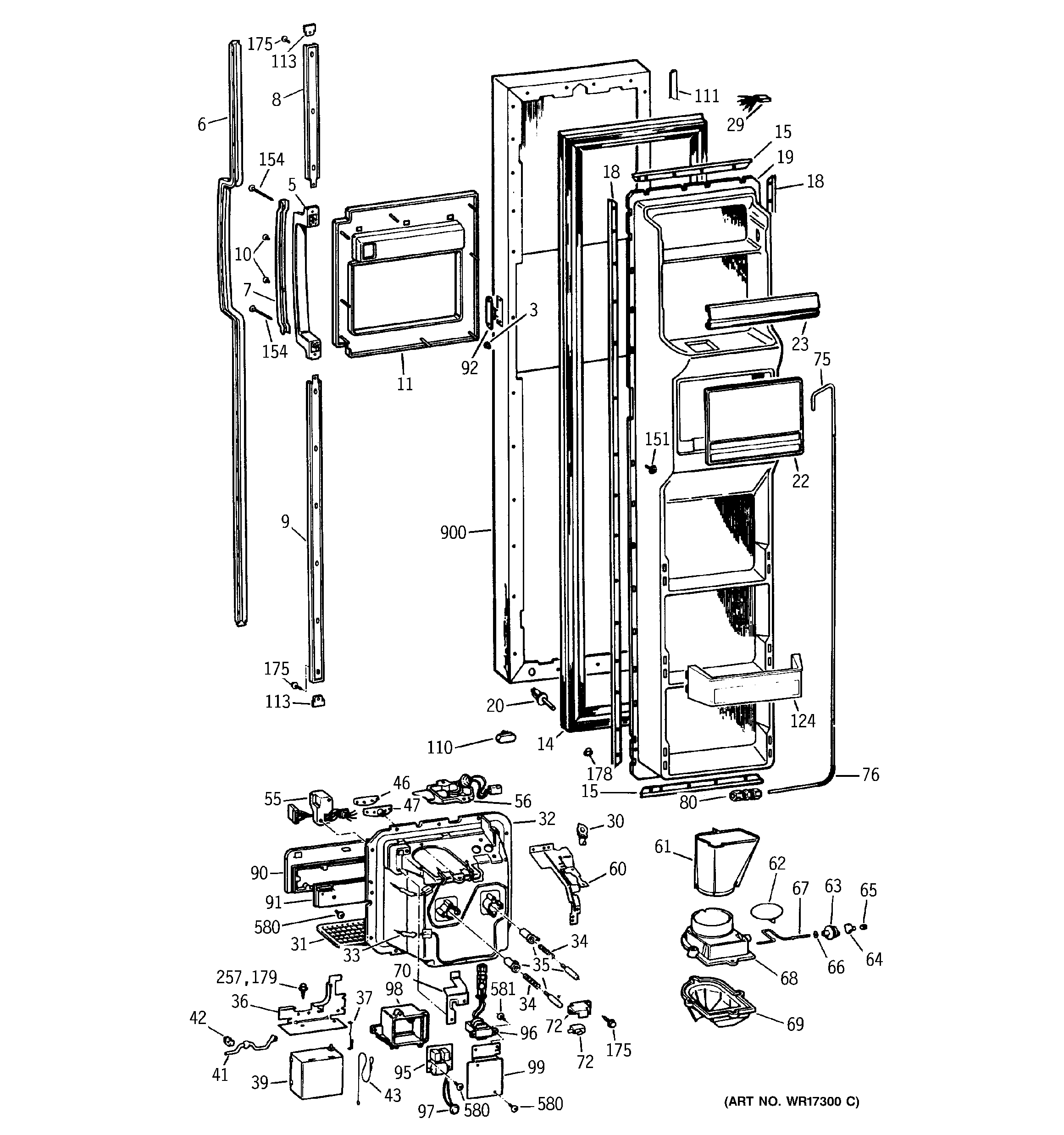

TFX27FMA FREEZER DOOR

Products

Position	Product
3	GEN WR02X3757
5	GEN WR12X0618
6	GEN WR12X0619
7	GEN WR12X0620
8	GEN WR12X0617
9	GEN WR12X0616
10	GEN WR01X1766
11	GEN WR01X5469
11	GEN WR38X1314
14	GEN WR24X0447
15	GEN WR17X1167
18	GEN WR17X2092
19	GEN WR77X0504
20	GEN WR23X0161
22	GEN WR17X2504
23	GEN WR71X1916
29	HARNESS- O DOOR RECESS
29	GEN WR49X0308
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	GEN WR14X0245
32	RECESS DISPENSER(BLACK)
33	HEATER RECESS & DUCT ASM
34	SPRING-RECESS DUCT
35	GEN WR02X6325
36	GEN WR02X8414
37	GEN WR02X8403
39	GEN WR09X0462
41	GEN WR17X2820
42	GEN WR02X4234
43	WR2X8441 GE Refrigerator Lanyard Assembly
47	GEN WR02X3948
55	HARNESS & HOUSING-RECESS
56	GEN WR02X7910
56	INSULATOR HOUSING
56	LAMP 7C7
60	GEN WR02X7244
61	GEN WR17X2093
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	GASKET DUCT-R. SIDE
68	DUCT RECESS
68	GASKET DUCT-L. SIDE
69	GEN WR17X5881
70	SUPPORT SELECTOR SWITCH
72	GEN WR02X7942
72	SWITCH SELECT-CUBES DISP
75	GEN WR17X1408
76	GEN WR02X4633
80	GEN WR02X4265
90	GEN WR55X0024
91	GEN WR02X7314
91	BOARD ASM LOGIC
91	GEN WR02X7313
92	SENSOR DOOR FF & FZ
95	BOARD ASM POWER SUPPLY
96	TRANSFORMER ASM
97	THERMISTOR & CONN ASM
98	HOUSING POWER MODULE
99	COVER
110	GEN WR02X4678
111	GEN WR38X1437
113	GEN WR02X7871
113	GEN WR38X1517
124	GEN WR17X2840
124	GEN WR71X2099
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
154	GEN WR01X1765
175	SCREW SW. CRADLE
178	GEN WR02X6058
179	SCREW
257	DEFROST TIMER
580	GEN WZ02X0561
581	WZ4X44D GE Screw Package
900	GEN WR78X7819
