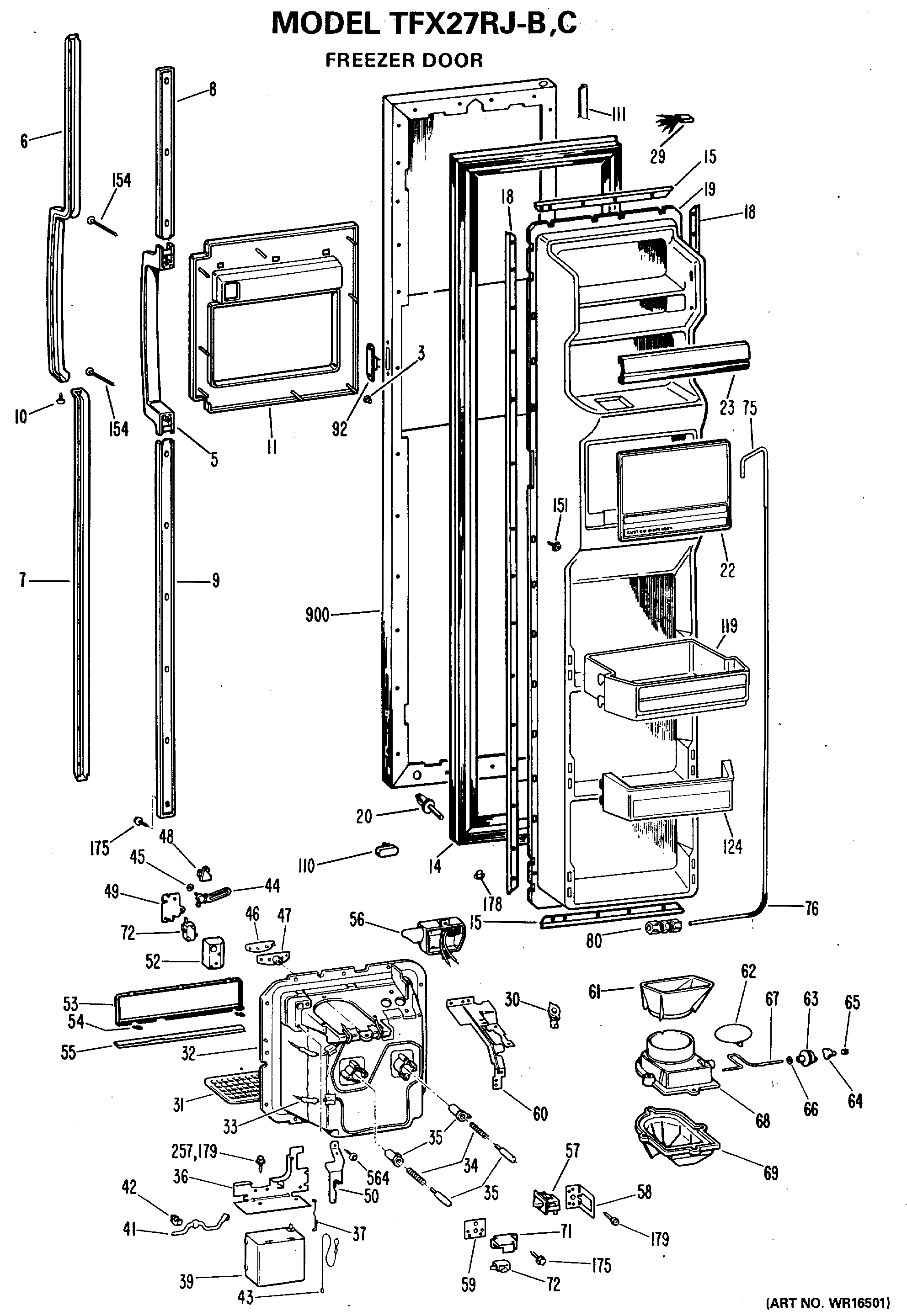

TFX27RJB FREEZER DOOR

TFX27RJB FREEZER DOOR

Written by

in

TFX27RJB FREEZER DOOR

Products

Position	Product
3	GEN WR02X3757
5	GEN WR12X0544
6	GEN WR02X7299
6	GEN WR12X0550
7	GEN WR01X1721
7	GEN WR12X0543
8	GEN WR12X0551
9	GEN WR12X0546
10	GEN WR01X1700
11	GEN WR38X1081
11	GEN WR01X5469
14	GEN WR24X0420
15	GEN WR17X1167
18	GEN WR17X2092
19	GEN WR77X0465
20	GEN WR23X0161
22	GEN WR17X1458
23	GEN WR71X1737
29	HARNESS RECESS
29	GEN WR49X0308
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	RECESS DISPENSER (BLK)
32	GEN WR14X0245
33	GEN WR51X0304
34	SPRING-RECESS DUCT
35	GEN WR02X6325
36	GEN WR02X4235
37	GEN WR02X4248
39	GEN WR09X0268
41	GEN WR17X1048
42	GEN WR02X4234
43	GEN WR02X4069
43	LANYARD
44	GEN WR02X4460
45	GEN WR02X4240
46	GEN WR02X3950
47	GEN WR02X3948
48	GEN WR02X7636
49	GEN WR02X4242
50	GEN WR17X1259
52	GEN WR02X4459
53	GEN WR17X2067
54	GEN WR02X4231
55	GEN WR38X0844
56	LAMP 7C7
56	GEN WR02X3959
56	INSULATOR HOUSING
57	SWITCH-CRADLE-WATER SIDE
58	PLATE WATER SW RECESS
59	GEN WR02X4244
60	GEN WR02X7244
61	GEN WR17X2093
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	GASKET DUCT-R. SIDE
68	GASKET DUCT-L. SIDE
68	DUCT RECESS
69	GEN WR17X5881
72	SUPPORT SW.
72	PLATE MTG-DISP SWITCH
72	SWITCH SELECT-CUBES DISP
75	GEN WR17X1408
76	GEN WR02X4633
80	GEN WR02X4265
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
87	WZ4X241D GE Screw Package
110	GEN WR02X4678
111	GEN WR38X1072
119	GEN WR71X1754
124	GEN WR71X1755
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153	WR1X1505D GE Refrigerator Screw Package of 12
154	GEN WR01X1701
175	SCREW SW. CRADLE
177	SCREW
178	GEN WR02X6058
179	SCREW
202	RETAINER BREAKER-BTM.
204	RETAINER BREAKER
221	GEN WR02X4545
253	RIVET POP
257	GEN WR02X7568
257	WR9X502 GE Refrigerator Defrost Timer
257	SCR 6-32 D TR 3/8 SS
276	GEN WR01X1510
361	COVER MOTOR & SOLENOID
386	GEN WZ06X0077
386	SCREW TRIM MTG
402	GEN WR38X1305
408	GEN WR32X0901
435	RANGE ONLY 40W 120V APPL BULB
435	WR2X9391 GE Socket and Terminal
442	GEN WR02X3884
442	KNOB CONTROL
461	GEN WZ06X0136
470	WR2X3139 GE Refrigerator Plug Button
562	GEN WX05
