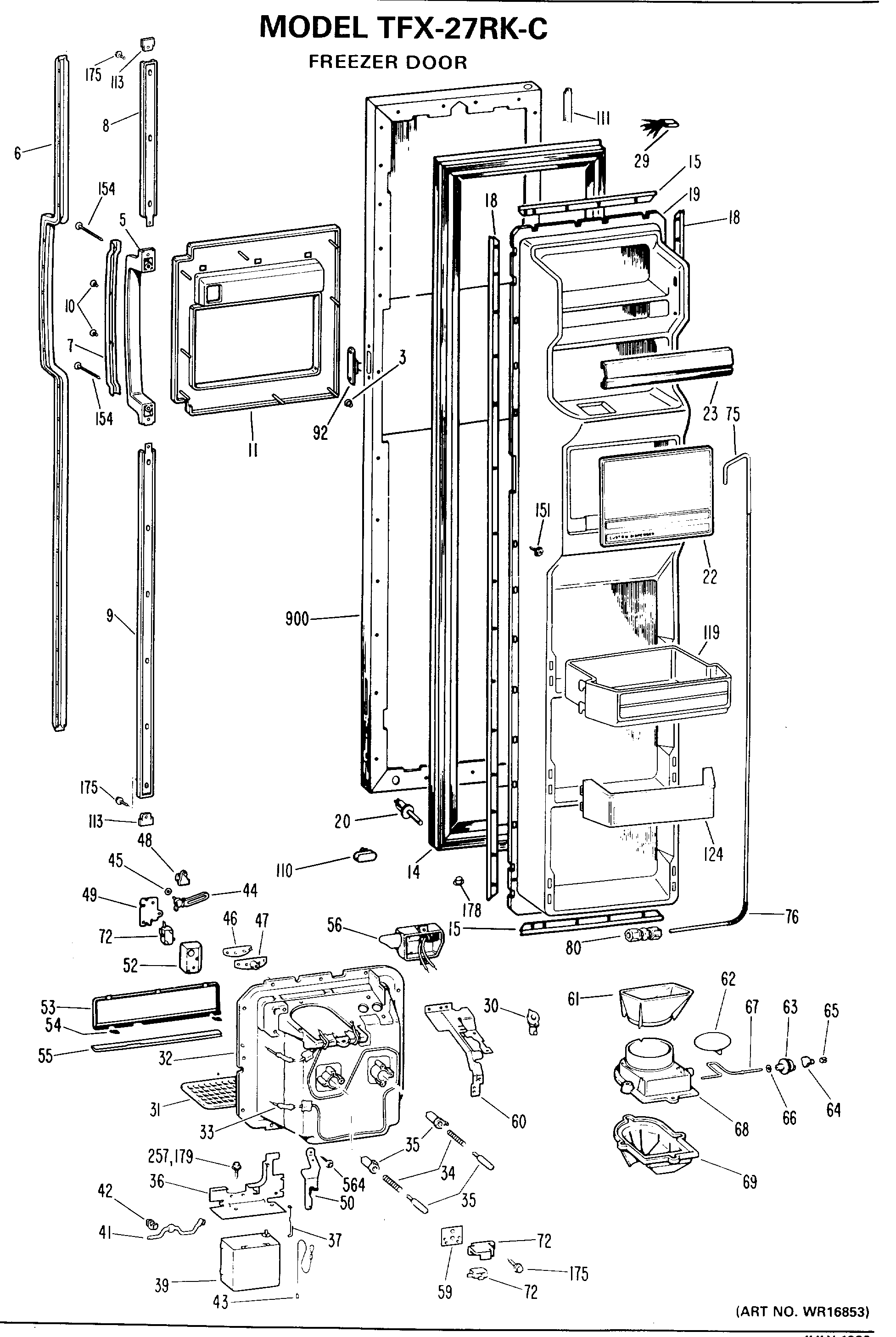

TFX27RKC FREEZER DOOR

TFX27RKC FREEZER DOOR

Written by

in

TFX27RKC FREEZER DOOR

Products

Position	Product
1	GEN 31-5024
3	GEN WR02X3757
5	GEN WR12X0618
6	GEN WR12X0619
7	GEN WR12X0620
8	GEN WR12X0617
9	GEN WR12X0616
10	GEN WR01X1766
11	GEN WR38X1081
11	GEN WR01X5469
14	GEN WR24X0420
15	GEN WR17X1167
18	GEN WR17X2092
19	GEN WR77X0465
20	GEN WR23X0161
22	GEN WR17X1458
23	GEN WR71X1737
29	GEN WR49X0308
29	HARNESS RECESS
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	RECESS DISPENSER (BLK)
32	GEN WR14X0245
33	HEATER RECESS & DUCT ASM
34	SPRING-RECESS DUCT
35	GEN WR02X6325
36	GEN WR02X4235
37	GEN WR02X4248
39	GEN WR09X0268
41	GEN WR17X1048
42	GEN WR02X4234
43	LANYARD
43	GEN WR02X4069
44	GEN WR02X4460
45	GEN WR02X4240
46	GEN WR02X3950
47	GEN WR02X3948
48	GEN WR02X7636
49	GEN WR02X4242
50	GEN WR17X1259
52	GEN WR02X4459
53	GEN WR17X2067
54	GEN WR02X4231
55	GEN WR38X0844
56	LAMP 7C7
56	GEN WR02X3959
56	INSULATOR HOUSING
59	GEN WR02X4244
60	GEN WR02X7244
61	GEN WR17X2093
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	DUCT RECESS
68	GASKET DUCT-L. SIDE
68	GASKET DUCT-R. SIDE
69	GEN WR17X5881
72	PLATE MTG-DISP SWITCH
72	SWITCH SELECT-CUBES DISP
72	SUPPORT SW.
75	GEN WR17X1408
76	GEN WR02X4633
80	GEN WR02X4265
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
110	GEN WR02X4678
111	GEN WR38X1072
113	GEN WR02X7871
119	GEN WR71X1754
124	GEN WR71X1755
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153	WR1X1505D GE Refrigerator Screw Package of 12
154	GEN WR01X1765
175	SCREW SW. CRADLE
178	GEN WR02X6058
179	SCREW
257	SCR 6-32 D TR 3/8 SS
257	WR9X502 GE Refrigerator Defrost Timer
402	GEN WR38X1305
470	WR2X3139 GE Refrigerator Plug Button
564	GEN WR01X1194
900	GEN WR78X7905
900	GEN WR78X7904
902	GEN WR78X7906
910	GEN WR78X7908
912	GEN WR78X7909
32767	GEN 49-6405
