TFXB27FRABK FREEZER DOOR

TFXB27FRABK FREEZER DOOR

Written by

in

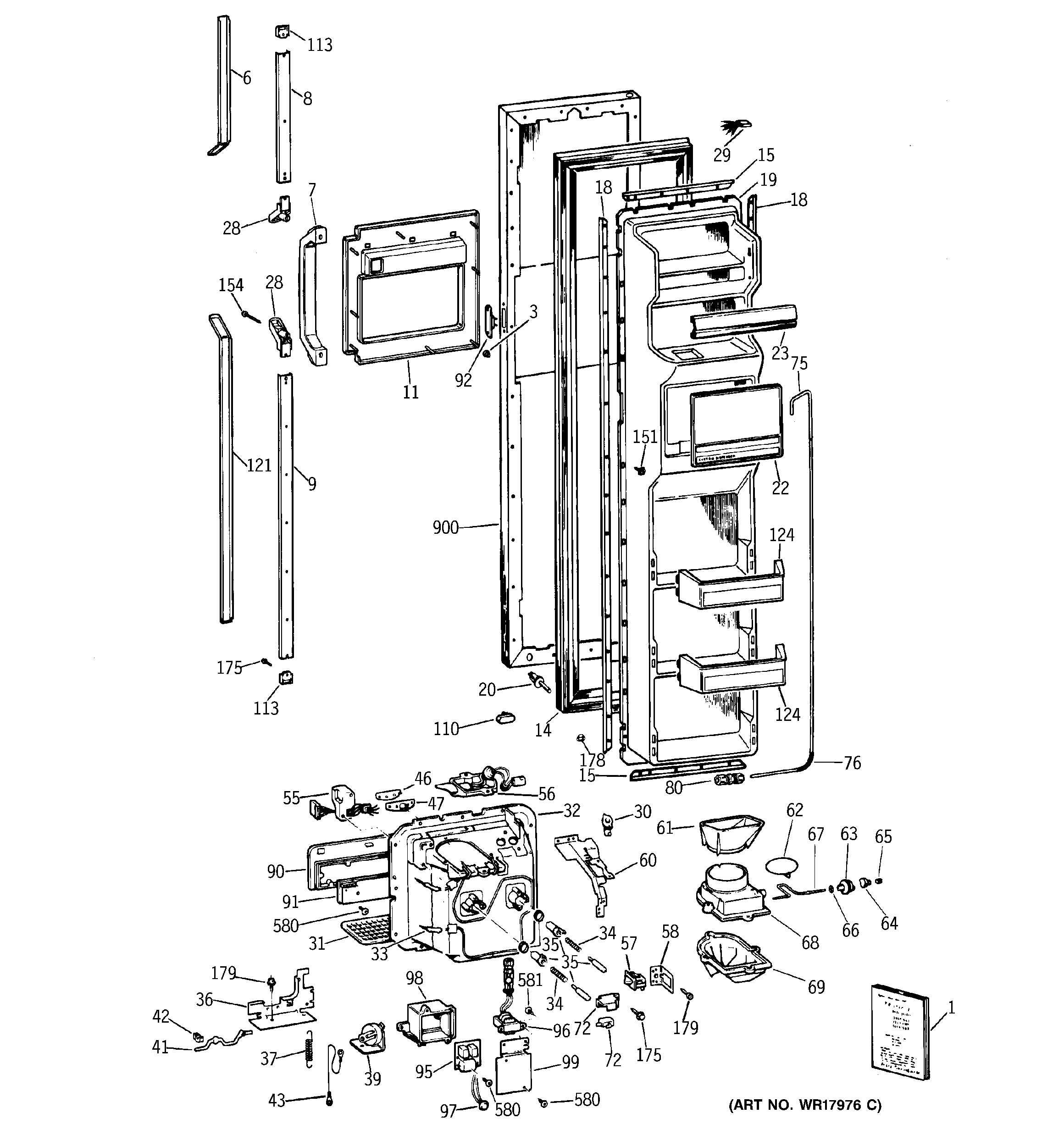

TFXB27FRABK FREEZER DOOR

Products

PositionProduct
1GEN 31-5024
1GEN 49-6694
3GEN WR02X3757
7GEN WR12X0857
8GEN WR12X0617
9GEN WR12X0616
11GEN WR38X1314
11GEN WR01X5469
14GEN WR24X0508
14SCREW FAN MTR/BRKT
15GEN WR17X1167
18GEN WR17X2092
19GEN WR77X0504
20GEN WR23X0161
22GEN WR17X2920
23GEN WR17X2980
28GEN WR02X8576
29HARNESS- O DOOR RECESS
29GEN WR49X0308
30GROMMET WATER FILL RECES
31GEN WR02X3953
32RECESS DISPENSER(BLACK)
33HEATER RECESS & DUCT ASM
34SPRING-RECESS DUCT
35GEN WR01X1824
35PLUNGER SCW & SLEEVE
35GEN WR02X6325
36GEN WR02X8414
37GEN WR02X8403
39GEN WR09X0462
41GEN WR17X2820
42GEN WR02X4234
43WR2X8441 GE Refrigerator Lanyard Assembly
46GEN WR02X8471
47GEN WR02X3948
55HARNESS & HOUSING-RECESS
56GEN WR02X7910
56LAMP 7C7
56INSULATOR HOUSING
57SWITCH-CRADLE-WATER SIDE
58GEN WR02X8496
60GEN WR02X7244
61GEN WR17X2093
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64GEN WZ05X0194
64ARM TIME DELAY DISPLAY
65WZ4X230D GE Screw Package 12
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68DUCT RECESS
68GASKET DUCT-R. SIDE
68GASKET DUCT-L. SIDE
69GEN WR17X5881
72GEN WR02X7942
72SWITCH SELECT-CUBES DISP
75GEN WR17X1408
76GEN WR02X4633
80GEN WR02X4265
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
90GEN WR55X0040
91BOARD ASM LOGIC
91GEN WR02X7314
91GEN WR02X7313
92GEN WR23X0355
95BOARD ASM POWER SUPPLY
96TRANSFORMER ASM
97THERMISTOR & CONN ASM
98HOUSING POWER MODULE
99COVER
110GEN WR02X4678
113GEN WR38X1517
113GEN WR02X7871
121GEN WR12X0859
121GEN WR01X1703
124GEN WR71X2105
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
154GEN WR01X1765
175GEN WR02X8580
175SCREW SW. CRADLE
178GEN WR02X6058
580GEN WZ02X0561
900GEN WR78X8452
