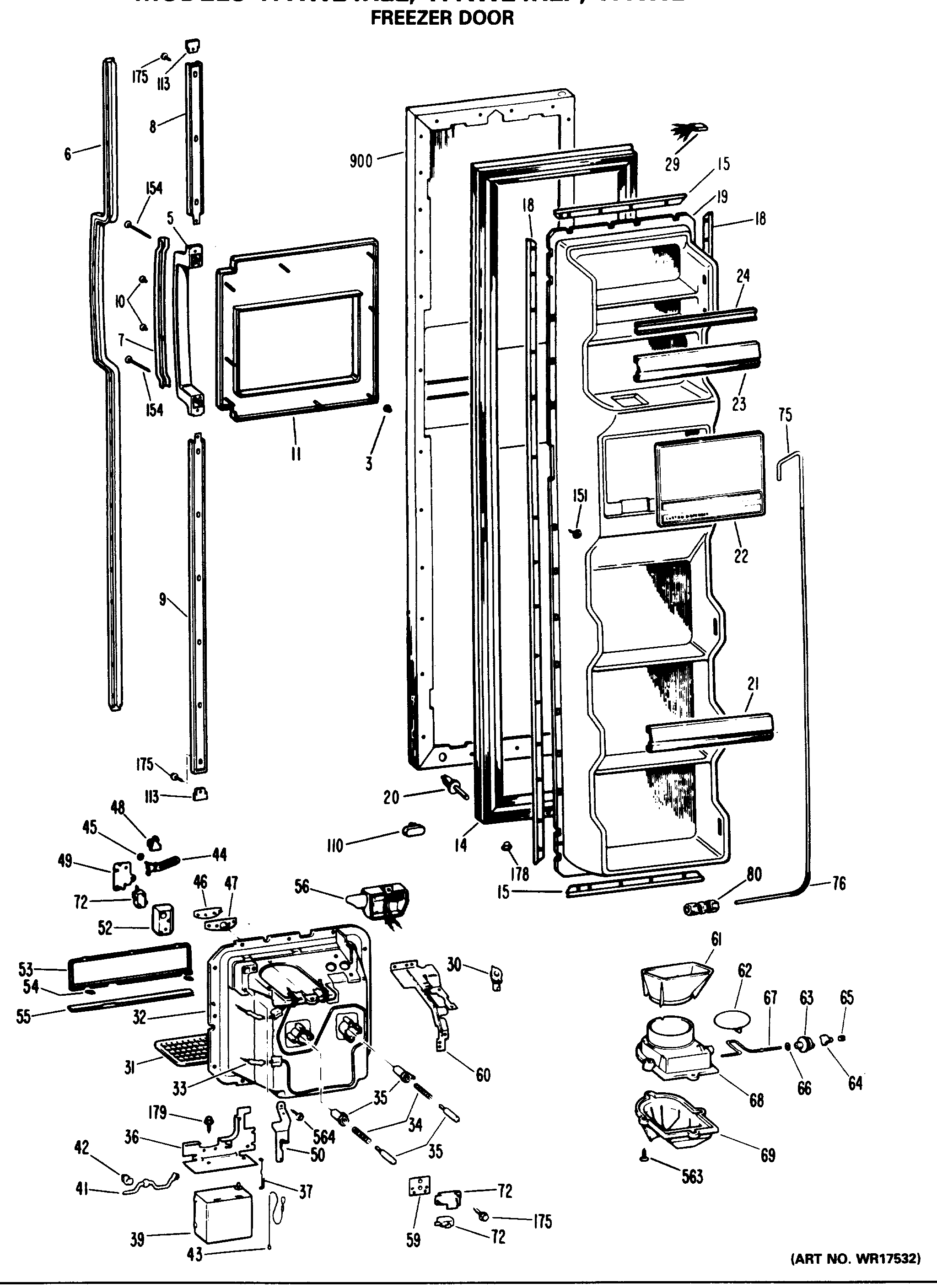

TFXW24RLL FREEZER DOOR

Products

Position	Product
1	GEN 31-5024
3	GEN WR02X3757
5	GEN WR12X0618
6	GEN WR12X0739
7	GEN WR12X0620
8	GEN WR12X0621
9	GEN WR12X0616
10	GEN WR01X1766
11	GEN WR38X1455
11	GEN WR01X5469
13	GEN WR02X4599
14	GEN WR24X5233
15	GEN WR17X1167
18	GEN WR17X1169
19	GEN WR77X0525
20	GEN WR23X0161
21	GEN WR17X2590
22	GEN WR17X2688
23	GEN WR17X2591
24	GEN WR71X1899
29	GEN WR49X5102
29	HARNESS RECESS
29	GEN WR49X0308
30	GROMMET WATER FILL RECES
31	GEN WR02X8190
32	GEN WR14X0245
32	GEN WR17X2592
33	HEATER RECESS & DUCT ASM
34	SPRING-RECESS DUCT
35	PLUNGER SCW & SLEEVE
36	GEN WR02X7840
37	GEN WR02X4248
39	GEN WR09X0268
41	GEN WR17X1048
42	GEN WR02X4234
43	GEN WR02X4069
43	LANYARD
44	GEN WR02X4460
45	GEN WR02X4240
46	PAD CRADLE
47	GEN WR02X3948
48	RELAY COVER
49	GEN WR02X4242
50	GEN WR17X1259
52	GEN WR02X4459
53	GEN WR17X2593
54	GEN WR02X4231
55	GEN WR38X0844
56	LAMP 7C7
56	INSULATOR HOUSING
56	GEN WR02X3959
59	GEN WR02X4244
60	GEN WR02X7244
61	GEN WR17X1261
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	DUCT RECESS
68	GASKET DUCT-R. SIDE
68	GASKET DUCT-L. SIDE
69	SHIELD FUNNEL ASSY DISPL
72	GEN WR02X7942
72	SWITCH SELECT-CUBES DISP
75	GEN WR17X1408
76	GEN WR02X4633
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
80	GEN WR02X4265
110	GEN WR02X4678
113	GEN WR02X7871
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153	WR1X1505D GE Refrigerator Screw Package of 12
154	GEN WR01X1765
175	SCREW SW. CRADLE
179	SCREW
338	WR2X4140 GE Refrigerator Blade Rest
563	WZ4X241D GE Screw Package
564	GEN WR01X1194
762	GEN WR02X7493
801	COIL ASM-WATER(BLUE)
801	GEN WR62X0044
900	GEN WR78X8256
