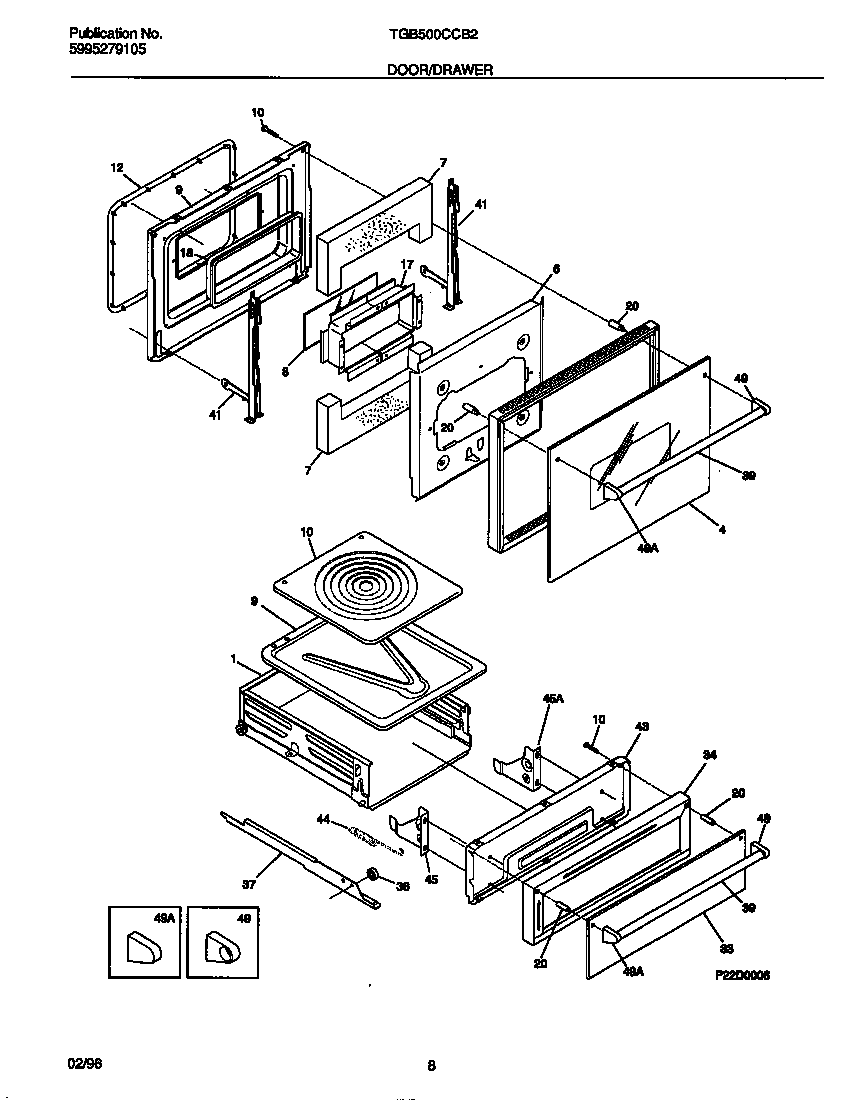

TGB500CCB2 05 – DOOR/DRAWER

Products

Position	Product
*83738	Plug,button
*83741	5303308456 Frigidaire Oven Screw
*83739	WCI 318136000
*83740	WCI 5303300414
3	WCI 5303212560
4	GLASS-OVEN DOOR, BLACK, OUTER
6	WCI 5303210005
7	WCI 5303308470
9	WCI 318048400
10	WCI 5303316748
12	WCI 5303316768
16	GLASS-OVEN DOOR, HEAT BARRIER
17	SPACER-GLASS
18	SEAL-ROPE
23	5300809968 Frigidaire Dishwasher P-1 Washer
23	HINGE-OVEN DOOR, LOWER
29	SPACER-HANDLE MTG, (2)
33	GLASS-DRAWER, FRONT
34	WCI 318116000
35	5304504568 Frigidaire Drawer Assembly
36	WCI 5303308457
37	5304414648 Frigidaire Oven Screw
37	3203722 Frigidaire Oven Rail
37	3203723 Frigidaire Oven Rail
39	WCI 318040201
43	WCI 318107800
44	SPRING
45	WCI 5303308471
45	WCI 5303308472
46	PAN-BROILER
47	INSERT-BROILER PAN
49	WCI 5303307192
49	WCI 5303307193
