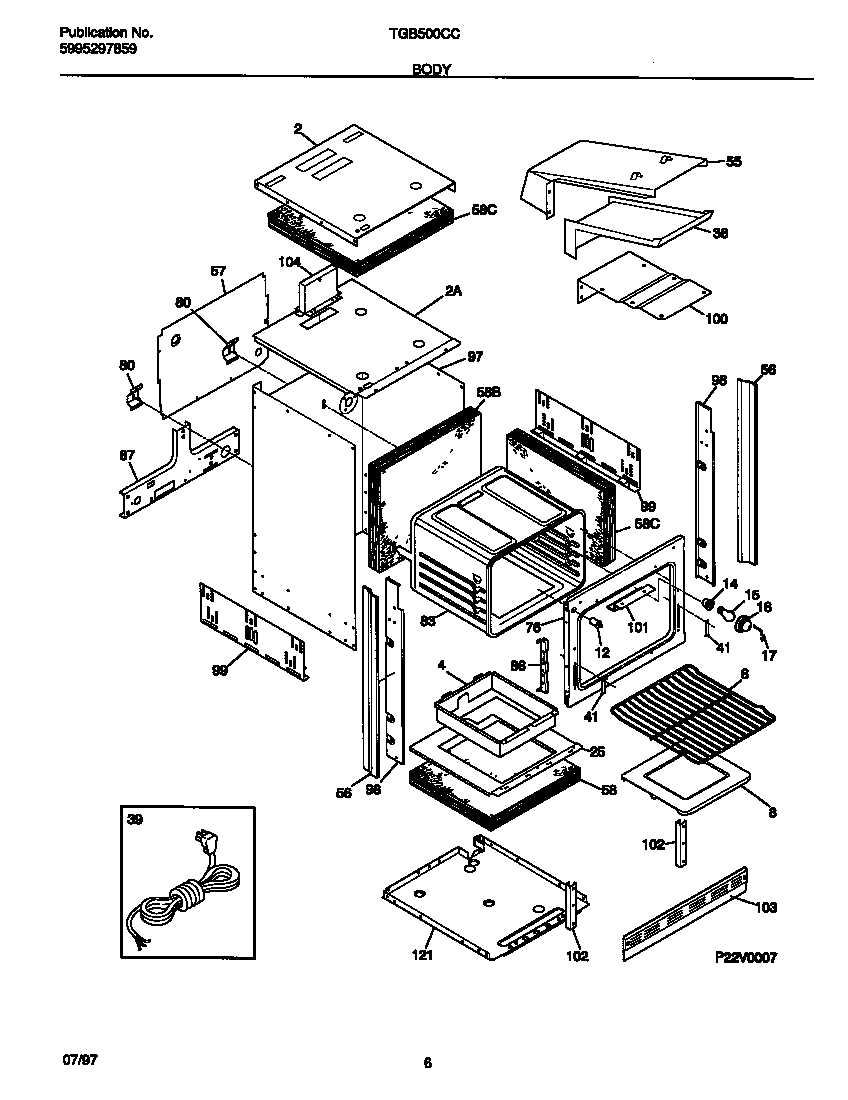

TGB500CCB3 04 – BODY

Written by

Products

Position	Product
*36289	5304500008 Frigidaire Oven Screw
*36296	COVER-CAPILLARY
*36295	5300803416 Frigidaire Dishwasher Screw
*36294	5303211311 Frigidaire Refrigerator Screw
*36290	5303013272 Frigidaire Oven Nut
*36292	5303311174 Frigidaire Oven Screw
*36293	ANGLE-BURNER BOX
*36291	08002868 Frigidaire 0 Screw Assembly
*36297	WCI 5303311528
2	SHIELD, OVEN BOTTOM
2	WCI 318101900
4	WCI 318161500
6	318345216 Frigidaire Oven Rack
8	WCI 318121400
12	WCI 5301314211
14	SOCKET-LIGHT/LAMP, OVEN
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WIRE, GLASS RETAINER
25	WCI 5303210706
27	5303284616 Frigidaire Range Bulb Clip Thermostat
36	WCI 3203725
39	5304513507 Frigidaire Bushing Assembly
39	WCI 5303308453
41	WCI 3019063
55	SHIELD-FLUE COVER
56	WCI 318145508
56	WCI 5303320422
57	WCI 5303308476
58	INSULATION, OVEN BACK
58	INSULATION, TOP & SIDES
58	WCI 5303280377
76	WCI 318056120
80	WCI 5303301261
83	WCI 318089400
86	WCI 3201631
87	WCI 5303308475
97	WCI 318066800
98	WCI 318029401
98	WCI 318029400
99	318284201 Frigidaire PANEL
100	WCI 5303302715
101	WCI 5303308474
102	WCI 3203688
103	PLUG
103	WCI 5303316735
104	ADAPTER-FLUE
121	WCI 318145001
