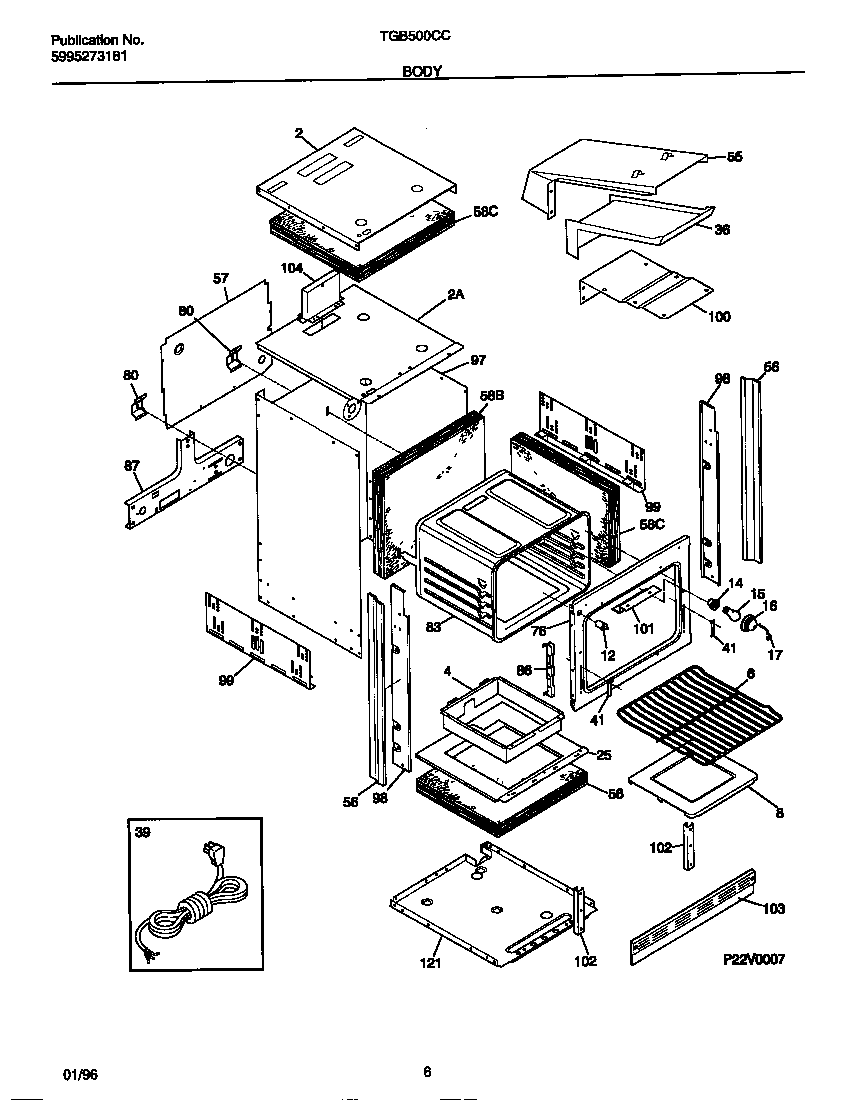

TGB500CCBA 04 – BODY

TGB500CCBA 04 – BODY

Written by

in

TGB500CCBA 04 – BODY

Products

PositionProduct
*52560COVER-CAPILLARY
*52562WCI 3201632
*525615303284616 Frigidaire Range Bulb Clip Thermostat
2SHIELD, OVEN BOTTOM
2WCI 3203690
4WCI 5303280375
6318345216 Frigidaire Oven Rack
8PANEL-OVEN BOTTOM
12WCI 5301314211
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
25WCI 5303210706
36WCI 3203725
39WCI 5303308453
41WCI 3019063
55SHIELD-FLUE COVER
56TRIM-BODYSIDE
57WCI 5303308476
58INSULATION, OVEN BACK
58INSULATION, TOP & SIDES
58WCI 5303280377
76WCI 5303296866
80WCI 5303301261
83LINER-OVEN ASSY
86WCI 3201631
87WCI 5303308475
97WRAPPER, BACK & SIDES
98TRIM-SIDE, INNER, RH
98TRIM-SIDE, INNER, LH
99318284201 Frigidaire PANEL
100WCI 5303302715
101WCI 5303308474
102WCI 3203688
103PLUG
103WCI 5303316735
104ADAPTER-FLUE
121WCI 5303305036
