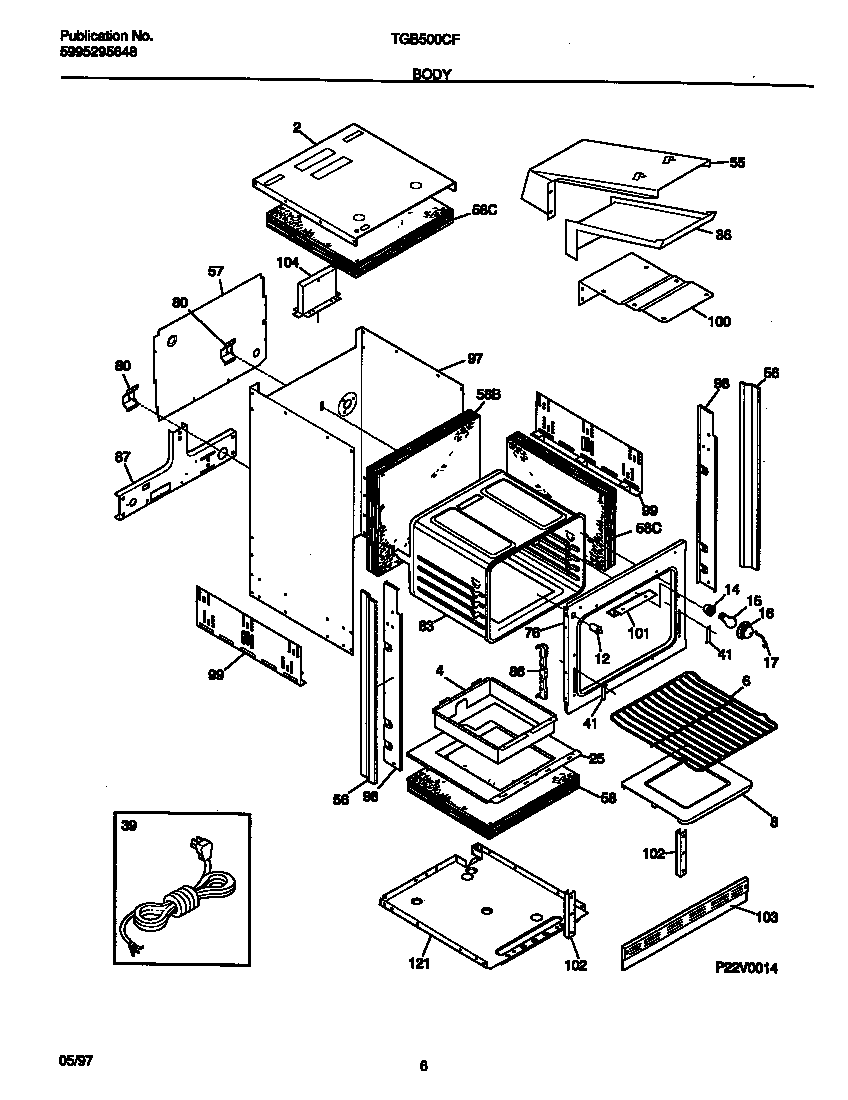

TGB500CFB1 04 – BODY

TGB500CFB1 04 – BODY

Written by

in

TGB500CFB1 04 – BODY

Products

PositionProduct
*113395303284616 Frigidaire Range Bulb Clip Thermostat
*11334ANGLE-BURNER BOX
*11329SHIELD, OVEN BOTTOM
*11337COVER-CAPILLARY
*11342WCI 3201632
*113405304513507 Frigidaire Bushing Assembly
*113305304500008 Frigidaire Oven Screw
*113365300803416 Frigidaire Dishwasher Screw
*113355303211311 Frigidaire Refrigerator Screw
*1133208002868 Frigidaire 0 Screw Assembly
*11341Clip,insulator
*11338WCI 5303311528
*113335303311174 Frigidaire Oven Screw
*113315303013272 Frigidaire Oven Nut
2WCI 3203690
4WCI 318161500
6318345216 Frigidaire Oven Rack
8WCI 318121400
12WCI 5301314211
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
25WCI 5303210706
36WCI 3203725
39WCI 5303308453
41WCI 3019063
55SHIELD-FLUE COVER
56WCI 318145508
56WCI 5303320422
57WCI 5303308476
58INSULATION, TOP & SIDES
58WCI 5303280377
58INSULATION, OVEN BACK
76WCI 318056120
80WCI 5303301261
83WCI 318089400
86WCI 3201631
87WCI 5303308475
97WCI 318066800
98WCI 318029401
98WCI 318029400
99318284201 Frigidaire PANEL
100WCI 5303302715
101WCI 5303308474
102WCI 3203688
103PLUG
103WCI 5303316735
104ADAPTER-FLUE
121WCI 318145001
