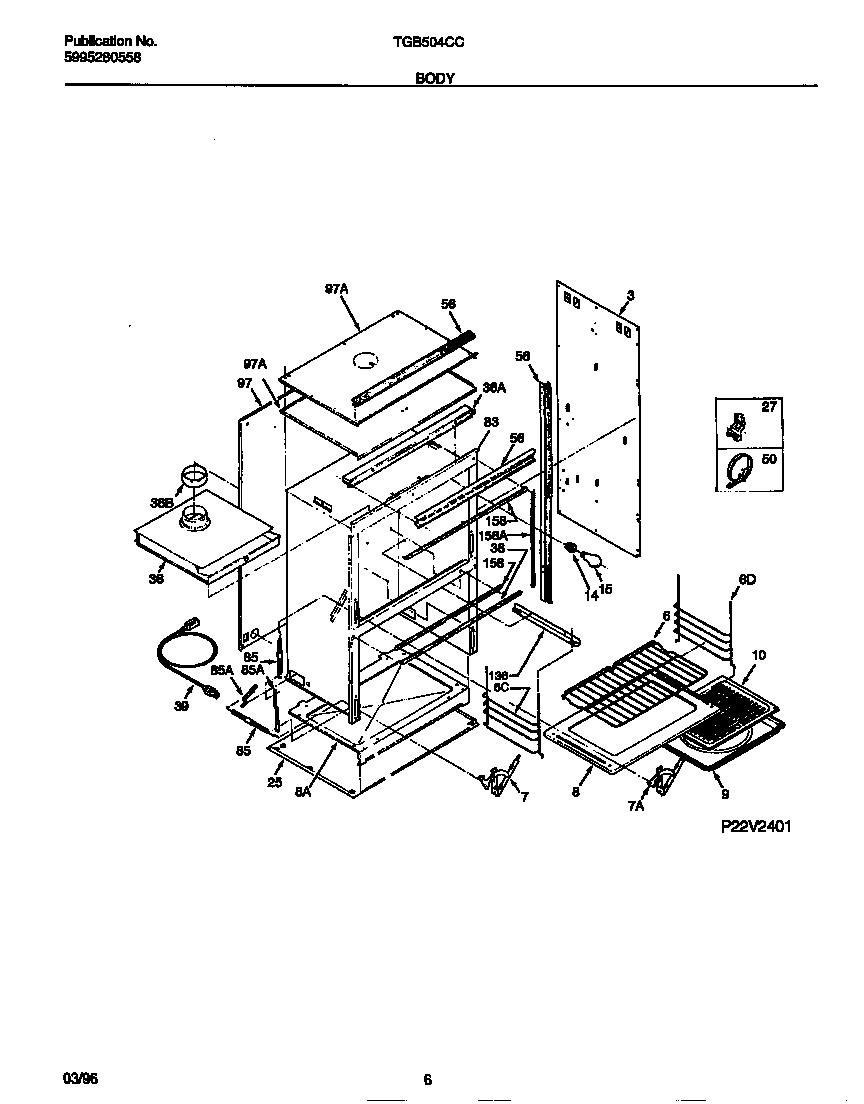

TGB504CCB2 04 – BODY

TGB504CCB2 04 – BODY

Written by

in

TGB504CCB2 04 – BODY

Products

PositionProduct
*68484WCI 5303317134
*68481FASTENER, CLIP CABLE
*68482SCREW, 8-18 X 2.250, (2)
*68485INSULATION,OVEN BACK & TOP
*68486INSULATION,TOP & SIDES
*684835303211311 Frigidaire Refrigerator Screw
3WCI 5303317132
6GLIDE-BROILER RACK
6WCI 3201495
6WCI 08012158
6GLIDE-OVEN RACK
7Hinge Assy,oven door ,LH upper
7Hinge Assy,oven door ,RH upper
7Hinge Assy,LH lower
7WCI 5303298313
73203010 Frigidaire Clip
8WCI 318133600
8WCI 318136500
9WCI 5303317977
10WCI 5303310520
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
25WCI 5303317712
275303284616 Frigidaire Range Bulb Clip Thermostat
36WCI 5303317121
36FLUE
36WCI 318076801
38WCI 5303317128
39WCI 5303317120
39CLAMP-POWER CORD
39WCI 5303295308
50TUBE-VENT
56TRIM CENTER
56CAP-END BOTTOM,LH
56WCI 318028200
56CAP-END BOTTOM,RH
56WCI 318034600
56TRIM-BODYSIDE,RH
56TRIM-BODYSIDE,LH
83WCI 318109500
85WCI 5303317125
85SLEEVE-SPRING (2)
85WCI 5303317711
85WCI 5303317126
85SPRING-OVEN DOOR,UPPER
97WCI 812T007F02
97WCI 5303317130
97WCI 5303317131
136WCI 5303317129
158SEAL-SIDE,BAKE OVEN
158SEAL-DOOR,BLACK ,TOP BROILER
