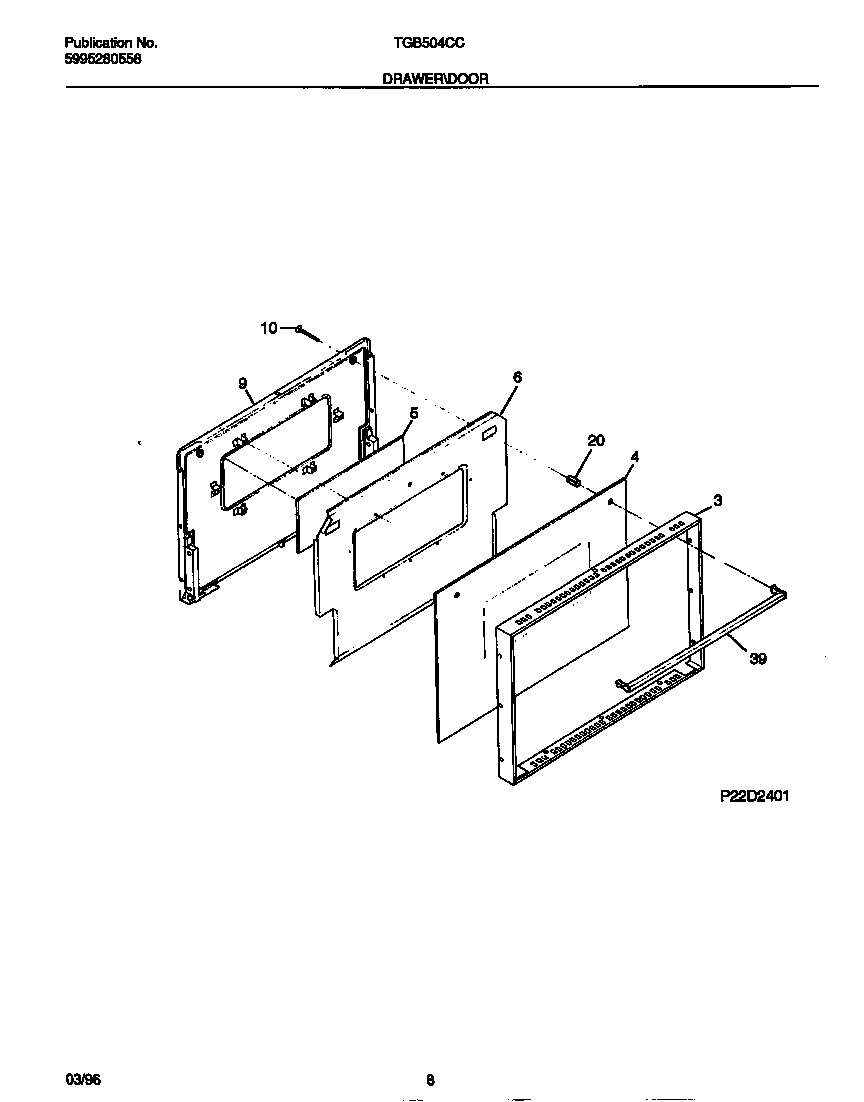

TGB504CCB2 05 – DRAWER/DOOR

TGB504CCB2 05 – DRAWER/DOOR

Written by

in

TGB504CCB2 05 – DRAWER/DOOR

Products

PositionProduct
*684905304453707 Frigidaire Oven Screw
*68487FSTNR. SPACER (6)
*68491FASTENER-SPACER
*68488WCI 08010463
*684895303308456 Frigidaire Oven Screw
*68492INSULATION,OVEN DOOR
3TRIM-OVEN DOOR
4GLASS-OVEN DOOR,BLACK ,OUTER
5GLASS-OVEN DOOR,INNER
6RETAINER-INSULATION
9WCI 318048900
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
20SPACER-HANDLE,(2)
39WCI 318040200
