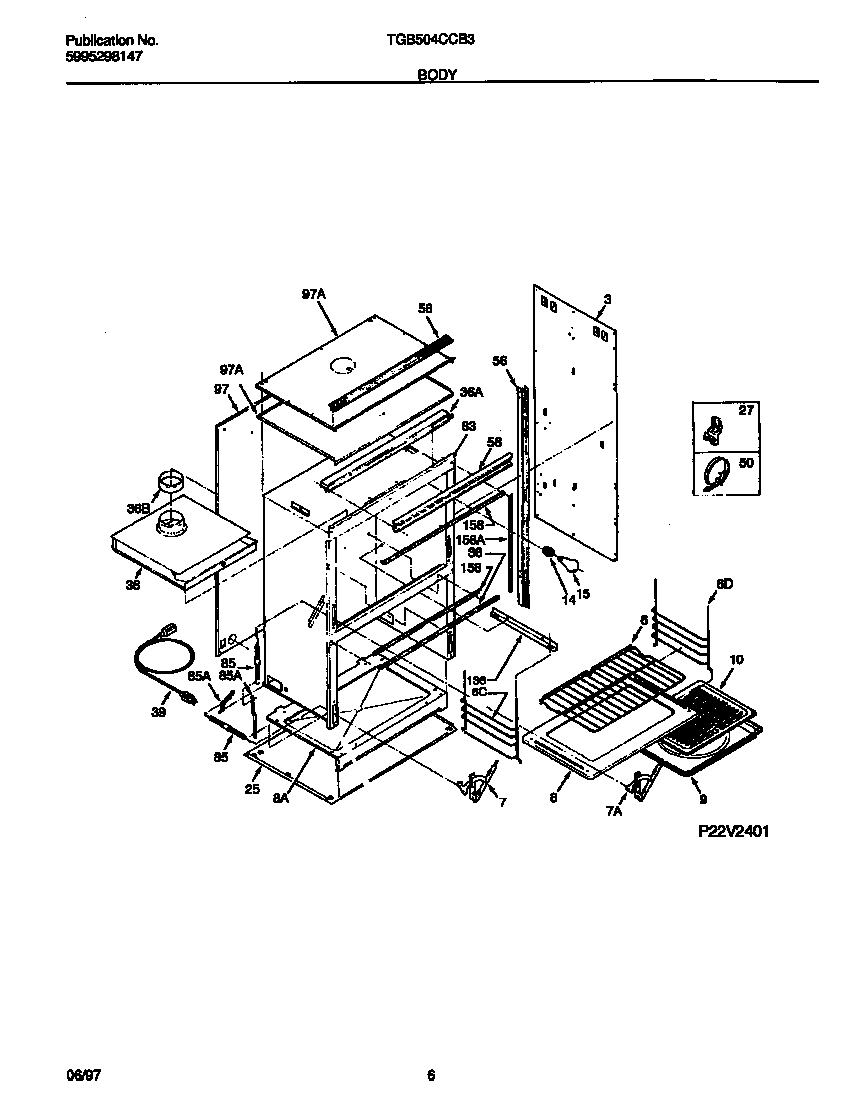

TGB504CCB3 04 – BODY

Products

PositionProduct
*50565INSULATION,OVEN BACK & TOP
*50564CLIP-WIRE
*505685303211311 Frigidaire Refrigerator Screw
*50566INSULATION,TOP & SIDES
*50567SPRING-OVEN DOOR
*50569WCI 5304400423
3WCI 5303317132
6WCI 08012158
6GLIDE-OVEN RACK
6WCI 3201495
6GLIDE-BROILER RACK
7WCI 5303298313
7Hinge Assy,LH lower
7Hinge Assy,oven door ,RH upper
7Hinge Assy,oven door ,LH upper
8WCI 318133600
8WCI 318136500
9WCI 5303317977
10WCI 5303317976
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
25WCI 5303317712
275303284616 Frigidaire Range Bulb Clip Thermostat
36FLUE
36WCI 318076801
36WCI 5303317121
38WCI 5303317128
39WCI 5303317120
39CLAMP-POWER CORD
39WCI 5303295308
50TUBE-VENT
56SCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT ILLUSTRATED
56CAP-END BOTTOM,LH
56WCI 318028200
56WCI 318034600
56TRIM-BODYSIDE,LH
56TRIM-BODYSIDE,RH
56TRIM CENTER
56CAP-END BOTTOM,RH
83WCI 318109500
85WCI 5303317125
85SPRING-OVEN DOOR,UPPER
85SLEEVE-SPRING (2)
85WCI 5303317711
85WCI 5303317126
97WCI 5303317131
97WCI 812T007F02
97WCI 5303317130
136WCI 5303317129
158SEAL-DOOR,BLACK ,TOP BROILER
158SEAL-SIDE,BAKE OVEN
