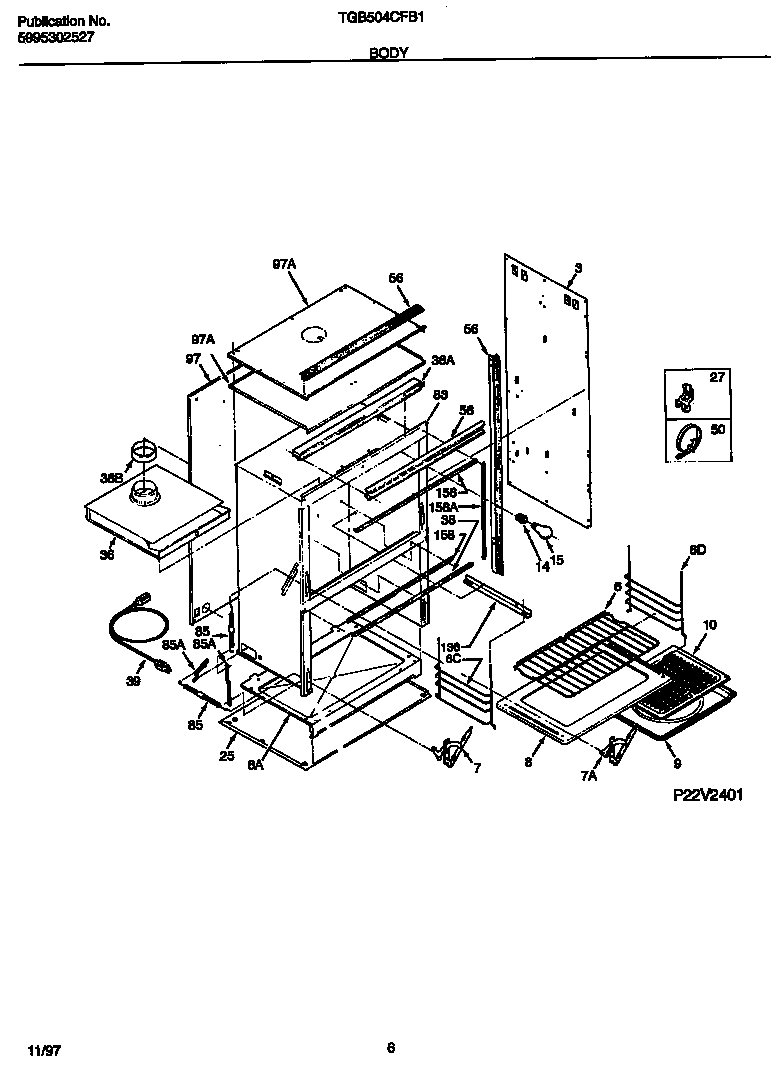

TGB504CFB1 04 – BODY

TGB504CFB1 04 – BODY

Written by

in

TGB504CFB1 04 – BODY

Products

PositionProduct
*88663INSULATION,OVEN BACK & TOP
*88666SPRING-OVEN DOOR
*88656TRIM-BODYSIDE,LH
*88657CAP-END BOTTOM,RH
*88658CAP-END BOTTOM,LH
*88654WCI 5303295308
*88664INSULATION,TOP & SIDES
*88655SCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT ILLUSTRATED
*88660SLEEVE-SPRING (2)
*88653CLAMP-POWER CORD
*88659WCI 318034600
*886675303211311 Frigidaire Refrigerator Screw
*886655303013272 Frigidaire Oven Nut
*886523203010 Frigidaire Clip
*88661CLIP-WIRE
*88662Clip,insulator
*88668WCI 5304400423
3WCI 5303317132
6WCI 08012158
6WCI 3201495
6GLIDE-OVEN RACK
6GLIDE-BROILER RACK
7Hinge Assy,oven door ,LH upper
7Hinge Assy,oven door ,RH upper
7Hinge Assy,LH lower
7WCI 5303298313
8WCI 318133600
8WCI 318136500
9WCI 5303317977
10WCI 5303317976
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
25WCI 5303317712
275303284616 Frigidaire Range Bulb Clip Thermostat
36FLUE
36WCI 5303317121
36WCI 318076801
38WCI 5303317128
39WCI 5303317120
50TUBE-VENT
56WCI 318028200
56TRIM CENTER
56TRIM-BODYSIDE,RH
83WCI 318109500
85WCI 5303317126
85WCI 5303317711
85SPRING-OVEN DOOR,UPPER
85WCI 5303317125
85WCI 318113300
97WCI 5303317131
97WCI 5303317130
97WCI 5304400385
136WCI 5303317129
158SEAL-SIDE,BAKE OVEN
158SEAL-DOOR,BLACK ,TOP BROILER
