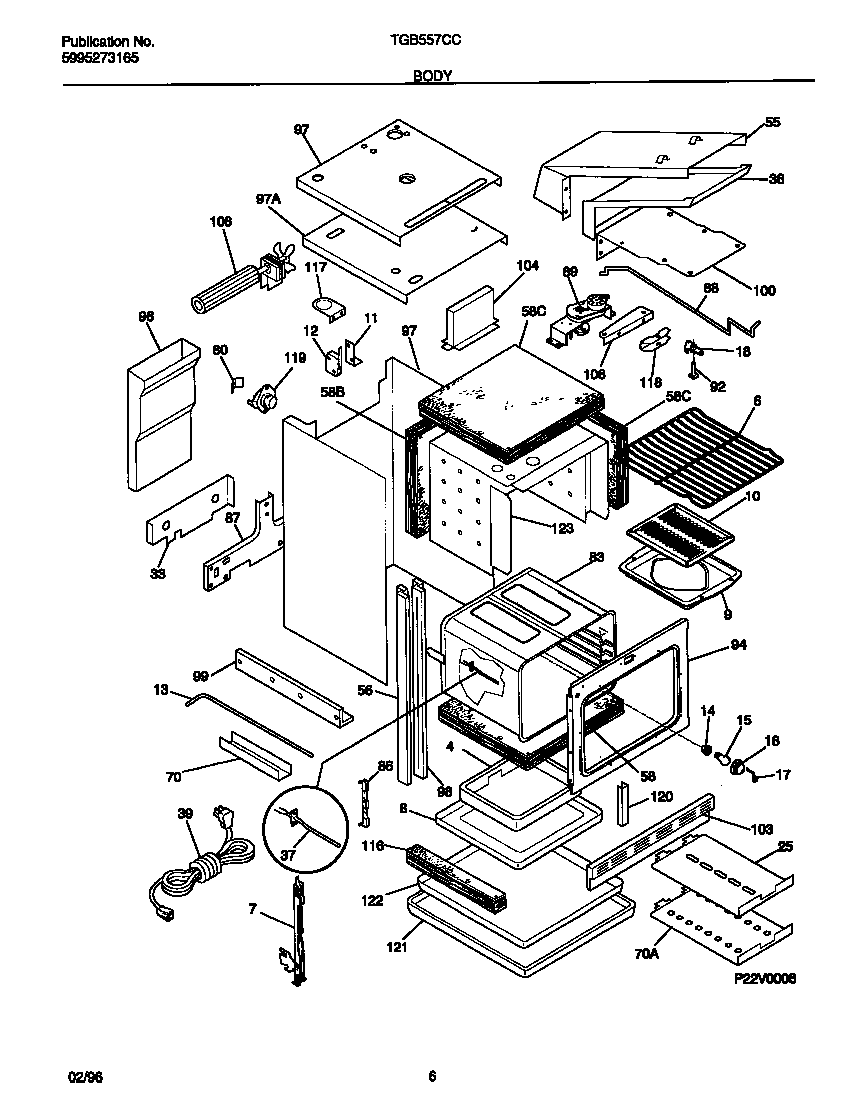

TGB557CCS1 04 – BODY

TGB557CCS1 04 – BODY

Written by

in

TGB557CCS1 04 – BODY

Products

PositionProduct
*402895300803416 Frigidaire Dishwasher Screw
*402863131903 Frigidaire Door/Drawer Bumper
*402915304464772 Frigidaire Refrigerator Wire Tie
*40288SHIELD-BODYSIDE
*4028508002868 Frigidaire 0 Screw Assembly
*40287WCI 5303210709
*40290WCI 5303308447
4WCI 5303280375
6WCI 5303299366
7WCI 316009400
8PANEL-OVEN BOTTOM
9WCI 5303310521
10WCI 5303310520
11WCI 5303308448
12SWITCH – OVEN LIGHT
13WCI 3202077
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
25WCI 5303210706
33WCI 5303302719
36WCI 3203725
37PROBE-OVEN TEMP
39WCI 5303308453
55SHIELD-FLUE
56TRIM, SIDE OUTER (2)
58WCI 5303210708
58INSULATION, OVEN BACK
58AINSULATION, TOP & SIDES
58BINSULATION, OVEN TOP
70SHIELD-HEAT, LOWER
70SHIELD-INSULATION
80WCI 5303301261
83LINER-OVEN ASSY
86WCI 3201631
87WCI 5303308443
88WCI 3016241
89B5303013272 Frigidaire Oven Nut
89AWCI 5303269766
92AXLE – HINGE (2)
94WCI 5303296326
96DUCT-BLOWER
97WCI 5303210683
97AWRAPPER, TOP
97BWRAPPER, BACK & SIDES
98BTRIM-SIDE, INNER, LH
98ATRIM-SIDE, INNER, RH
99318284201 Frigidaire PANEL
100WCI 5303302715
103WCI 5303316734
104ADAPTER-FLUE
106WCI K001324830
108WCI 318073000
116AINSULATION-BOTTOM, SIDES, (2)
116BINSULATION-BOTTOM, TOP
117WCI 5303302718
118WCI 3019069
119SWITCH-THERMO
120WCI 3203688
121WCI 5303305036
122SHIELD, BURNER BOX
123SHIELD-OVEN, TOP & SIDES
