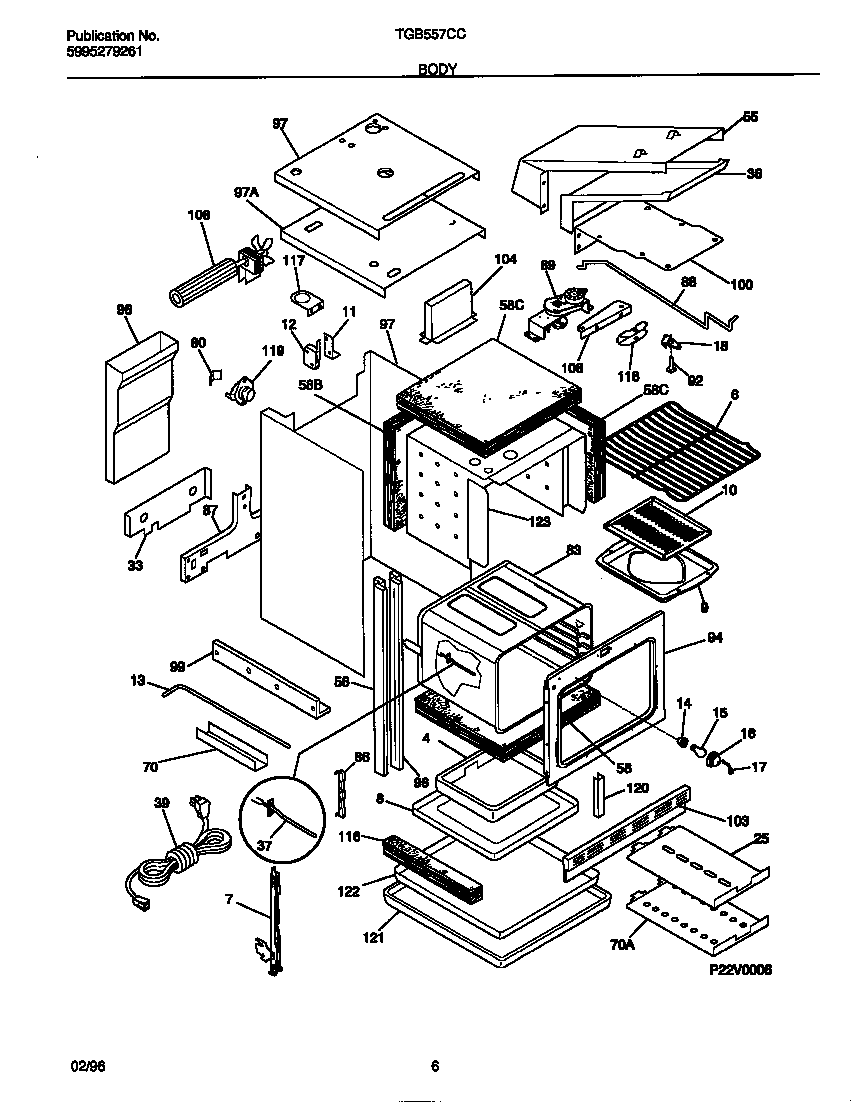

TGB557CCS2 04 – BODY

TGB557CCS2 04 – BODY

Written by

in

TGB557CCS2 04 – BODY

Products

PositionProduct
*83775INSULATION, OVEN BOTTOM
*837663131903 Frigidaire Door/Drawer Bumper
*837825304500008 Frigidaire Oven Screw
*837675304513507 Frigidaire Bushing Assembly
*83771WCI 318123600
*83777WCI 5303317978
*83773ANGLE-BURNER BOX
*83768WCI 3201881
*83765WCI 3018802
*837795300803416 Frigidaire Dishwasher Screw
*83769WCI 318108900
*83770WCI 318119300
*83772SHIELD, BURNER BOX
*837765304464772 Frigidaire Refrigerator Wire Tie
*837785303211311 Frigidaire Refrigerator Screw
*8378108002868 Frigidaire 0 Screw Assembly
*83774WCI 5303210709
2WRAPPER, TOP
2WCI 5303210683
4WCI 5303280375
6WCI 5303299366
8WCI 318121400
9WCI 5303317977
10WCI 5303317976
11WCI 5303308448
12BFASTENER, SWITCH
12ASWITCH – OVEN LIGHT
12CWCI 5303308447
13BWCI 3204114
13AWCI 3202077
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
25SHIELD-HEAT, LOWER
28CLIP-WIRE
33WCI 5303302719
36WCI 3203725
37PROBE-OVEN TEMP
39WCI 5303308453
41WCI 3019063
55SHIELD-FLUE
56WCI 5303318690
56WCI 5303308459
58INSULATION, TOP & SIDES
58WCI 5303210708
58INSULATION, OVEN BACK
58INSULATION, OVEN TOP
70WCI 318071410
70SHIELD-INSULATION
71WCI 5303308476
76WCI 318056130
80WCI 5303301261
81WCI 3201632
83WCI 318089401
86WCI 3201631
87WCI 5303308443
88WCI 3016241
89AWCI 5303269766
89B5303013272 Frigidaire Oven Nut
91AWCI 3019069
91BHOUSING-DOOR LATCH
92AXLE – HINGE (2)
96DUCT-BLOWER
97WCI 318066800
98BWCI 318029401
98AWCI 318029400
99318284201 Frigidaire PANEL
100WCI 5303302715
102WCI 3203688
103WCI 5303316734
104ADAPTER-FLUE
106WCI K001324830
108WCI 318073000
116AINSULATION-BOTTOM, SIDES, (2)
116BINSULATION-BOTTOM, TOP
117WCI 5303302718
118WCI 5303308461
119SWITCH-THERMO
121WCI 5303305036
122WCI 5303210706
126Clip,insulator
