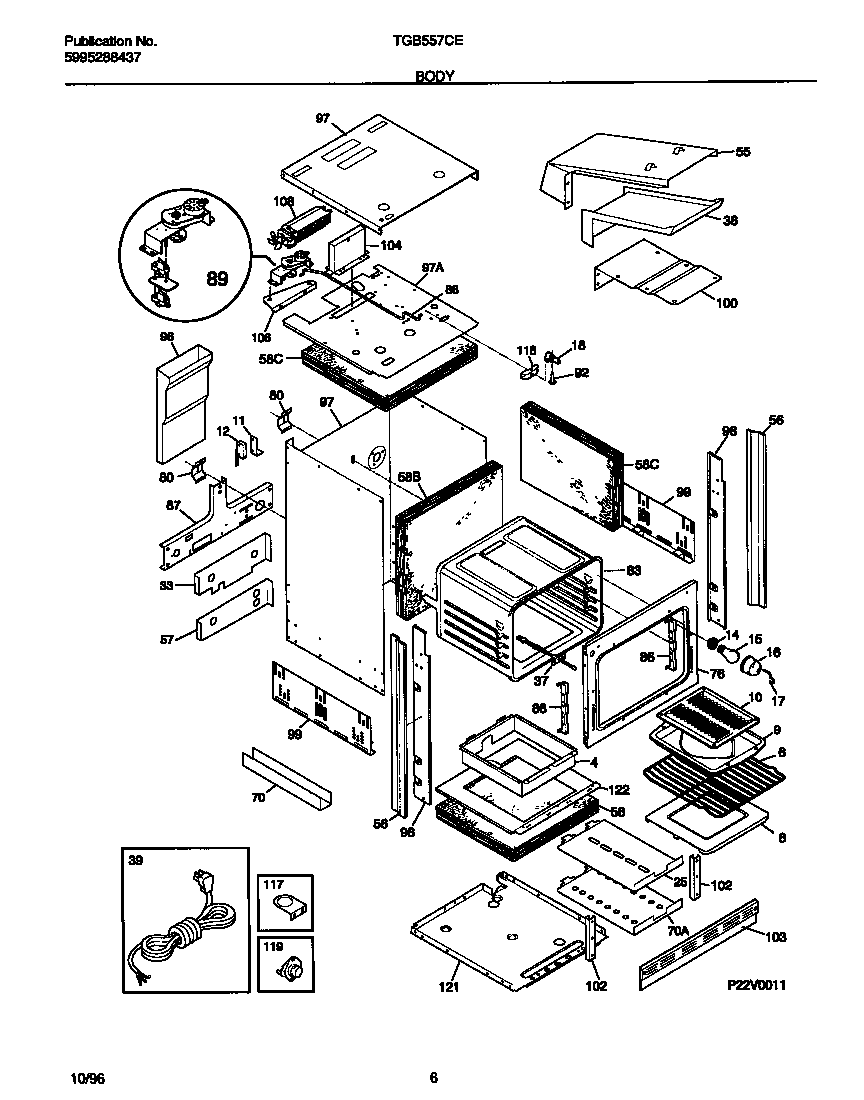

TGB557CEB1 04 – BODY

TGB557CEB1 04 – BODY

Written by

in

TGB557CEB1 04 – BODY

Products

PositionProduct
*62863WCI 5303210709
*628515304513507 Frigidaire Bushing Assembly
*62850WCI 3201632
*62860WCI 318108900
*62853WCI 3019069
*62852WCI 3019063
*62864SHIELD, BURNER BOX
*62849HOUSING-DOOR LATCH
*62862ANGLE-BURNER BOX
*62868WCI 5303317978
*62856WCI 3018802
*62858WCI 3201881
*62861WCI 318119300
*628575304500008 Frigidaire Oven Screw
*628483131903 Frigidaire Door/Drawer Bumper
*62854CLIP-WIRE
*628655303211311 Frigidaire Refrigerator Screw
*628675304464772 Frigidaire Refrigerator Wire Tie
*628595303013272 Frigidaire Oven Nut
*628665300803416 Frigidaire Dishwasher Screw
*62855Clip,insulator
4WCI 5303280375
6WCI 5303299366
8WCI 318121400
9WCI 5303317977
10WCI 5303317976
11Bracket,light switch
12318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
25SHIELD-HEAT, LOWER
33WCI 5303302719
36WCI 3203725
37PROBE-OVEN TEMP
39WCI 5303308453
55SHIELD-FLUE
56TRIM-BODYSIDE
57WCI 5303308476
58AINSULATION, TOP & SIDES
58WCI 5303210708
58INSULATION, OVEN BACK
58BINSULATION, OVEN TOP
70SHIELD-INSULATION
70WCI 318071410
76WCI 318056133
80WCI 5303301261
83WCI 318089401
86WCI 3201631
87WCI 5303308443
88WCI 3016241
89WCI 5303269766
92AXLE – HINGE (2)
96DUCT-BLOWER
97WCI 318102400
97BWCI 318145000
97AWCI 318066800
98AWCI 318029401
98BWCI 318029400
99318284201 Frigidaire PANEL
100WCI 5303302715
102WCI 3203688
103WCI 5303316735
104ADAPTER-FLUE
106WCI K001324830
108WCI 318073000
117WCI 5303302718
118WCI 5303308461
119SWITCH-THERMO
121WCI 318145001
122WCI 5303210706
