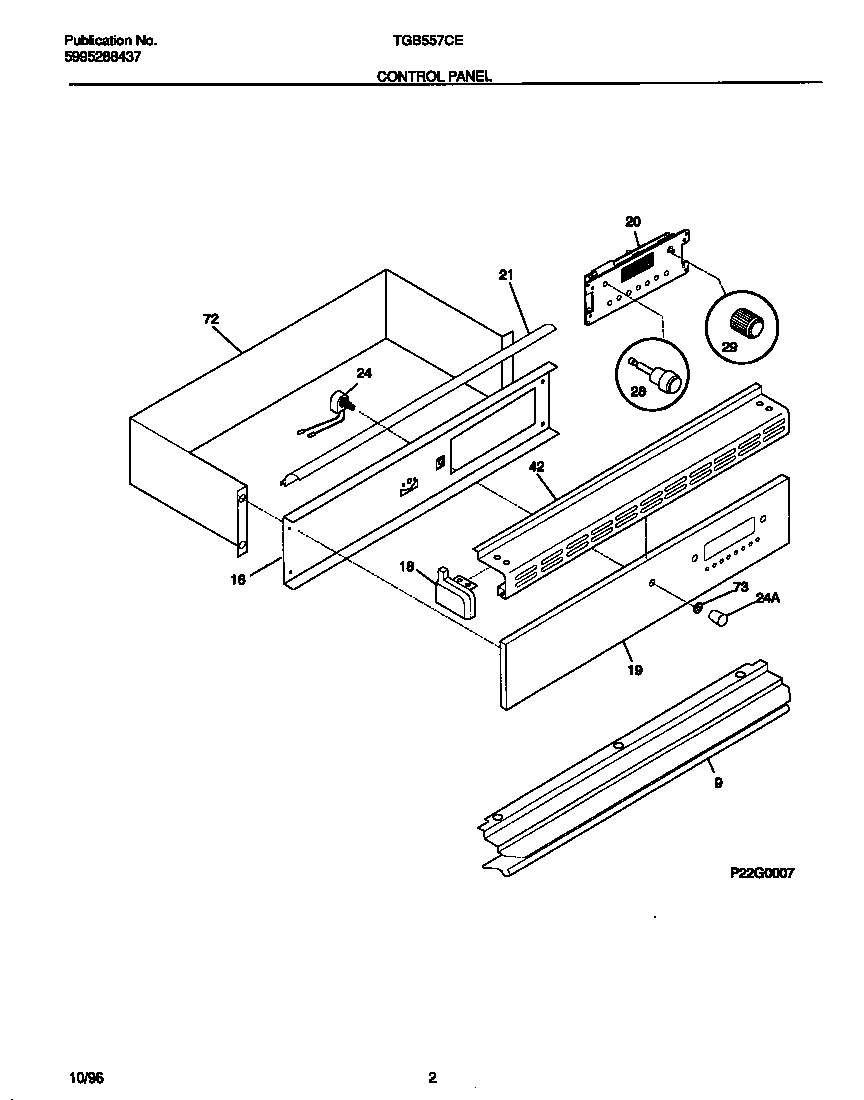

TGB557CES1 02 – CONTROL PANEL

TGB557CES1 02 – CONTROL PANEL

Written by

in

TGB557CES1 02 – CONTROL PANEL

Products

PositionProduct
*62841WCI 5303300414
*62842216858001 Frigidaire Refrigerator Screw
*628435304414648 Frigidaire Oven Screw
*628405303211311 Frigidaire Refrigerator Screw
*62845WCI 5303316744
9Trim,center vent ,white
16WCI 318022300
18WCI 5303310391
18WCI 5303310389
19WCI 318000112
20WCI 318010200
21TRIM-CANOPY/SHIELD
24BWCI 5303302303
24WCI 5303299547
24AWCI 318090001
28Shaft,push button ,black ,clock/timer/EOC
29KNOB-CLOCK/TIMER, WHITE
42WCI 5303308462
72WRAPPER-SHIELD
