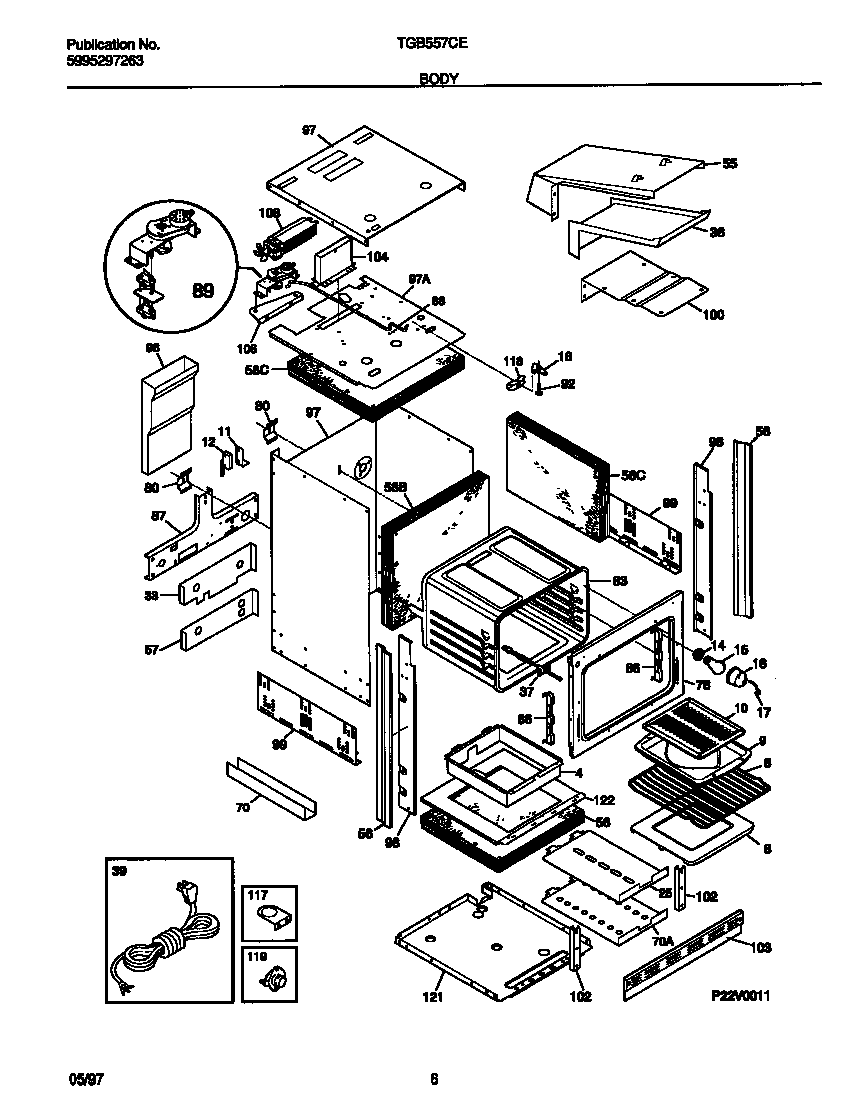

TGB557CES2 04 – BODY

TGB557CES2 04 – BODY

Written by

in

TGB557CES2 04 – BODY

Products

PositionProduct
*031435303211311 Frigidaire Refrigerator Screw
*031273131903 Frigidaire Door/Drawer Bumper
*031315304500008 Frigidaire Oven Screw
*03138WCI 318119300
*03141INSULATION, OVEN BOTTOM
*03142SHIELD, BURNER BOX
*03133WCI 3201632
*03134WCI 3201881
*03128HOUSING-DOOR LATCH
*03149WCI 5303321212
*03150PLUG, DOOR LINER
*03130WCI 3018802
*031445300803416 Frigidaire Dishwasher Screw
*03139ANGLE-BURNER BOX
*0313608002868 Frigidaire 0 Screw Assembly
*03129Clip,insulator
*03140WCI 5303210709
*03147316021109 Frigidaire Oven Screw
*03126CLIP-WIRE
*03132SCREW, 8 X 5/8, SPARK MODULE
*03146WCI 5303311528
*031355303013272 Frigidaire Oven Nut
*03148WCI 5303317978
*03137WCI 318108900
*031455304464772 Frigidaire Refrigerator Wire Tie
4WCI 5303280375
6WCI 5303299366
8WCI 318121400
9WCI 5303317977
10WCI 5303317976
11Bracket,light switch
12318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18ALATCH-DOOR
18BWCI 3019069
25SHIELD-HEAT, LOWER
33WCI 5303302719
36WCI 3203725
37PROBE-OVEN TEMP
39AWCI 5303308453
39B5304513507 Frigidaire Bushing Assembly
55SHIELD-FLUE
56WCI 5303320422
56WCI 318145508
56WCI 5303308459
57WCI 5303308476
58WCI 5303210708
58INSULATION, OVEN BACK
58AINSULATION, TOP & SIDES
58BINSULATION, OVEN TOP
70WCI 318071410
70SHIELD-INSULATION
76WCI 318056133
80WCI 5303301261
83WCI 318089401
86WCI 3201631
87WCI 5303308443
88WCI 3016241
89B3201861 Frigidaire Screw
89AWCI 5303269766
92AXLE – HINGE (2)
96DUCT-BLOWER
97AWCI 318066800
97WCI 318102400
97BWCI 318145000
98AWCI 318029401
98BWCI 318029400
99318284201 Frigidaire PANEL
100WCI 5303302715
102WCI 3203688
103WCI 5303316734
104ADAPTER-FLUE
106WCI K001324830
108WCI 318073000
117WCI 5303302718
118WCI 5303308461
119WCI 5303326252
122WCI 5303210706
