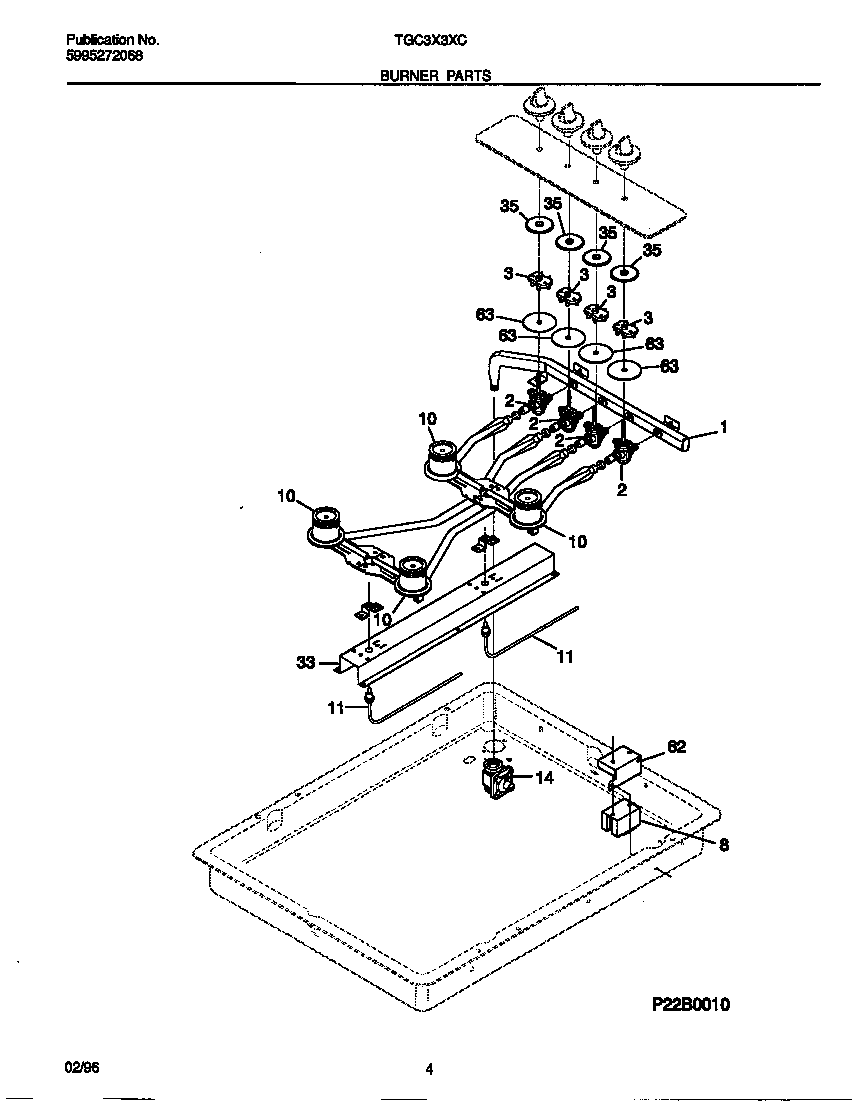

TGC3X3XCW1 03 – BURNER PARTS

TGC3X3XCW1 03 – BURNER PARTS

Written by

in

TGC3X3XCW1 03 – BURNER PARTS

Products

PositionProduct
*73643SCREW,TRUSS HEAD,8-18 X 0.375
*73642HARNESS-WIRING, MAIN
*736445304480396 Frigidaire Screw
1WCI 5303287976
2B316048200 Frigidaire Oven Screw
2AVALVE-TOP BURNER, (4), WITH MTG SCREWS
3SWITCH-IGNITOR
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
10DWCI 3201435
10CWCI 3201434
10AWCI 3201432
10BWCI 3201433
11BIGNITER – GAS (2)
11AIGNITOR-TOP BURNER, 24“, (2)
145308007974 Frigidaire Pressure Regulator
33WCI 3201449
35WCI 5303307978
62WCI 3201439
63SEAL-SWITCH
